- Page 1 PPC/EPC-A8-70-HB-C User Manual Release 1.0 www.chipsee.com...
- Page 2 Chipsee Products Naming Rules CS10600T070E-C211 CS10600T070P-C211 Chipsee Product Abbreviate Horizontal Resolution Means 800 Pixel Means 1024 Pixel Means 1280 Pixel www.chipsee.com...
- Page 3 Vertical Resolution Means 480 Pixel Means 600 Pixel Means 768 Pixel Means 800 Pixel T(F) Product based on TI(FreeScale) CPU LCD dimension Means 5.0 Inch Means 7.0 Inch Means 8.0 Inch Means 9.7 Inch Means 10.1 Inch Means 10.4 Inch...
-
Page 4: Hardware Features

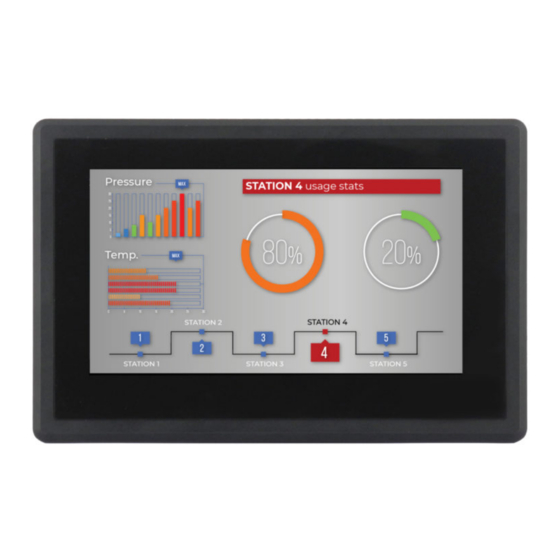

Hardware Features Key features: Sitara Core AM3354ZCZ100 ARM Cortex A8, 1GHz 512MB DDR3 eMMC Storage uSD card, supports up to 32GB SDHC 7.0 Inch LCD,1024 x 600 Pixel Resolution Display High Brightness,500nit C: Capacitive Touch (Five-Point) Touch R: Resistive Touch (Four-Wire) 2 x USB 2.0 Host... - Page 5 1 Channel * Can Customized to 2 Channel GPIO On Board WIFI/BT, Optional. Not mount on WiFi/BT by default Power Input 6~42V DC Current @ 12V 600 mA max Power Consumption 6W Typical Working -20°C to +70°C Temperature Android, TI Linux, Debian, Angstrom CS10600T070E-C211:190 x 107.8 x 29mm...
- Page 6 Figure 1 Top View Figure 2 Back View www.chipsee.com...
- Page 7 CS10600T070P-C211 Figure 1 Top View www.chipsee.com...
-
Page 8: Power Input Connector
Figure 2 Back View Power Input Connector The product CS10600T070E/CS10600T070P uses a wide range of power Input: 6~42V. And the total power consumption is normally around 6W. The Power Input Connector is 3 pin 3.81mm Screw Terminal connector as Figure 5 Power Input Connector and Figure 4 Back View. - Page 9 The character “G” means system Ground. Table 2 has detailed descriptions about the connector definition. (a) CS10600T070E (b) CS10600T070P Figure 5 Power Input Connector Table 1 Power Input Pin Definition: Pin Number Definition Description Connect to DC Power Positive...
- Page 10 Pin 3 Ground Connect to Power System Ground Please note: The system ground “G” has been connected to power Negative “–” on board. Capacitive Touch Product CS10600T070E/CS10600T070P uses capacitive touch, As Figure 6 shows. Figure 6 Capacitive Touch Connector Attention: Capacitive touch is very sensitive to power noise.
- Page 11 PC. If the user’s power adapter isn’t good enough, there’s another effective method to solve this problem: Make sure the CS10600T070E-C211 Power Input Connector P6 Pin 3 really connect to user “Power System Ground”.
- Page 12 Figure 7 RS232 / RS485 / CAN Connector As for the definition of every Pin, please refer to Table 3. This product can be customized to inherit two CAN channels. If two CAN channels are needed, please contact us.
-
Page 13: Usb Connector
UART0 of CPU,RS232 RXD Signal System +5V Power Output, No more than Pin 12 1A Current output The RS485 and CAN channels may be customized by Chipsee to the following arrangements: 2 x RS485, 1 x CAN(Default) 1 x RS485, 2 x CAN... - Page 14 (a) CS10600T070E (b) CS10600T070P Figure 8 USB connector Please note: The OTG Connector P14 (USB0) is defined as HOST by default. If it’s needed to be defined as SLAVE (OTG), please Remove 0603 package 0 Ohm resistors R119 R121 as Figure 8 shows.
-
Page 15: Lan Connector
LAN Connector The product CS10600T070E/CS10600T070P features one channel 100Mbit Ethernet. The connector can be found on the PCB labelled as P13 as Figure 9 LAN Connector shows. (a) CS10600T070E (b) CS10600T070P Figure 09 LAN Connector www.chipsee.com... - Page 16 Card As in Figure 10, the uSD card connector is labelled as P5 on the PCB. The device supports uSD cards up to 32GB. (a) CS10600T070E (b) CS10600T070P Figure 11 TF Card (uSD) Connector Please note: The uSD card Slot is...
-
Page 17: Boot Switch
Boot Switch The device features a boot switch which can be used to change the boot sequence. It is defined as SW2 on the PCB as shown in Figure 4 Back View and Figure 11 Boot Switch. The position can either be eMMC or SD. -
Page 18: Audio Connector
Audio Connector As Figure 12 shows, the device has one Audio Input (“Line-in”) and one Audio (“Line-out”) Output. (a) CS10600T070E (b) CS10600T070P Figure 12 Audio Connector WiFi+BT www.chipsee.com... - Page 19 The product CS10600T070E/CS10600T070P features one WiFi+BT. As figure 13 shows. It uses Realtech RTL8723 which integrates WiFi and BT. (a) CS10600T070E (b) CS10600T070P Figure 13 WiFi+BT module Please note: The WiFi/BT module is NOT Mounted by default. If the user needs WiFi/BT, please contact us.
-
Page 20: Expansion Connector
Expansion Connector There is an Expansion Connector labelled as P18 on the PCB as figure 14 shown, it is connected to CPU GPIO/ADC/SPI/I2C signals。The connector is not mounted by default. Figure 14 Expansion Connector As for the definition of every pin, please refer to Table 4。... - Page 21 GPMC_A6 GPMC_A8 SPI0_D1 SPI0_D0 SPI0_CS0 16 SPI0_CLK AIN4 AIN5 AIN6 AIN7 Measurements and Mounting How to Mount the Embedded PC The dimensions for CS10600T070E-C211 can be found on the Figure 15. The CS10600T070E can be mounted using the 4 screw holes on the PCB as shown in Figure 15.
- Page 22 Figure 15 CS10600T070E-C211 Dimensions How to Mount the Panel PC The dimensions for CS10600T070P-C211 can be found on the Figure 16. www.chipsee.com...
- Page 23 Figure 16 CS10600T070P-C211 Dimensions As figure 17 shows, the unit shall be mounted from the front pushed inside the panel. The recommended maximum thickness of the panel material is 8mm. Make sure the Panel PC is configured correctly. The Boot Switch is sitting inside the housing.
- Page 24 www.chipsee.com...
-
Page 25: How To Get Support
Figure 17 Push the PC into the Panel Figure 18 Mounting fixture How to Get Support Chipsee assumes no responsibility for any errors, which may www.chipsee.com... - Page 26 Furthermore, Chipsee reserves the right to alter the hardware, software, and/or specifications detailed herein at any time without notice, and does not make any commitment to update the information contained herein. Chipsee products are not authorized for use as critical components in life support devices or systems.
