Installation - Code 3 C3100 Installation & Owner's Manual

Installation:

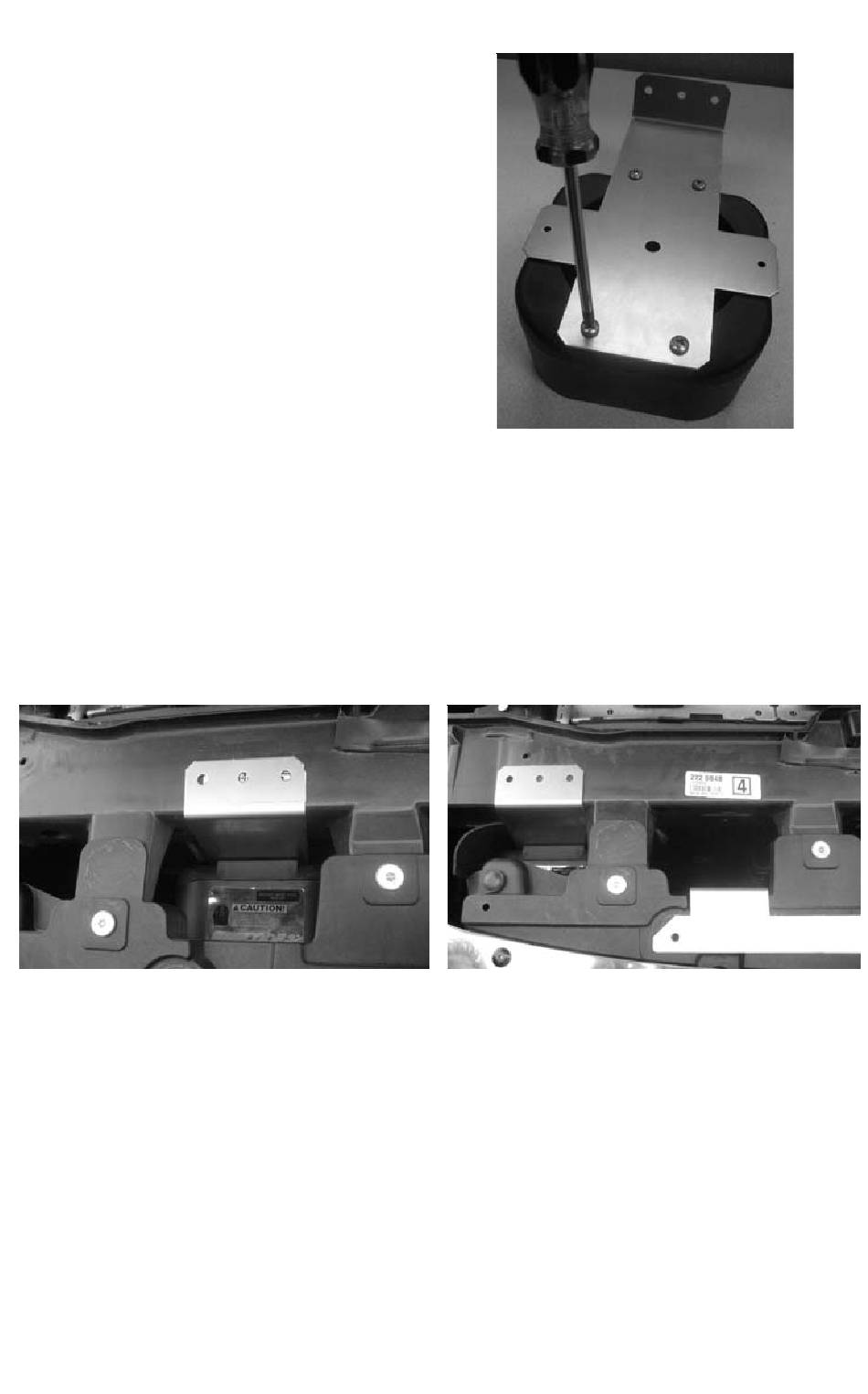

Mount the speaker to the bracket using
the mounting hardware supplied (Fig. 1).
The button head cap screw must be
installed in the center hole.
WARNING! The speaker wires must exit
through the bottom of the speaker. The
speaker wire hole is also the drainage
hole. Improper mounting will damage the
driver and void the warranty.
To position the assembly for attachement
it must be pushed up through an opening
in the spray skirt underneath the radiator
area.
Place the speaker assembly one space over from the hood latch on the
passenger side (see Fig. 2) and mark holes for drilling.
In the event that grille lights are also being mounted, the speaker assembly
should be placed 2 spaces over from the hood latch on the passenger side
(see Fig. 3), mark holes for drilling.
Fig 2
Drill 3 holes (No.8 drill or 0.199") and bolt the speaker in place using the
thread cutting hardware provided.
Extend the BLUE (Positive) and WHITE (Negative) speaker wires to the
siren amplifier and connect them as shown in the amplifier's instructions and
test the siren for proper operation.
Fig 1
Fig 3
