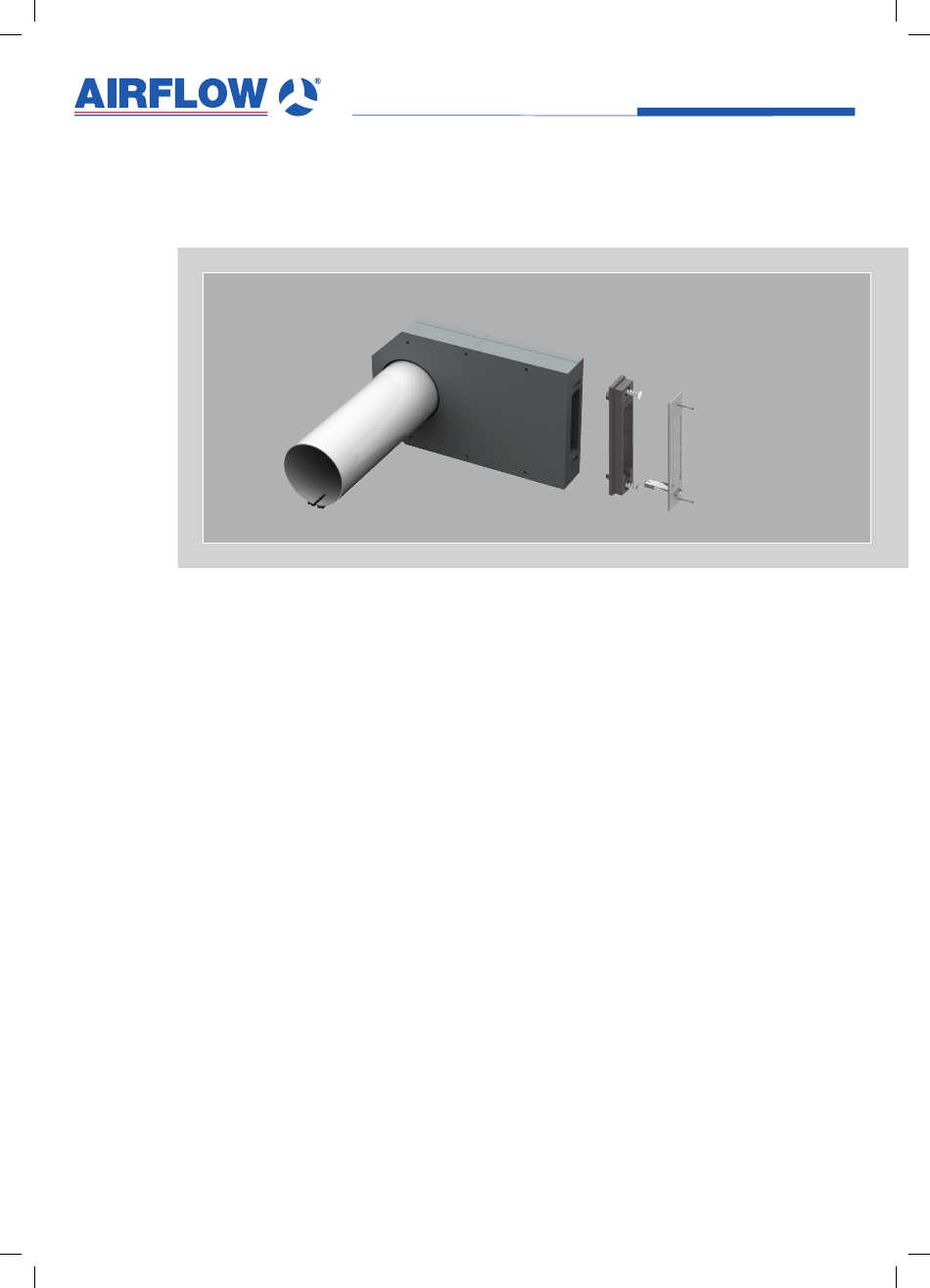

- Page 1 Installation and Operating Instructions Uno hab Ext. Wall Ins. Vent Kit INSTALLATION AND OPERATING INSTRUCTIONS External wall insulation vent kit © Airflow we reserve the right to make changes without prior notice...
- Page 2 Installation and Operating Instructions Uno hab Ext. Wall Ins. Vent Kit © Airflow we reserve the right to make changes without prior notice...
-
Page 3: Table Of Contents
Condensate drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 12 © Airflow... -
Page 4: Chapter 1. Safety
The same applies for the mobile use of fans (vehicles, aircraft, ships, etc.). Usage under these conditions is only possible with approval from Airflow, as the standard version is not suitable in this case. – Improper, prohibited use: Improper, prohibited use: Any use other than the intended use is not permitted! The conveying of solid matter or solid matter content >... -
Page 5: Chapter 2. General Instructions
Warranty claims – exclusion of liability All versions of this documentation must be observed, otherwise the warranty shall cease to apply. The same applies to liability claims against Airflow. The use of accessory parts, which are not recommended or offered by Airflow, is GENERAL not permitted. -
Page 6: Chapter 3. Scope Of Delivery
4x Stainless steel screw (Ø 6,4 mm) î Protective cover î 2x for inside and outside EPP fixing wedges Ø Ø ö Dimensions Fig.3 All dimensions in mm © Airflow we reserve the right to make changes without prior notice... -
Page 7: Chapter 4. Positioning / Assembly
The plaster frame allows for tolerance compensation. A minimum height of 20 mm is recommended for the plaster frame. © Airflow we reserve the right to make changes without prior notice... -
Page 8: Positioning (Core Drilling)
4 . Determine dimensions for wall installation sleeve and soffit element (see chap 4.0 Installation overview soffit element). Note interfering contours! The shutter rail or the like must pass over the wall grille, see Fig. 4. ATTENTION © Airflow we reserve the right to make changes without prior notice... -
Page 9: Installation Step Internal Wall
2. Pull seal onto outside of wall installation sleeve (Fig.11) . 3. Shorten soffit channel to the desired length. Fig.11 NOTE Note the installation requirements for the soffit channel! (see chapter 4.0 Installation overview soffit element) © Airflow we reserve the right to make changes without prior notice... - Page 10 8. Apply thin glue/sealing beads to the plaster frame (Fig. 14). 9. Connect plaster frame to the soffit element and screw in with the enclosed insulation fixings (Fig. 14/15). Fig.14 Fig.15 10. Back-foam the soffit element. © Airflow we reserve the right to make changes without prior notice...
- Page 11 14. Remove any protruding plaster frame with multitool (Fig. 17). Fig.17 15. Insert condensate pan (Fig. 18). Fig.18 16. Mount wall grille (Fig. 19). The screws are included. Fig.19 © Airflow we reserve the right to make changes without prior notice...
-
Page 12: Chapter 5. Note Condensate Drainage
The protrusion of the condensate drain in the lower EPP half shell allows free condensate drainage in the soffit channel, from which the condensate is discharged to the outside via the condensate pan. © Airflow we reserve the right to make changes without prior notice... - Page 13 Installation and Operating Instructions Uno hab Ext. Wall Ins. Vent Kit Notes: © Airflow we reserve the right to make changes without prior notice...
