    INDEX INTRODUCTION POWER UNIT CHARACTERISTICS CHARACTERISTICS OF FLEXIBLE SHAFT AND POKERS GENERAL AND SPECIFIC SAFETY RULES 4.1 WORK AREA 4.2 PERSONAL SAFETY 4.3 TOOL USE AND CARE 4.4 SERVICE 4.5 SPECIFIC SAFETY RULES USAGE CONDITIONS OPERATION AND MAINTENANCE 6.1 BEFORE START 6.2 GETTING STARTED 6.3 SHAFT CONECTION TO POWER UNIT 6.4 POKER CONNECTION TO FLEXIBLE SHAFT...
  • Page 4: Introduction

    1 INTRODUCTION Thank you for trusting the Tomahawk brand. For the maximum performance of the equipment, we recommend to read carefully the safety recommendations, maintenance, and usage listed in this manual Defective parts should be replaced immediately to avoid major problems.
  • Page 6: Power Unit Characteristics

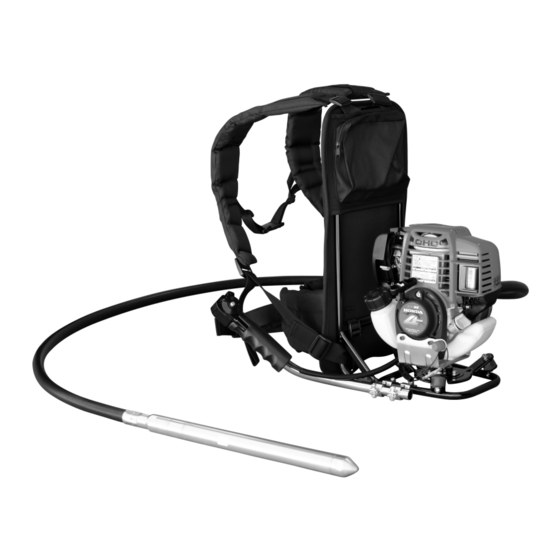

    POWER UNIT CHARACTERISTICS HONDA GX-35 BACKPACK MODEL VIB-BAR TYPE/DISPLACEMENT 4 STROKE / 35,8 CC MAX OUTPUT/R.P.M. 1,6 HP / 7000 R.P.M. CARBURETTOR DIAPHRAGM TYPE TRANSISTORS IGNITION MAGNETO STARTING COIL FUEL 89 Octane Gas FUEL TANK 700 CC CAPACITY 7lbs (WITHOUT WEIGHT CLUTCH) SPEED.
  • Page 7: General And Specific Safety Rules

    NUT TO CONNECT TO THE MOTOR LEFT THREADS HOSE END REINFORCEMENT HEX. DRIVER 25MM DIAM. HOSE LEFT THREADS GENERAL AND SPECIFIC SAFETY RULES WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. 4.1 WORK AREA KEEP your work area clean and well lit. Cluttered benches and dark areas invite accidents. DO NOT OPERATE power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
  • Page 8: Specific Safety Rules

    4.5 SPECIFIC SAFETY RULES For your own safety, as well as for the others one, and in order not to cause any damage to that are explained as follows: this equipment, please read carefully the instructions 1.- For the proper use of this device, please assure that the operator has been correctly informed of the content of this manual before using it.
  • Page 9: Getting Started

    Check the oil reservoir of the motor is full (see engine manual) in the 4-stroke engine (SAE10W40). Check all the bolts are well tightened. Start the motor, regulate the speed with the accelerator until it reaches a good vibration. When a defect or a malfunction has been detected, endangering the use of this machine or not, stop the work and make the correspondent maintenance to avoid any danger or bigger damage.
  • Page 10: Dimensions Of Wear For Diameters And Lengths Of The Pokers

    DIMENSIONS OF WEAR FOR DIAMETERS AND LENGTHS OF THE POKERS DIAMETER LENGHT MODEL (mm) (mm) TVIB10 23,5 (25) 310 (220) TVIB16 45,5 (48) 355 (360) The minimum dimensions are bold printed. The dimensions into brackets are the original dimensions. Replace the housing when reach the minimum diameter. Replace the tip when reach the minimum length.
  • Page 11: Storage

    of the shaft, The recommended quantity is 25 g per metre. Do not overlubricate, it could cause the grease penetrate into the poker, Do not clean the shaft with solvent. The grease recommended is of the brand KLÜBER LUBRICATION with the following characteristics: Dropping point s/ DIN 51801/1 (ºC) ..........
  • Page 12: Locating Malfunctions Of Flexible Shaft And Pockers

    In no case the warranty will cover a malfunction due to improper usage of the equipment. 2. In all warranty requests THE MACHINE MUST BE SENT TO Tomahawk. or to an AUTHORIZED SHOP, always including the complete address and name of the consignee.
  • Page 13: Recomendations Of Use Of Concrete Vibrator

    11 RECOMENDATIONS OF USE OF CONCRETE VIBRATOR Choose the type of vibrator adequate to the dimensions of the structure to vibrate, the distance among the reinforcement and the slump cone. It is recommendable to have an additional concrete vibrator. Before starting check that the concrete vibrator is in good use and it works correctly. Use the means of safety and protection.
