Summary of Contents for Tomahawk TSCP8
- Page 2 READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. • Do not disconnect power by pulling cord. To disconnect, grasp the plug, not the cord. •...
-
Page 3: Table Of Contents
Please note: Due to improvements and changes in the 24 1/2” 62.2 cm Width equipment the illustrations shown may be different from the actual machine. Height 41” 104.1 cm (866) 577-4476 Toll Free: Email: Sales@tomahawk-power.com 65.8 kg Total Weight 150 lbs. Page 3... -
Page 4: Safety Guidelines
Read and understand all operating instructions before operating this equipment. Death or serious injury can result if this machine is used improperly. Safety Guidelines Eye and ear protection must be worn at all times while the Floor Stripper is in use. During normal operation, sound pressure levels less than 85 dBA. -
Page 5: Operating Instructions

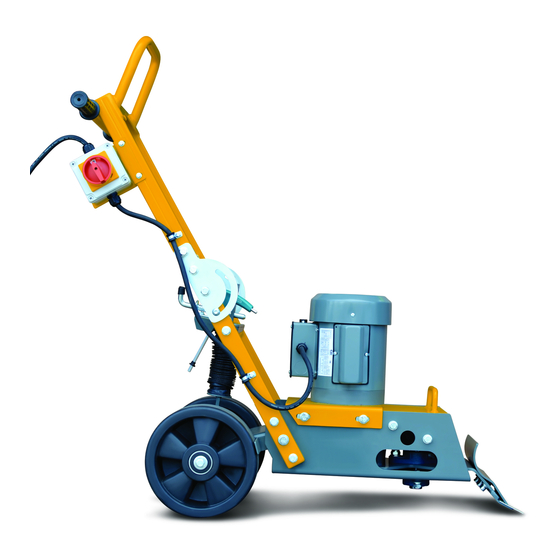

J) 2 Position Handle Bracket (normal, aggressive) Figure 2 About the Tomahawk Floor Stripper: • The Floor Stripper is a low maintenance unit, designed to remove vinyl tile (Note: for ceramic tile a special blade is required), industrial build-ups, adhesives and carpet from flat horizontal surfaces using a rapid action, oscillating blade. -
Page 6: Changing The Blade
Starting the Machine: • Make sure the machine is clear of walls and/or obstructions, tilt it back slightly to shift the weight onto the wheels, then turn the switch to ON. (Figure 3) • Do not force the machine. • Shut the machine OFF when repositioning for another pass. -
Page 7: Dust And Crystalline Silica Warning
DUST AND CRYSTALLINE SILICA WARNING Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust, mists and fumes containing chemicals known to cause serious or fatal injury or illness, such as respiratory disease, cancer, birth defects or other reproductive harm. If you are unfamiliar with the risks associated with the particular process and/or material being cut or the composition of the tool being used, review the material safety data sheets and/or consult your employer, the manufacturers/suppliers, governmental agencies such as OSHA and NIOSH and other sources... -
Page 8: Machine Safety Symbol Label Reference
Safety Symbols This symbol means that the guards must remain in place while the engine/motor on the machine is running because death or personal injury may result. (Yellow background with black pictogram and black outline) This symbol means that there are moving parts and if feet/fingers/digits are inserted under any edge of the cutter/grinder/saw cover while the engine/motor on the machine is running that personal injury and loss of foot/fingers/digits may result. - Page 9 Safety Symbols This symbol means that the Operator’s, owners, instruction and/or manufacturer(s) manuals must be read and understood before operating or attempting to operate this electrical, gasoline, diesel or propane powered equipment, failure to do so can result in personal injury and possible death. (Blue background with white pictogram.) This symbol means that proper eye protection must be worn/used during the operation of this equipment.
-
Page 10: Maintenance
Read and follow instruc- Repairs are to be done tions in the engine owner’s by authorized manual. Tomahawk Dealers only. Maintenance Disconnect the power source at the machine and remove blade before performing any maintenance. • All maintenance should be performed regularly and by qualified personnel only. - Page 14 Parallel technology capable for double the power Parallel technology capable for double the power Wheel kits available for more jobsite portability 2 Year Product Warranty 2 Year Product Warranty 2 Year Product Warranty HAVE QUESTIONS? Contact us. We’re here to help! Email us at sales@tomahawk-power.com...
- Page 15 3 Year Engine Warranty & 1 Year Product Warranty 1 Year Product Warranty (866) 577-4476 www.tomahawk-power.com * Visit www.tomahawk-power.com for terms and conditions. Coupon must be redeemed at checkout at www.tomahawk-power.com. Coupon may be subject to change and/or expire at any time, without notice.
