Instructions on the Firmware Upgrade for Bank Note Validators
It may be necessary to update the firmware and adjust the settings of the NC 320, NC 330 and NC 340 bank
note validators if parameters for detecting forged bank notes must be adapted. Introduction of new Euro
bank notes may also make it necessary.
First of all, please check whether a firmware update is necessary. The firmware versions currently valid are
listed below (they appear briefly in the display when the machine is switched on):
NC 320: Display: 320 u4_2 (Firmware validates the 50 Euro bank note, December 2016)
NC 330: Display: 330 u4_0 (Firmware validates the 50 Euro bank note, December 2016)
NC 340: Display: 340 u4_0 (Firmware validates the 50 Euro bank note, December 2016)
If an older version appears in the display, an update is necessary.
To complete the update, you need:
a) The programme to transfer the firmware to the processor in the bank note validator.
b) The firmware as a programme code (cannot be read as text).
The programme for data transfer and the programme code of the machine are provided on the
Olympia homepage.

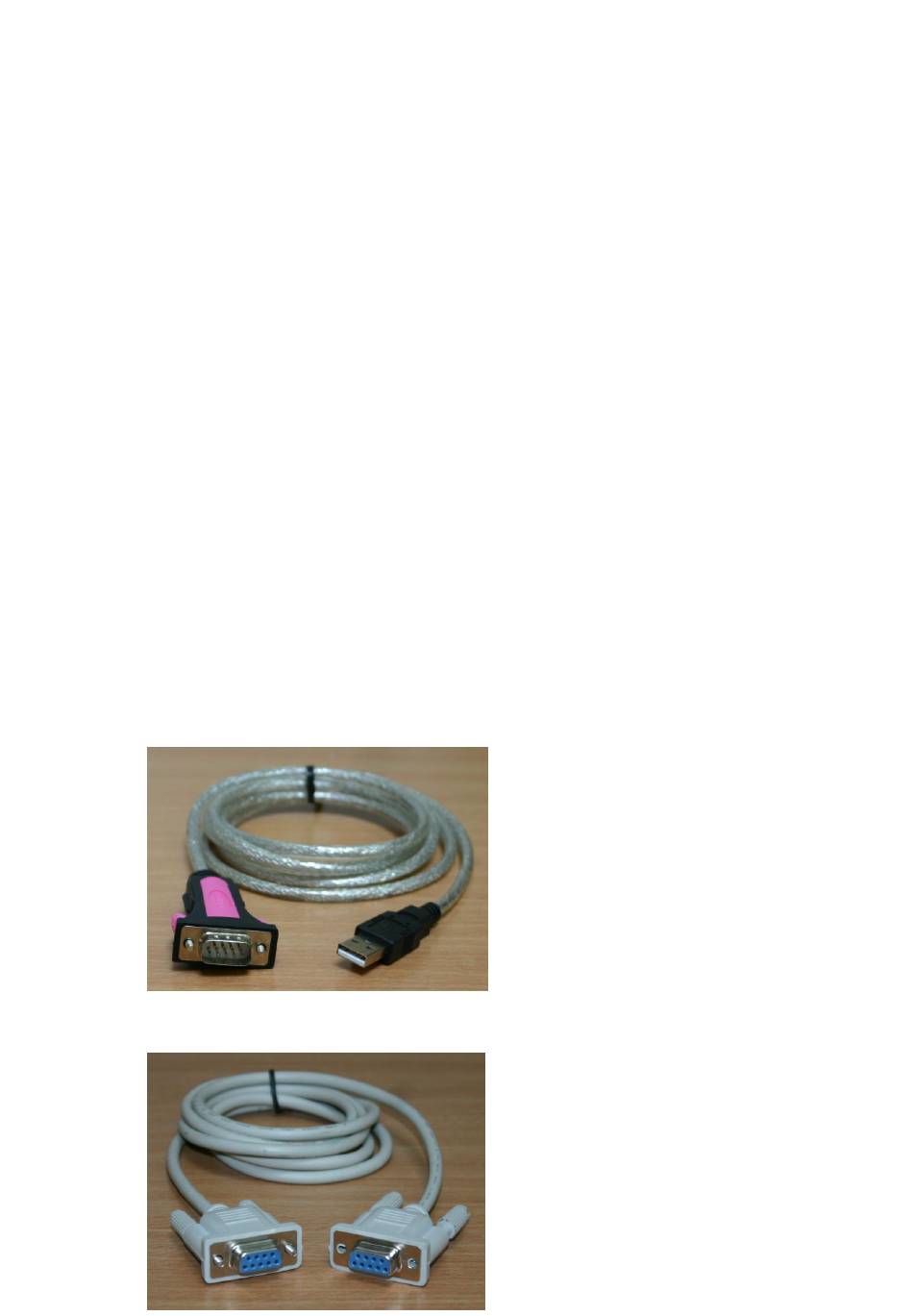

c) A serial data transfer cable (assuming your computer is equipped with a RS232 serial port). Since
most modern laptops are no longer equipped with serial ports, a USB-to-serial adapter cable must
be used. This cable can be obtained from a computer shop or from Olympia. Please note that this
cable contains electronics which make it necessary to install the corresponding driver regardless of
the operating system used.
d) A serial null modem cable. This is equipped with Sub-Min-D connectors and the poles 2 and 3 are
crossed. This cable can also be obtained from a computer shop or from Olympia.

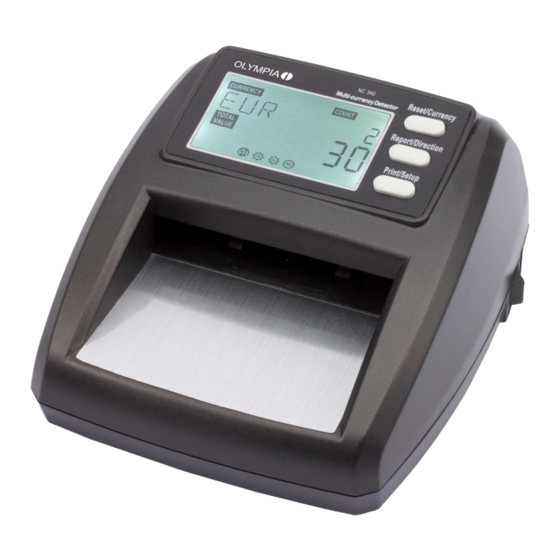

NC 320, NC 330 and NC 340
Olympia article number: 947730998
Olympia article number: 947730999
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Olympia NC 320
Summary of Contents for Olympia NC 320
- Page 1 NC 320, NC 330 and NC 340 It may be necessary to update the firmware and adjust the settings of the NC 320, NC 330 and NC 340 bank note validators if parameters for detecting forged bank notes must be adapted. Introduction of new Euro bank notes may also make it necessary.
- Page 2 Firmware Update path under the bank note validators NC 320, NC 330 and NC 340. You must then download these files on your PC in a new path. You can then find the stc-isp-15xx-v6.21 programme and the three programme code files.
- Page 3 Step 1: Selecting the processor type (MCU Type) Firstly, select the processor of the bank note validator. Processor STC90C58AD should be set in the "MCU Type" window at the top left. If this is not the case, open the path STC90C58AD Series in this field. Then select the processor type STC90C58AD from this path.
- Page 4 The processor STC90C58AD then appears in the MCU Type window. AUTO appears in the adjacent window. Step 2: Adding the programme code (Open Code File) The corresponding programme code must now be added. Click on the "Open Code File" button. A selection window appears (if necessary, open the file which you set up): Select the programme code relevant for your machine, NC3x0_3_1.hex, and confirm it.
- Page 5 The screen now appears as follows: Step 5: Starting to download the programme Press the "Download/Program" button. The connection to the USB-to-serial adapter is now tested. If an error message appears, change the COM Port number in Step 3. Then press the "Download/Program" button again.
- Page 6 When data transfer is finished, "Complete!" appears in the display.
- Page 7 The bank note validator starts up and a new version number briefly appears in the display. The bank note validator can be switched off and the connection with the USB-to-serial adapter disconnected. A 100 Euro bank note should be used for the final alignment. Please insert this bank note in all four directions.
