Summary of Contents for BLAUBERG Ventilatoren KOMFORT Roto EC S6K 200

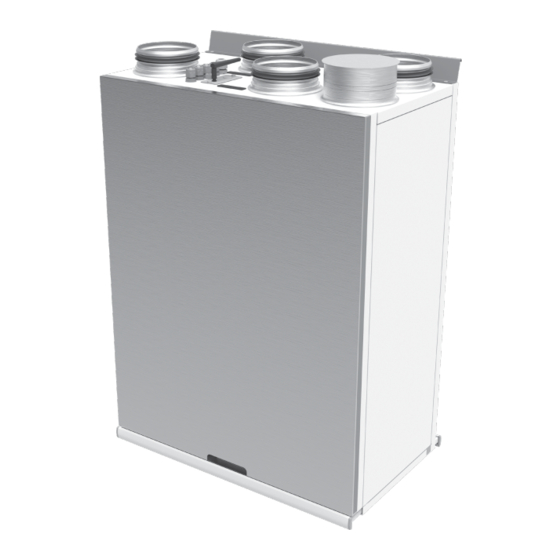

- Page 1 Heat recovery air Handling unit KoMFort roto ec S6K 200 KoMFort roto ec S6eK 200 USER’S MANUAL...
-
Page 2: Table Of Contents
KoMFort roto ec S6(e)K 200 www.blaubergventilatoren.de CONTENTS Safety requirements ..................................2 Purpose ........................................ 5 Delivery set ......................................5 Designation key ....................................5 Technical data ....................................6 Design and functioning ................................7 Mounting and set-up .................................. 8 Connection to power mains ..............................12 Technical maintenance ................................ - Page 3 KoMFort roto ec S6(e)K 200 www.blaubergventilatoren.de UNIT INSTALLATION AND OPERATION SAFETY PRECAUTIONS • Disconnect the unit from power mains prior to any • Unpack the unit with care. installation operations. • While installing the unit, follow • The unit must be grounded! the safety regulations specific to the use of electric tools.
- Page 4 KoMFort roto ec S6(e)K 200 www.blaubergventilatoren.de • When the unit generates • Do not store any explosive or unusual sounds, odour, or highly flammable substances emits smoke, disconnect it in close proximity to the unit. from power supply and contact the Seller.
-
Page 5: Purpose
KoMFort roto ec S6(e)K 200 www.blaubergventilatoren.de PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air. -
Page 6: Technical Data
IP44 for the unit motors The unit design is constantly being improved, thus some models may be slightly different from those described in this manual. Parameter KOMFORT Roto EC S6K 200 KOMFORT Roto EC S6EK 200 Unit voltage [V/50 (60) Hz]... -
Page 7: Design And Functioning
KoMFort roto ec S6(e)K 200 www.blaubergventilatoren.de DESIGN AND FUNCTIONING The unit has the following operating principle: stale extract air from the room flows to the unit, where it is filtered. Then the air is moved through the rotary heat exchanger and is exhausted outside with the exhaust fan. -
Page 8: Mounting And Set-Up
KoMFort roto ec S6(e)K 200 www.blaubergventilatoren.de MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. THE UNIT MUST BE MOUNTED BY A QUALIFIED EXPERT ONLY, PROPERLY TRAINED AND HAVING THE REQUIRED TOOLS AND MATERIALS. While mounting the unit provide enough access for maintenance or repair work. The minimum recommended clearances between the unit and the adjoining walls are given in the figure below. - Page 9 KoMFort roto ec S6(e)K 200 www.blaubergventilatoren.de DECORATIVE PANEL MOUNTING The decorative panel must be installed using the suspension brackets (included in the delivery set). Fix the suspension brackets on the decorative panel according to the drawing. Install the decorative panel by inserting the brackets in special holes.
- Page 10 KoMFort roto ec S6(e)K 200 www.blaubergventilatoren.de SERVICE SIDE CHANGE The design of the unit allows changing the service side. A – supply air B – intake air C – extract air D – exhaust air E – extract air from kitchen hood Remove the decorative panel.
- Page 11 KoMFort roto ec S6(e)K 200 www.blaubergventilatoren.de UNIT INSTALLATION Attach the mounting bracket to the wall considering the wall material and the unit weight. Install the unit on the mounting bracket. Suspend it carefully. Make sure the unit is fastened securely prior to operation.
-
Page 12: Connection To Power Mains
KoMFort roto ec S6(e)K 200 www.blaubergventilatoren.de CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. - Page 13 KoMFort roto ec S6(e)K 200 www.blaubergventilatoren.de EXTERNAL WIRING DIAGRAM NC C 0-10V +24V +24V XS11 1 2 3 4 7 8 9 10 11 12 13 14 15 16 17 GND 0-10V +24V +24V KH1* PK1* Boost* CO2* SM1* SM2* Electric shock hazard! Designation Name...
-
Page 14: Technical Maintenance
KoMFort roto ec S6(e)K 200 www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! Maintenance operations of the unit are required 3-4 times per year. They include general cleaning of the unit and the following operations: 1. -
Page 15: Troubleshooting
KoMFort roto ec S6(e)K 200 www.blaubergventilatoren.de TROUBLESHOOTING IF UNIDENTIFIED NOISES OR ODOURS SHOULD ARISE AND IN CASE OF DEFORMATION OF ELEMENTS, VIBRATION, TERMINATION OF AIR SUPPLY/EXTRACTION OR REDUCED SYSTEM PERFORMANCE, IMMEDIATELY DISCONNECT THE UNIT FROM POWER SUPPLY AND CONTACT THE SELLER FOR THE VENTILATION SYSTEM DIAGNOSTICS. DIAGNOSTICS MUST BE CARRIED OUT BY QUALIFIED SPECIALISTS. -
Page 16: Storage And Transportation Regulations
KoMFort roto ec S6(e)K 200 www.blaubergventilatoren.de STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range +5...+40 ˚C and relative humidity up to 70 %. • Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing deformation. -
Page 17: Manufacturer's Warranty
KoMFort roto ec S6(e)K 200 www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. - Page 18 KoMFort roto ec S6(e)K 200 www.blaubergventilatoren.de...
-
Page 19: Certificate Of Acceptance
KoMFort roto ec S6(e)K 200 www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Heat recovery air handling unit Model KOMFORT Roto EC S6___K 200 Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 20 www.blaubergventilatoren.de B140-1-1EN-01...
