Quick Start Guide

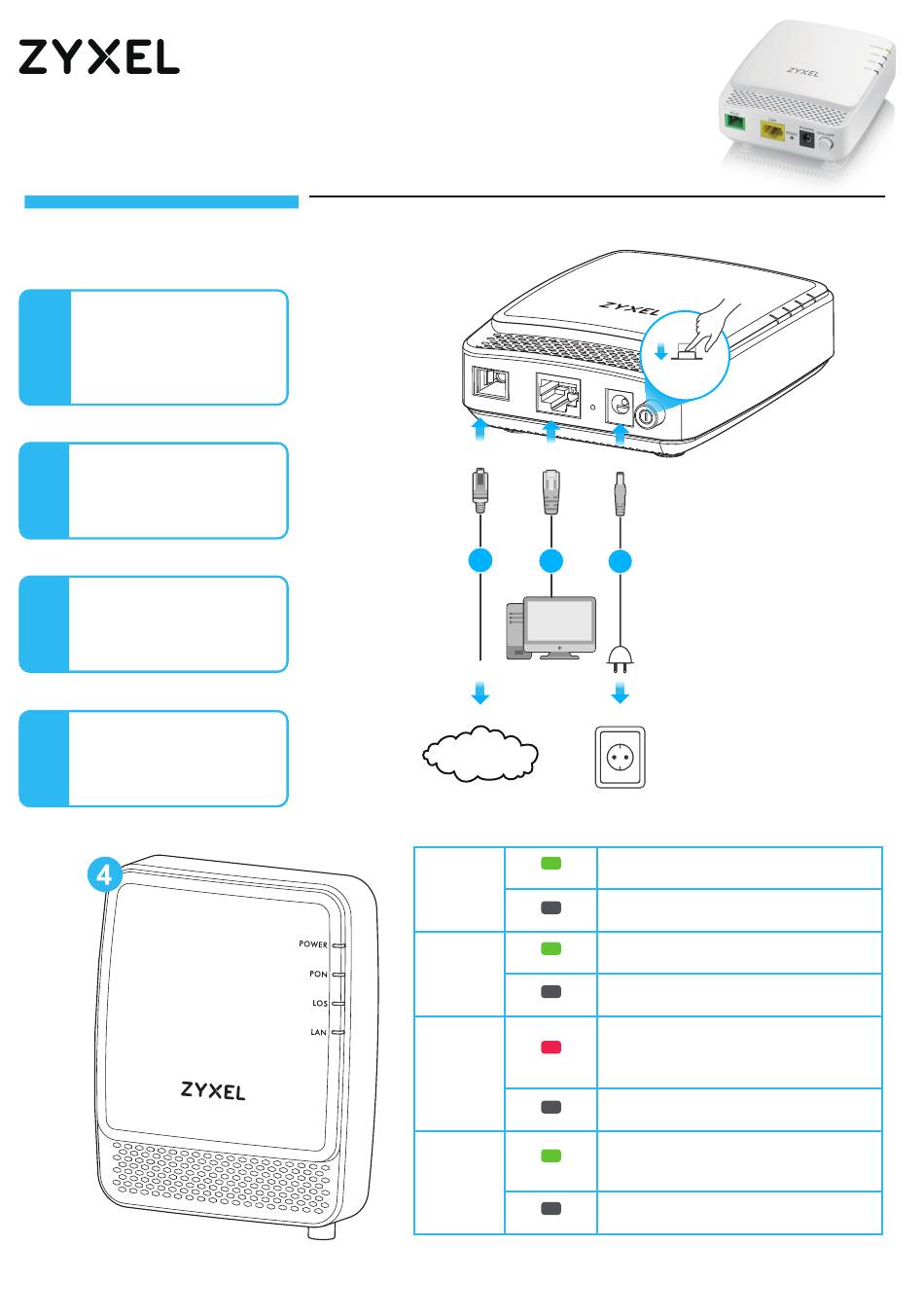

Hardware Connections

Connect the fiber optic cable to
the PON port.
1
Warning! To avoid possible eye
injury, do NOT look into an
operating fiber-optic module's
connector.
2
Connect a computer to the LAN
port using the yellow Ethernet
cable.
3
Connect the power cord to the
PMG1005-T20C and press the power
button.
4 Make sure the LEDs are on and
check the status.
1/2
PMG1005-T20C
GPON SFU with 1-port GbE LAN
PON
1
INTERNET
POWER
PON
LOS
(Loss of Signal)
LAN
POWER ON
LAN
POWER
2
3
On: Power on and system ready
Green
Off: Power off
Off
On: Successful GPON fiber link
Blinking: Synchronizing with OLT (fiber terminal)
Green
Off: The fiber link is down.
Restart the PMG1005-T20C.
Off
On: Not receiving an optical signal. Reconnect
the fiber optic cable to the PON port.
Red
Blinking: Receiving a weak optical signal.
Reposition the PMG1005-T20C.
Off: Receiving a normal optical signal
Off
On: Successful Ethernet link
Blinking: Transmitting/Receiving data on the
Green
Ethernet link
Off: Ethernet connection is down. Reconnect
the Ethernet cable to the LAN port.
Off
Copyright © 2019 Zyxel Communications Corp. All Rights Reserved.
