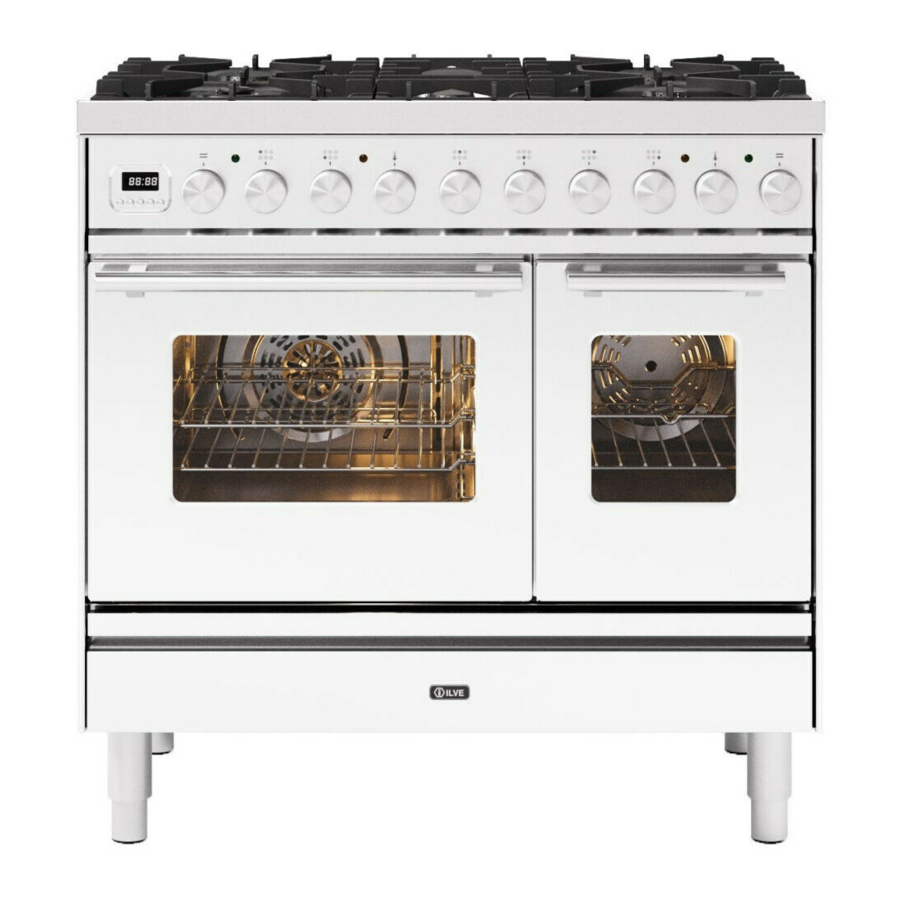

- Page 1 RANGECOOKER INSTALLATION MANUAL ROMA - MILANO - MAJESTIC ROMA - MAJESTIC MILANO 06 - 07 - 08 - 09 - 10 - 12 - 15 INSTALLATION AND MAINTENANCE cod. EI33960030000EN 32/2019...
- Page 3 ELECTRICAL CONNECTIONS Groups of cooking Induction cookers GAS INSTALLATION GAS CONNECTIONS By the Qualified installer LPG CONVERSION Replacement of the injectors for all models ADJUSTMENT Adjustments minimun GAS flow KITCHEN TABLE ROMA - MILANO - MAJESTIC ROMA MAJESTIC MILANO WIRING DIAGRAM...
-
Page 4: Important Notes
Request that a periodic maintenance service has to be carried out at least every two years to maintain a fully functioning appliance. LEAKING GAS In the case of leaking gas, close the main gas tap and disconnect the product from the mains. Call the ILVE service team immediately. -
Page 5: Installation Of The Cooker
This is a type “A” appliance which does not need to be joined to an exhaust system for combustion waste however ILVE strongly recommend that it is installed under a range hood or other smoke extraction system in compliance with the gas safe regulations. The knowledge and consultation of the standards are a key factor for a qualified technician. - Page 6 INSTALLATION Installation of the cooker Positioning of the - The appliance can be installed singularly: class 1. appliance between furniture - The appliance can be installed between two pieces of furniture: class 2/1. - The cooker is protected against excessive overheating, so it may be installed next to furniture with a height no higher than that of the worktop.
- Page 7 INSTALLATION How to install the fixing bracket Model: 60, 70, 80, 90 cm. - Unpack the cooker and mount the feet by adjusting the height. - Measure the height from the floor to the top edge of the back-cross bar (picture 5) and add 15mm.
-
Page 8: Electrical Connections
ELECTRICAL CONNECTIONS Groups of cooking ATTENTION The instructions below are intended for the skilled technician who will install the cooker, regulate it and perform technical maintenance and who will ensure that these operations are carried out in the most correct way possible, in compliance with the regulations in force. -
Page 9: Gas Installation
3x10 H07RN 50/60 Hz ILVE Gas Cooker installation GAS INSTALLATION Due to confined space available at the rear of the cooker, the cooker cannot currently be installed to GB Gas Safe regulations without leaving a gap in between the cooker and the rear wall. -
Page 10: Gas Connections
GAS CONNECTIONS By the qualified installer a) CLASS (Subclass 2/1 cooker recessed between furniture) Instructions The apparatus must be connected to the gas mains by means of PIC flexible metal (UNI 7129/7131) hose (maximum length 2 metres) suitable for gas appliances. The connection pipes and their maximum lengths must conform to the applicable stan- dards (UNI CIG 9891), which are replaced before expiry (if indicated on the tube) and connected to the device by means of the ISO R228 threaded fitting (Fig. -
Page 11: Lpg Conversion
LPG CONVERSION Replacement of the injectors for all models Procedure: Burners SR – R – P: SR - R - P • unscrew injectors “U” using a 7mm spanner (fig. 1) and replace them with those for the new gas according to table number 2 on page 20. Procedure: DCC –... - Page 12 ADJUSTMENTS Adjustments minimun GAS flow Adjustments When installing the cooker, you must check that the minimum gas flow of the burners on the hob and in the oven is correctly regulated. If the type of gas is changed it is indispensable to adjust the minimum flow. The regula- ting procedure is as follows.
- Page 13 ADJUSTMENT Kitchen table ROMA - MILANO - MAJESTIC ROMA - MAJESTIC MILANO N. 1 PD09 PD10 MD10...
-
Page 14: Wiring Diagram
WIRING DIAGRAM Black ” ” oven thermostat Barbecue heating element Brown ” ” programmer/timer Fryer heating element ” ” grill Energy regulator White ” ” el. hotplate Oven warning light Yellow ” ” frame Mains power warning light Yellow-green ” ”... - Page 15 WIRING DIAGRAM HOB GAS BASIC INDUCTION HOB AREA 5...
- Page 16 WIRING DIAGRAM P09I...E3 INDUCTION HOB AREA 4...
- Page 17 WIRING DIAGRAM INDUCTION HOB AREA 5 INDUCTION HOB AREA 6...
- Page 18 WIRING DIAGRAM P (06-07-30”-08-09)...E3 M(07-30”-09)...E3...
- Page 19 WIRING DIAGRAM M09I..E3 M12...E3...
- Page 20 WIRING DIAGRAM M12I...E3 M15...E3...
- Page 21 WIRING DIAGRAM WIRING DIAGRAM MD10...E3 MD10I...E3...
- Page 22 WIRING DIAGRAM WIRING DIAGRAM P12...IE3 P12...E3...
- Page 23 WIRING DIAGRAM P15/PD12...E3 PD(09/10)I...E3...
- Page 24 WIRING DIAGRAM PD(09/10)...E3...
- Page 26 NOTES...
