Summary of Contents for Ecoplus SBR-12.5H-B

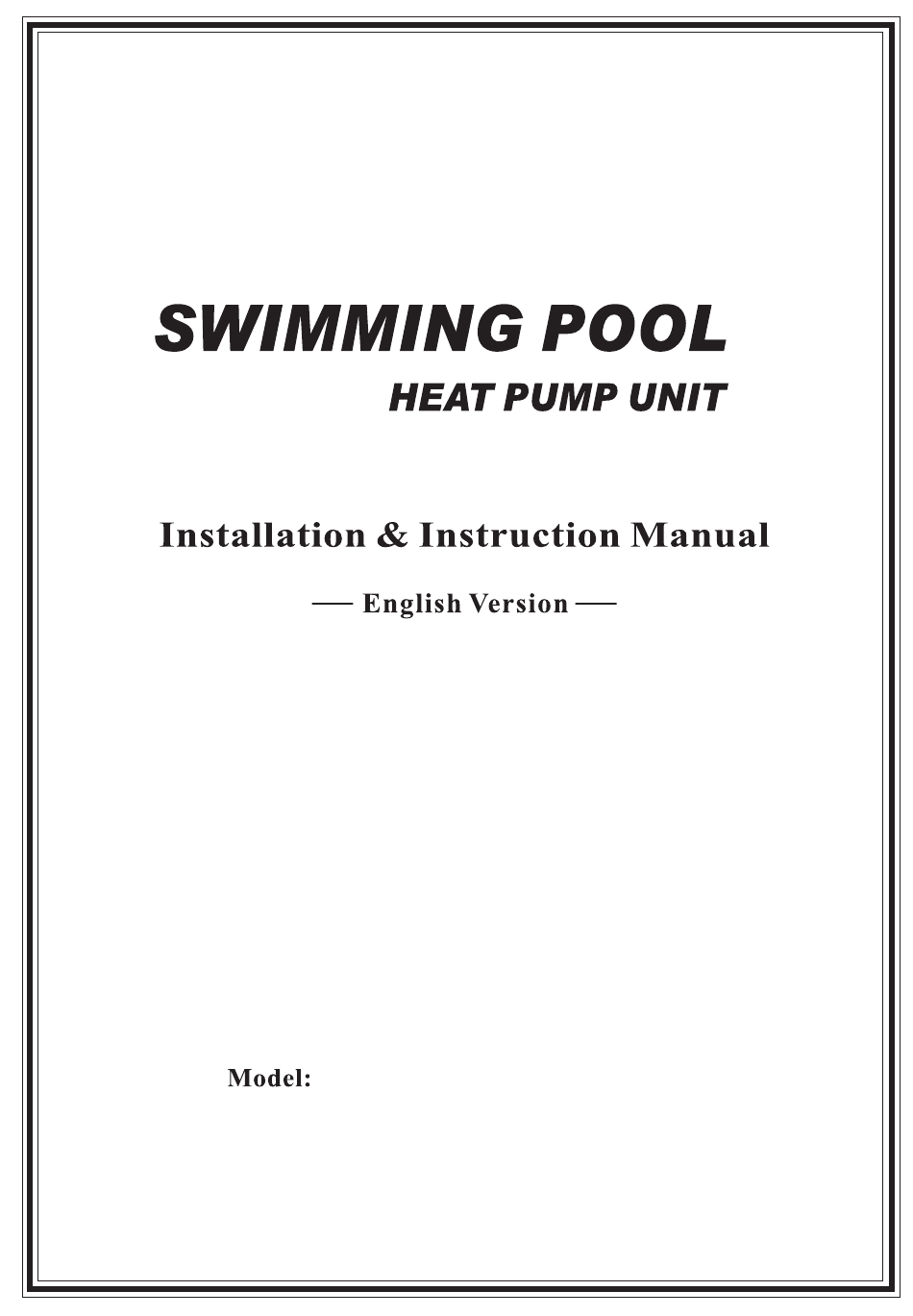

- Page 1 SBR-12.5H-B SBR-17.0H-B-S...
-
Page 2: Table Of Contents
Contents Performance Data Specifications Performance data of Swimming Pool Heat Pump Unit - -- - - - - - 2.The dimension for Swimming Pool Heat Pump - - - - - - - - - - - - - -- 2 3.Wire controller operation guide- - - - - - - - - - - - - - - - - - - - - - - - -- - - 3 4.Maintenance- - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5.Wiring Diagram - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 16... - Page 3 Dear customers: In order to use this machine safely, please read this user's manual carefully before using and installation, especially pay attention to each notice remark for usage and maintenance. Also keep it carefully for later use. Heat pump water heater is a professional machine, it may cause damage or hazard when wrong installed.
-
Page 4: Performance Data Of Swimming Pool Heat Pump Unit
Model SBR-12.5H-B SBR-17.0H-B-S 12500 17000 Rated Heating Capacity 42500 60000 BTU/h 9000 12000 Rated Cooling Capacity 30000 42000 BTU/h ℃ 20~40 Heating Range ℃ 8~28 Cooling Range Heating Input Power 2604 3700 Cooling Input Power 2540 3630 Running Current Heating 12.3... -
Page 5: The Dimension For Swimming Pool Heat Pump
SWIMMING POOL HEAT PUMP 2.The dimension for Swimming Pool Heat Pump Measure: mm Model SBR-12.5H-B SBR-17.0H-B-S Size 1115 1115... - Page 8 of Timming Setting,press “ ” once again,when the timming ON/OFF setting is set at the same time,the timming ON/OFF setting is cancelled.
- Page 9 Digit Meaning Range Default Remarks Cold water set point temp Can adjust SET0 8-28℃ 12℃ Hot water set point temp Can adjust SET1 20-40℃ 40℃ Auto backwater set point temp 27℃ SET2 8-40℃ Can adjust Can adjust Tank water set point temp SET19 25-60℃...
- Page 10 Long-distance Protect/Failure Remark controller Water inlet temperature sensor failure PP 1 Water outlet temperature sensor failure Coil temperature sensor 1 failure Air circulation temperature sensor 1 failure Ambient temperature sensor failure Coil temperature sensor 2 failure Winter anti-freezing protection I Winter anti-freezing protection II Air circulation temperature sensor 2 failure Exhaust temperature sensor 1 failure...
- Page 11 5) Two ways to connect wifi a. First way For Android System Install the APP of “SmartLink3 Demo” ◎ ◎ Turn on the heat pump, and make sure the area of heat pump installed cover with wifi signal. What's more, make sure your smart phone with wifi connected. Long press the ON/OFF button and DOWN button of LCD controller for 10 seconds.
- Page 12 a. First way It may take 1 minute to match all wifi setting. ◎ If connected successful, it could show “SmartLink Compelted” as below pic. If failed, it could show “time out”as below pic, then you have to repeat step 3 & 4 again. ◎...
- Page 13 a. First way For IOS System Find out “SmartLink” in the APP Store, download and install it. ◎ You can scan below QR code for fast installation as well. ◎ Input the passwords of your local wifi. ◎ Other setting please refer to Android system, as they are the same. Remarks, initial wifi setting may need a few times to complete.
- Page 14 b. Second way for wifi setting Turn on the heat pump. ◎ Use laptop or smart phone to find wifi “HF-LPB100”and connect it. ◎ Open website of “10.10.100.254”, input user name and password as below. ◎ User name: admin Password: admin After that, you could find below interface.
- Page 15 b. Second way for wifi setting Then select STA setting, press Scan, then press Save. See below refer pic. ◎ ◎ Please choose the safety and reliable local area network which available. Then press OK to Confirm.
- Page 16 b. Second way for wifi setting Make sure the Encryption Method choose WPA2PSK, and Encryption Algorithm choose AES. ◎ Input the password of your local area network. Then press Save. After finished all above steps, come to Restart interface, and press OK to confirm ◎...
- Page 17 c. Remarks ◎ Make sure to press “SAVE” for each setting. If IP address changed, all above setting need to re-set. ◎ If you try first way of “Smartlink3 DEMO” and failed, ◎ then try the second way for wifi setting. Long press turn ON/OFF button and UP button for 10 ◎...
-
Page 18: Maintenance
SWIMMING POOL HEAT PUMP 4. Maintenance To check the water supply device often. You should avoid the condition of no water or air entering into system, or that will influence unit’s performance and reliability. You should clear the water filter regularly to avoid unit’s damage by filter’ jam. There should be dry, sanitary and ventilation around the unit. -
Page 19: Wiring Diagram
5. Wiring Diagram WIRING DIAGRAM TO AC contactor of water pump SBR-12.5H-B CN 9 CN 8 CN 7 CN 6 CN 5 CN 4 CN 3 CN 2 Water inlet temp sensor AC-N Water outlet temp sensor Coil temp sensor... - Page 21 2. The charts displayed for an indoor pool...
