SECTION 3. OPERATING THE SYSTEM

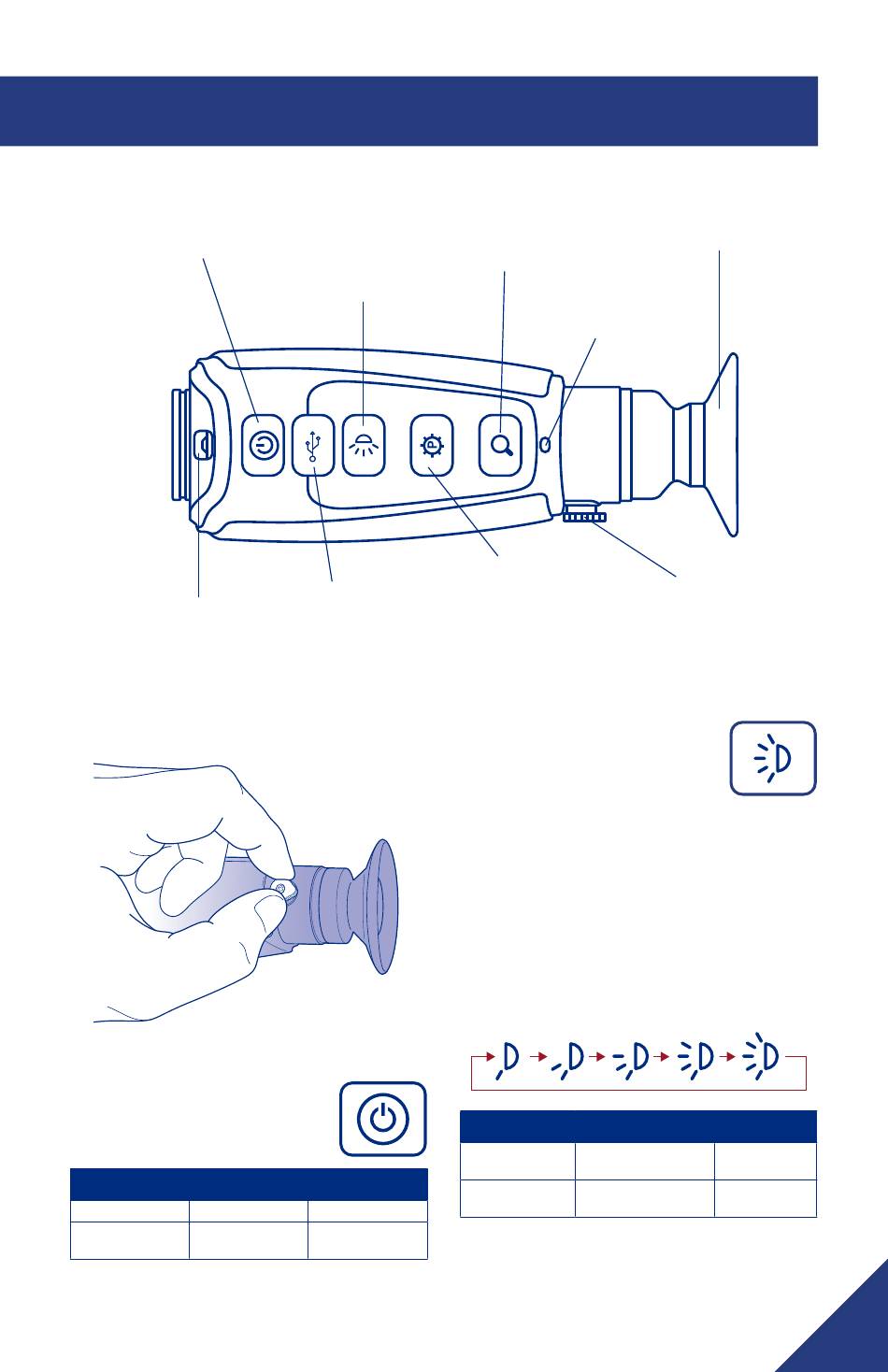

3.1 SYSTEM CONTROLS AND BUTTONS
Power
Task Light
3.1.1 DIOPTER ADJUSTMENT
While looking through the eyepiece, adjust the
position of the diopter lever to optimize the
sharpness of the image in the viewfinder.
3.1.2 POWER BUTTON
The Power Button performs the
following functions:
SYSTEM STATE SHORT PRESS
System OFF Turns Power ON
System ON Access User
Menu
Zoom (320 & 640 models)
Display Brightness
Task Light On/Off
Mini-USB/Charging/Analog
video out
(320 & 640 models only)
LONG PRESS
N/A
Turns Power
OFF
Charging
Indicator
Palette Selection
Adjustable Diopter
3.1.3 DISPLAY BRIGHTNESS
BUTTON
Use this button to cycle through the
five levels of display brightness.
Each press of the button advances
to the next level of brightness.
When the highest brightness level is reached,
subsequent button presses advance to the
next lower brightness levels. When the lowest
brightness level is reached, subsequent button
presses advance to the next higher brightness
level. One of the following icons is displayed
for approximately 3 seconds after the button is
pressed indicating the current brightness level:
Dim
SYSTEM STATE SHORT PRESS
System OFF Flashes LED Task
System ON Changes Current
Display Brightness
Eyepiece
Bright
LONG PRESS
Turn on LED
light Task Light
N/A
