Summary of Contents for PLUSLITE FRESNEL PL200

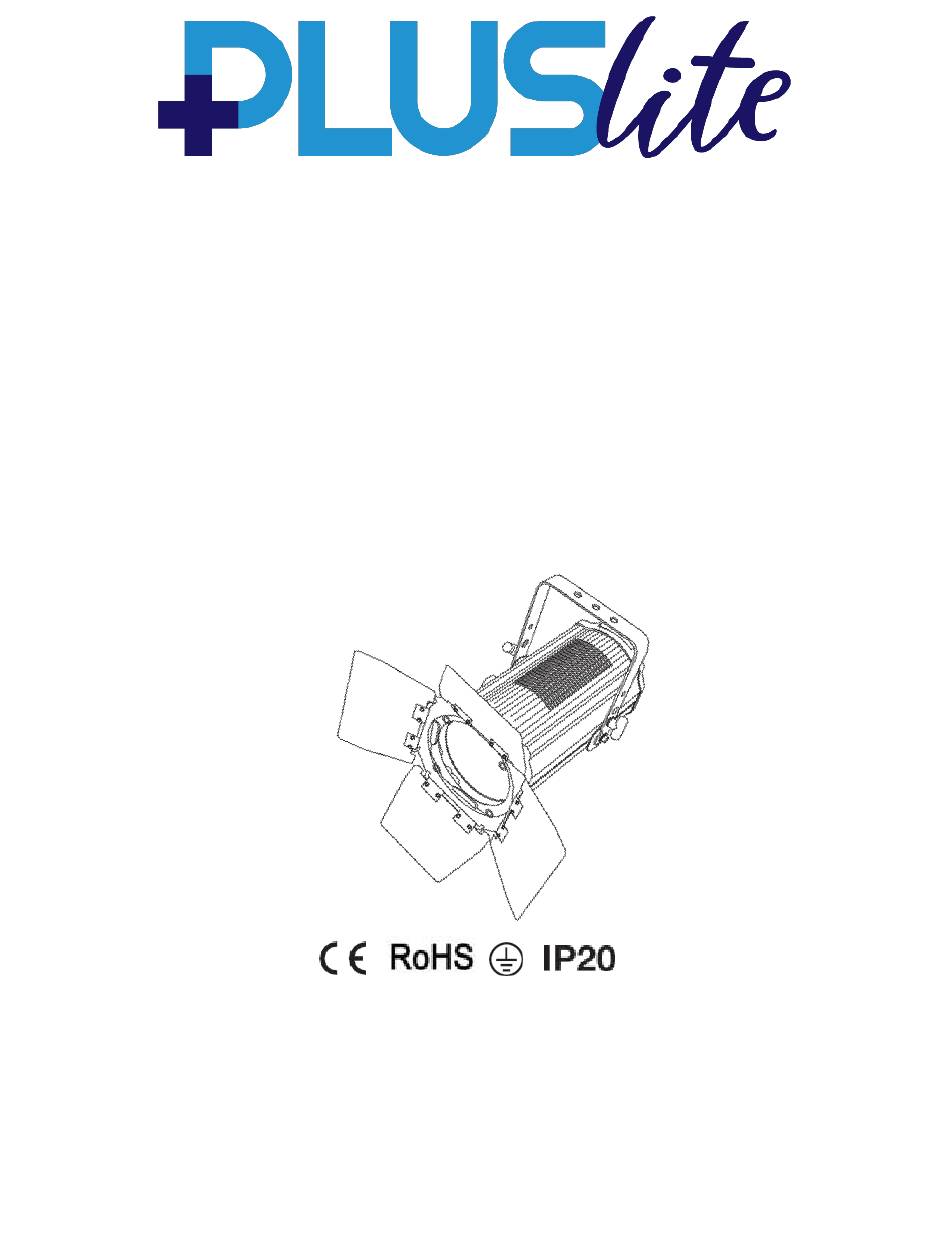

- Page 1 FRESLED FRESNEL PL200 User Instructions ①...
-
Page 2: Safety Instructions
FRESLED-PL200 SAFETY INSTRUCTIONS CAUTION Becareful with your operations.With a dangerous voltage you cansuffer a dangerous electric shock when touching wires! This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. - Page 3 FRESLED-PL200 Unpacking Thank you for choosing FRESLED PL200 is a 200 WW Led Fresnel Spotlight with Auto Zoom. For your own safety, please read this manual before installing the device. This manual covers the important information on installation and applications. Please install and operate the fixture with following instructions.
-
Page 4: Features And Specifications
FRESLED-PL200 FEATURES & SPECIFICATIONS Feature： *1*200W COB LED (Warm White 3200K) *50,000 hours life time and low power consumption *Color Rendering Index(CRI): Ra≥90 *High efficiency fresenal lens *Flat and even spot image with soft edge *Auto zoom system(by DMX) from 15°-50° *Housing made by rugged, die cast aluminum alloy *Thermally insulated rear handle *Thermally insulated knobs and single aluminum handle for installing... -
Page 5: Dmx-512 Control Connections
FRESLED-PL200 DMX-512 CONTROL CONNECTIONS Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors. - Page 6 FRESLED-PL200 3-Pin DMX IN POWER IN 5-Pin DMX IN COMMON 1:Ground DMX+ 2:Data(-) 3:Data(+) DMX- DMX Output DMX Input 3-Pin XLR 3-Pin XLR DMX512 Out DMX512 In 3-Pin XLR 3-Pin XLR 120Ω Pin3 Pin2 For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator.
-
Page 7: Product Feature
FRESLED-PL200 Product Feature 2 kinds of running model External control mode (Slave model) DMX 512 controller control(2 kinds channel modes) Master/salve model control (auto match the signal from controller and the Master light, no need to set by menu) ... -
Page 8: Menu Operations
FRESLED-PL200 MENU OPERATIONS 6.1 Menu Data Menu State Operative Mode DMX address DMX channel Mode Speed of Dimmer Main Menu Vice Menu No DMX signal Screen Savers Screen Rotation Language switching Speed of Dimmer Manual mode System information Reset Restore the default settings 6.2 Key Operation Vice Menu State... -
Page 9: Language Switching
FRESLED-PL200 Dimmer 2 slowest ) Dimmer 3 Dimmer 4 Press “ENTER” to Manual mode, Not receive Manual mode control signals System Press “ENTER” to ensure，View the version number information and the elapsed time Press “ENTER”to confirmation dialog box, then Reset Ensure/Cancel press”ENTER”... -
Page 10: Special Instructions
FRESLED-PL200 6.7 Special Instructions At the main menu, press “ENTER” to get in to Reset Calibration Interface, to micro debugging Gobo location. (Hide feature) State Operation Focus Press”ENTER”to edit, Calibration values can be set by the Key of UP/DOWN. Calibration Press “ENTER”... - Page 11 FRESLED-PL200 Photographic Chart(Spectrogram & CRI) Ra≥90 Ra≥95 ⑪...
- Page 12 FRESLED-PL200 Lumen ⑫...
-
Page 13: Operation & Specifications
FRESLED-PL200 OPERATION & SPECIFICATIONS · The FRESLED PL200 is an LED fresnel light for on-site decoration purpose. · Don't turn on the fixture if it's been through severe temperature difference like after transportation because it might damage the light due to the environment changes. So make sure to operate the fixture until it is in normal temperature. - Page 14 FRESLED-PL200 Please ensure that the led fresnel spotlight is hung using the appropriate "C" clamp or half cheeseboro. A safety chain or cable should also be used as a secondary point of holding the fixture in case the clamp comes loose. Never hang the fixture without a safety chain or cable. There is an eye-bolt on the back of the fixture to which the safety chain or cable can threaded through and then hung from the secondary point.
-
Page 15: Cleaning And Maintenance
FRESLED-PL200 Cleaning and maintenance Now ignoring maintenance and cleaning is very good way of creating problems "down the road" and many companies and installations do just that. However the net result is, no matter what the fixture, premature failure! Changing the oil in a car, most people do on a regular basis. So with the fixtures, regular maintenance it an excellent practice, if you want the fixtures to last. - Page 16 DMX512, master/slave, autorunning, sound mode DMX Channels 2/5 CH AUTO ZOOM 15-50° Weight: 8.5Kgs Dimension: 39,7*21,1*37,8cm Warranty: 2 Year Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. https://www.piu39av.com/pluslite-lighting/ ⑯...
