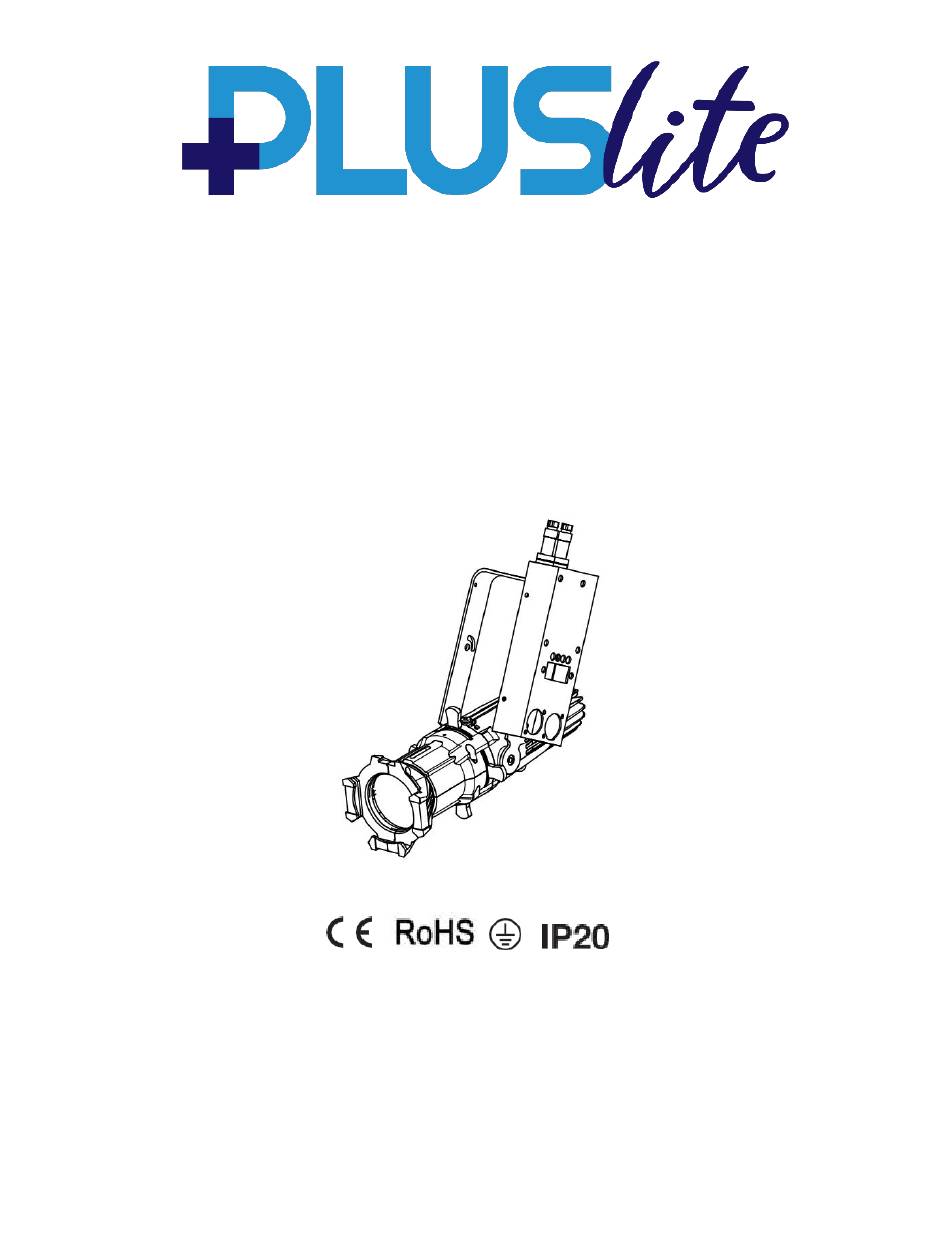

- Page 1 MINIP MINI P 20W PROFILE User Manual...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS CAUTION Be careful with your operations.With a dangerous voltage you can suffer a dangerous electric shock when touching wires! This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. - Page 3 Please install and operate the fixture with following instructions. Meanwhile, please keep this manual well for future needs. The MINI P 20W Profile is made of a new type of high temperature strength of die-casting aluminum with nice outlook. The fixture is designed and manufactured strictly following CE standards, complying with international standard DMX512 protocol.
-
Page 4: Features And Specifications
FEATURES & SPECIFICATIONS • 1*20W COB LED ( Warm white ) • 50,000 hours life span and low power consumption • Color Rendering Index(CRI): Ra≥90 • Optimized high definition optical system for improved photometric performance and field uniformity • Projector-quality, high reflector •... -
Page 5: Dmx-512 Control Connections
DMX-512 CONTROL CONNECTIONS Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors. - Page 6 COMMON DMX+ 1:Ground DMX- 2:Data(-) 3:Data(+) DMX Output DMX Input DMX 512 OUT DMX 512 IN 3-Pin XLR Socket 3-Pin XLR Socket 3-PIN XRL 3-PIN XRL 120Ω For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator.
-
Page 7: Menu Operations
MENU OPERATIONS 5.1 Key operation MENU DOWN ENTER Main key Main menu or back the last menu 【MENU】 Choosing data value 【UP】 Choosing data value 【DOWN】 Enter, choose the vice menu or end edit. 【ENTER】... -
Page 8: Menu Description
5.2. Menu description 5.2.1. Main menu Press MENU key to change the menu LED show English word/function key operation description Advanced UP/DOWN key to choose the check “channel address code (1~512) data” Advance controller state ENTER key to save normal controller state SLAve... - Page 9 5.2.3. Set Menu In the “Sound” menu, long press “ENTER” to set the menu. Press MENU to change the menu option. LED show English Word/function key operation Description LED waiting time UP/DOWN choose the waiting 0 = no screen time protect Screen protect time High Power...
-
Page 10: Dmx Channels
DMX CHANNELS Channel Data Function 0~255 Dimmer No function 6~255 Strobe: 6 is slowest, 255 is fastest 0~25 Turn on “delay by controller” 26~200 Turn off “delay by controller” 251~255 Sound mode: the changing of the light depends on the MIC of each light Channel Data Function... -
Page 11: Installations
OPERATION INSTRUCTIONS · The MINI P 20W Profile is an LED profile light for on-site decoration purpose. · Don't turn on the fixture if it's been through severe temperature difference like after transportation because it might damage the light due to the environment changes. So make sure to operate the fixture until it is in normal temperature. - Page 12 Please ensure that the led profile spotlight is hung using the appropriate "C" clamp or half cheeseboro. A safety chain or cable should also be used as a secondary point of holding the fixture in case the clamp comes loose. Never hang the fixture without a safety chain or cable. There is an eye-bolt on the back of the fixture to which the safety chain or cable can threaded through and then hung from the secondary point.
- Page 13 Photographic Chart 19 degree 26 degree 36 degree 50 degree...
-
Page 14: Cleaning And Maintenance
Cleaning and maintenance Now ignoring maintenance and cleaning is very good way of creating problems "down the road" and many companies and installations do just that. However the net result is, no matter what the fixture, premature failure! Changing the oil in a car, most people do on a regular basis. So with the fixtures, regular maintenance it an excellent practice, if you want the fixtures to last. - Page 15 DMX512, master-slave, or auto operation DMX Channels 1/3DMX channels USITT DMX-512 Weight: 2.0Kgs Dimension: 269,75(D)*122(W)*122(H)mm Warranty: 2 Year Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. https://www.piu39av.com/pluslite-lighting/...
