Connecting The Lower Connection Piece - Danfoss ThermoDual S Quick Manual

Quick Guide

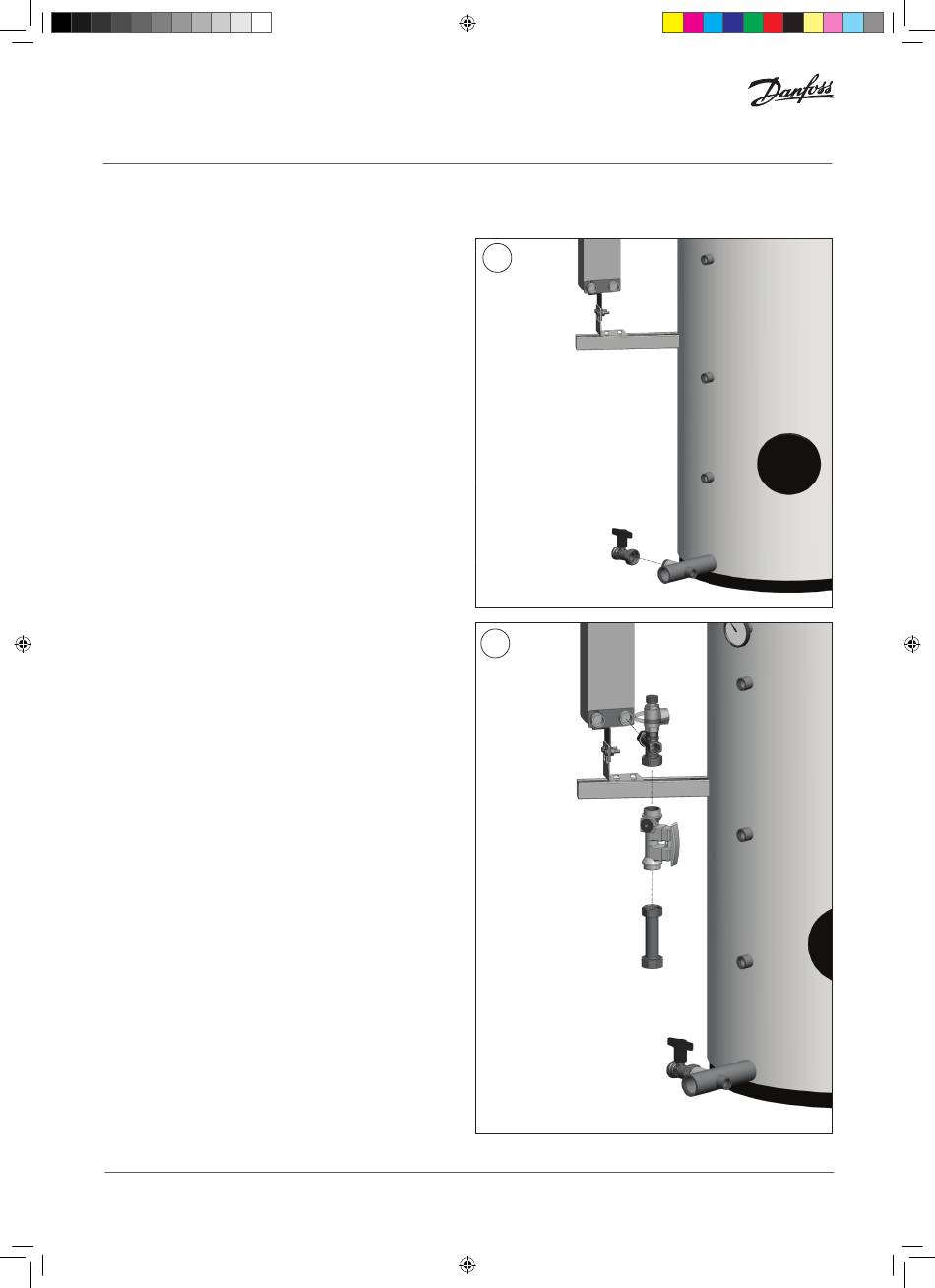

Screw the lower ball valve to the cold water connection.
Insert the enclosed EPDM gasket in advance.
Connect the lower connection piece (N), the balancing
valve (D) and the connection part (Q) together one after the
other and to the charging heat exchanger (HEL).
Check the correct flow direction of the balancing valve
(upwards - see arrow on the valve body).
Use enclosed EPDM gaskets and manually tighten all
and requires no additional sealing material.
DHS-SMTL / PL
VQJVA202_ThermoDual-S_181213.indd 6
ThermoDual®- S
Then tighten manually.
screwed connections.
The safety valve is screwed onto the
designated port R ¾" as shown.
This connection is self-sealing
VQ.JV.A2.02 © Danfoss 12/2018
1 2
A
11
B
D
E
1 2
F
1 2
12
A
HEL
B
C
D
E
F
1 2
3 4
G
3 4
3 4
SFV
N
D
Q
3 4
5 6
5
5 6
5
6
