Mounting The Tank Thermometer - Danfoss ThermoDual S Quick Manual

Quick Guide

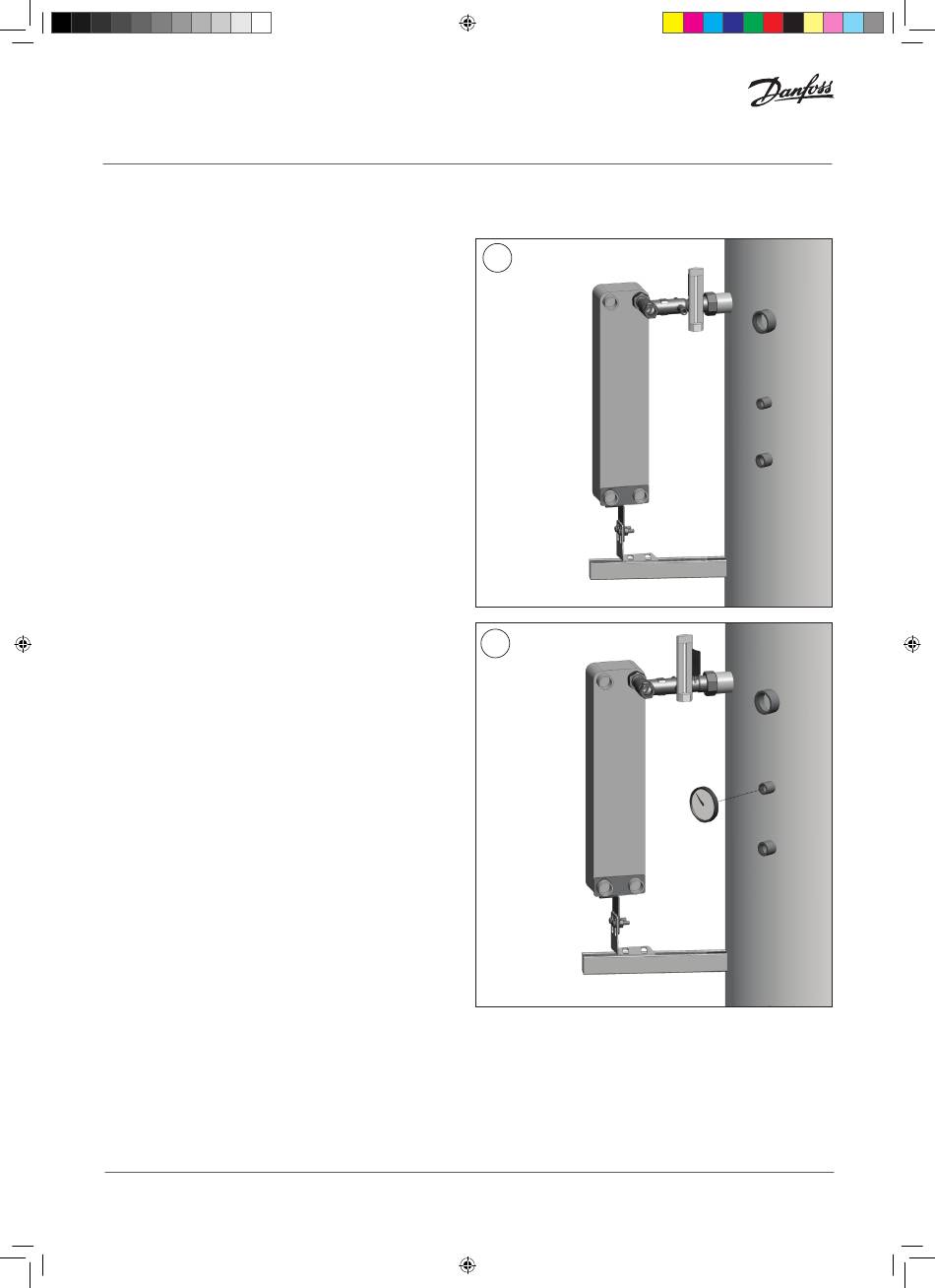

Carefully insert the capillary of the industrial thermometer
(turn it back and forth) as far as it will go into the immersion
Then fasten the thermometer from below with the existing
Now mount the tank thermometer: Seal the 200 mm
stainless steel pocket with a suitable sealing tape in the
DHS-SMTL / PL
VQJVA202_ThermoDual-S_181213.indd 5
ThermoDual®- S
pocket of the upper connection
piece (M) provided for this purpose.
screw in the thermometer housing.
socket provided (see tank data sheet)
and then insert the thermometer.
This can be fastened using
the side screw in the pocket head.
VQ.JV.A2.02 © Danfoss 12/2018
