Product Specifications - Syba SY-ENC50122 User Manual

1.

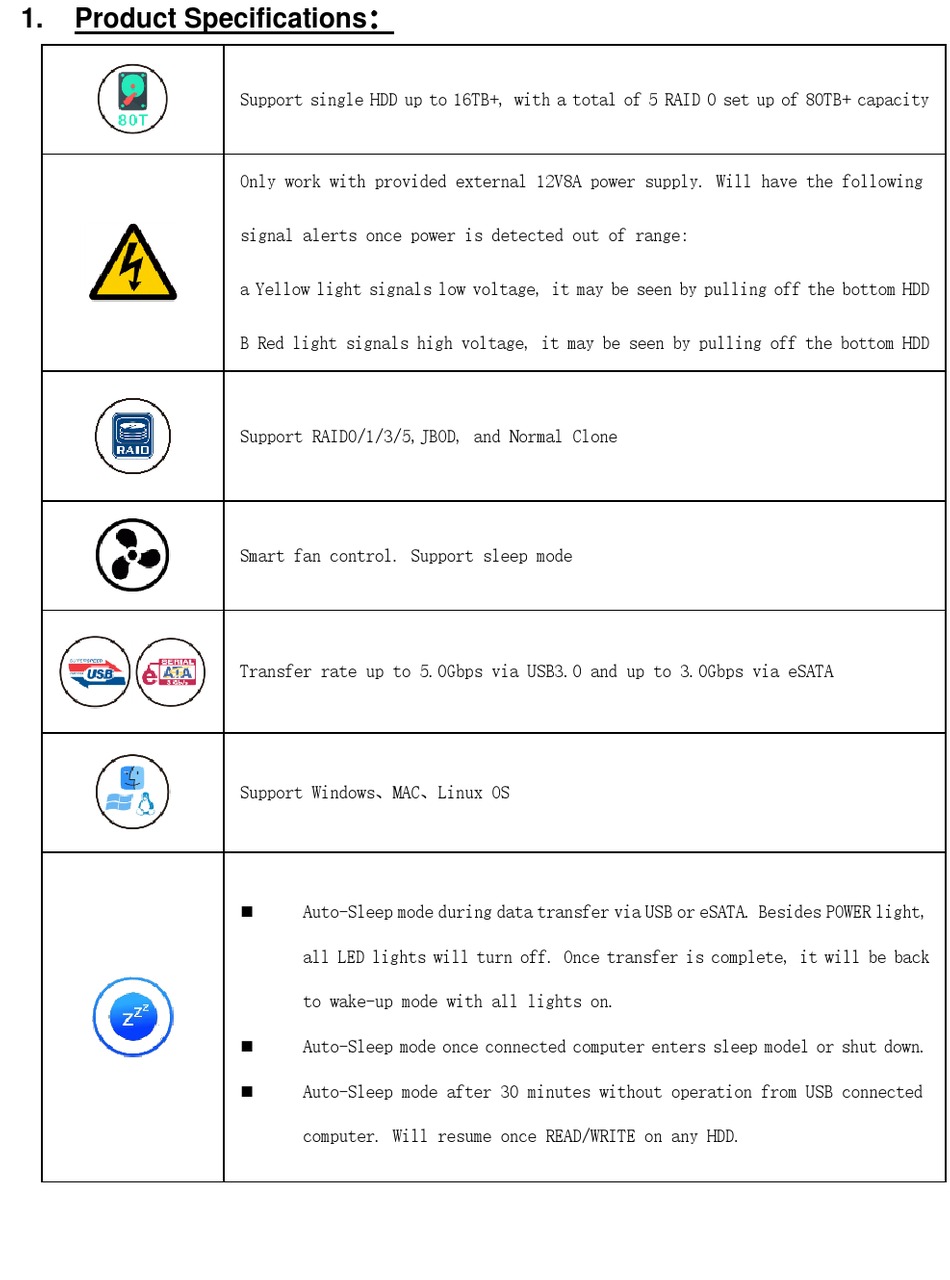

Product Specifications

Support single HDD up to 16TB+, with a total of 5 RAID 0 set up of 80TB+ capacity
Only work with provided external 12V8A power supply. Will have the following
signal alerts once power is detected out of range:
a Yellow light signals low voltage, it may be seen by pulling off the bottom HDD
B Red light signals high voltage, it may be seen by pulling off the bottom HDD
Support RAID0/1/3/5,JBOD, and Normal Clone
Smart fan control. Support sleep mode
Transfer rate up to 5.0Gbps via USB3.0 and up to 3.0Gbps via eSATA
Support Windows、MAC、Linux OS
◼
Auto-Sleep mode during data transfer via USB or eSATA. Besides POWER light,
all LED lights will turn off. Once transfer is complete, it will be back
to wake-up mode with all lights on.
◼
Auto-Sleep mode once connected computer enters sleep model or shut down.
◼
Auto-Sleep mode after 30 minutes without operation from USB connected
computer. Will resume once READ/WRITE on any HDD.
