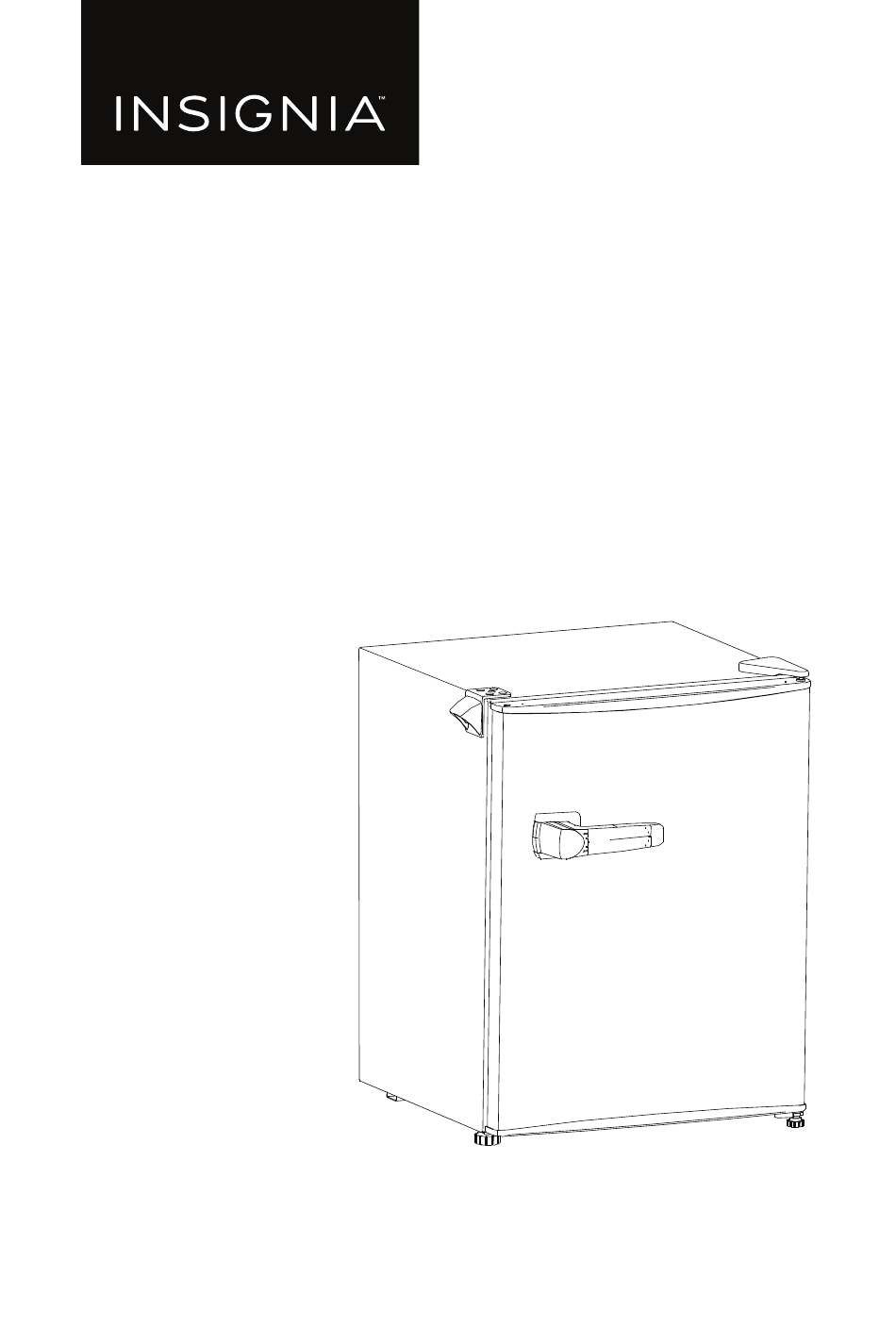

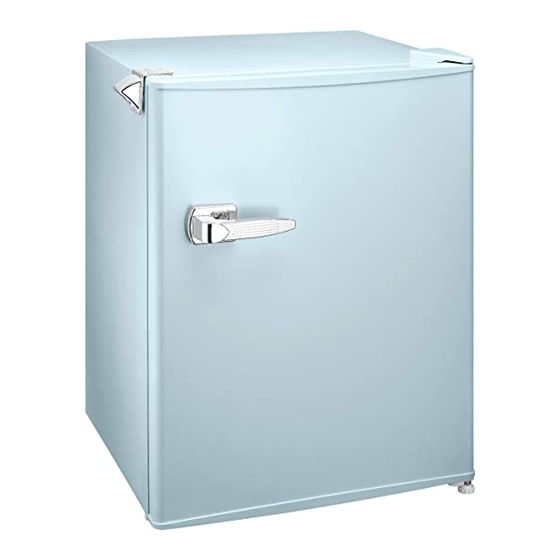

- Page 1 USER GUIDE 2.2 Cu. Ft. Retro Compact Refrigerator NS-CFR23BB1/NS-CFR23C1 Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Specifications ............17 ONE-YEAR LIMITED WARRANTY - INSIGNIA ......18... -
Page 3: Important Safeguards
2.2 Cu. Ft. Retro Compact Refrigerator IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your refrigerator. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your refrigerator. - Page 4 Refer all servicing to qualified service personnel. Servicing is required when your refrigerator has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into your refrigerator, your refrigerator has been exposed to rain or moisture, does not operate normally, or has been dropped.
-
Page 5: Grounding Requirement
2.2 Cu. Ft. Retro Compact Refrigerator If a component part is damaged, it must be replaced by the manufacturer, its service agent, or similar qualified persons in order to avoid a hazard. Follow local regulations regarding disposal of your refrigerator due to flammable refrigerant and gas. -
Page 6: Refrigerator Parts
Refrigerator parts Outside Top hinge Bottle opener Door handle Refrigerator door Leveling foot Leveling foot Inside Thermostat knob Shelves Door racks www.insigniaproducts.com... -
Page 7: Assembling The Door Handle And Bottle Opener
2.2 Cu. Ft. Retro Compact Refrigerator Assembling the door handle and bottle opener CAUTION: If you lay your refrigerator on its back or side for any length of time, wait for six hours after you stand it up again before you plug it in. Otherwise, you may damage internal components. -
Page 8: Installing Your Refrigerator
Align the grooves on the handle with the rails on the handle base, then slide the handle into the base. Rail Groove Installing your refrigerator Before using your refrigerator • Remove the exterior and interior packing. • Let your refrigerator stand upright for approximately four hours before connecting it to power. -
Page 9: Finding A Suitable Location
2.2 Cu. Ft. Retro Compact Refrigerator Finding a suitable location CAUTION: Your refrigerator isn’t designed for a recessed installation. 2 in. (5.1 cm) 2 in. 7.9 in. (5.1 cm) (20.1 cm) 7.9 in. (20.1 cm) • Place your refrigerator on a floor that is strong enough to support it when fully loaded. -
Page 10: Connecting Power
Connecting power Check your local power source. Your refrigerator requires a 110 V ~ 120 V, 60 Hz power supply. Your refrigerator should be correctly grounded for your safety. Use a receptacle that accepts the grounding prong. The power cord is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from your refrigerator. -
Page 11: Leveling Your Refrigerator
2.2 Cu. Ft. Retro Compact Refrigerator Leveling your refrigerator Your refrigerator must be level in order to function correctly. If your refrigerator is not leveled during installation, the door may not close or seal correctly, causing cooling, frost, or moisture problems. •... -
Page 12: Adjusting The Shelf
Adjusting the shelf Your refrigerator has two shelves. The top shelf is adjustable. The bottom shelf is fixed. Open the refrigerator door all the way. Lift the back of a shelf, then pull it out. To reinstall the shelf, align the shelf above the shelf rails with the back of the shelf tilted up. -
Page 13: Maintaining Your Refrigerator
2.2 Cu. Ft. Retro Compact Refrigerator Remove the rack from the door. To replace the rack, align the rack in the door, then press down on the rack until it clicks into place. Maintaining your refrigerator Your refrigerator is designed for year-round use with only minimal cleaning and maintenance. -
Page 14: Shutting Down Your Refrigerator
Shutting down your refrigerator Turn off your refrigerator and unplug it from the power outlet. Remove all food. Clean your refrigerator. Leave the door open slightly to avoid possible formation of condensation, mold, or odor. CAUTION: Use extreme caution with children. Your refrigerator shouldn’t be accessible to child's play. -
Page 15: Troubleshooting
2.2 Cu. Ft. Retro Compact Refrigerator Troubleshooting CAUTION: Don’t try to repair your refrigerator yourself. Doing so invalidates the warranty. PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION My refrigerator No power. • Make sure that the power cord is doesn’t work. plugged in. •... - Page 16 PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION My refrigerator makes Your refrigerator may Level your refrigerator with the unusual noises. not be level on the floor. leveling feet. The body of your Move your refrigerator out from the refrigerator is touching a wall.
-
Page 17: Specifications
2.2 Cu. Ft. Retro Compact Refrigerator Specifications External dimensions 25 × 18.7 × 17.6 in. (63.5 × 47.4 × 44.7cm) (H × W × D) Internal dimensions Refrigerator compartment: (H × W × D) 21.1 × 15.8 × 13.9 in. (53.7 × 40.2 × 35.4 cm) Refrigerator shelf (W ×... -
Page 18: One-Year Limited Warranty - Insignia
Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. - Page 19 Damage due to incorrect operation or maintenance • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults” •...
- Page 20 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. V3 ENGLISH ©2020 Best Buy. All rights reserved.
