PG‐40 BASE INDUSTRIAL FOOTING






G‐40 DETECTOR BASE
Installation and Maintenance Manual
IK‐E287‐001GB
IIIG Edition


















Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Polon-Alfa G-40

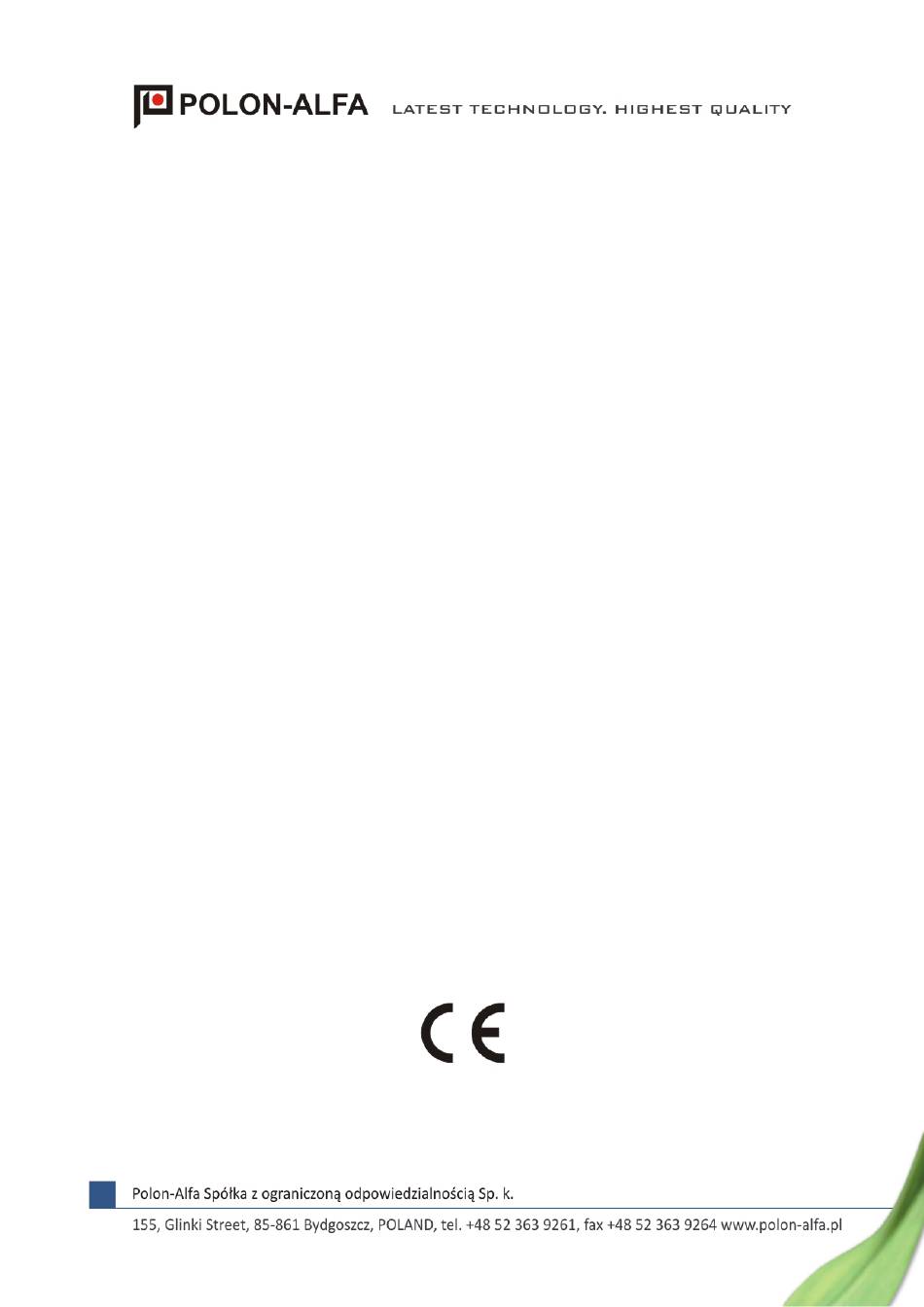

  • Page 1       G‐40 DETECTOR BASE  PG‐40 BASE INDUSTRIAL FOOTING      Installation and Maintenance Manual    IK‐E287‐001GB          IIIG Edition                                  ...
  • Page 2 The G‐40 Base and PG‐40 Base Industrial Footing covered by the present operation manual comply with the    requirements  of  the  AT‐0112‐0298/2011 Technical  Approval  issued  by  the  Scientific  and  Research  Centre  for Fire Protection (CNBOP).     The  G‐40  Base  and  PG‐40  Base  Industrial  Footing  have  been  approved  with  the  Certificate  of  Conformity  No. 2789/2011 confirming their compliance with the Technical Approval issued by CNBOP.    The Certificate may be downloaded from the manufacturer’s www.polon‐alfa.pl web site.    The national declaration of compliance No. 2PI/E287/2011 dated 15.12.2011 is available on request from  the manufacturer.     ...
  • Page 3: Technical Specifications

    IK-E287-001GB 1 PURPOSE  The G‐40 detector base is designed for the connection of 40 model range detectors in the detecting lines of  conventional control panels or 4043 and 4046 model range detectors in the detecting lines of the POLON  4000 series addressable control panels.  The  bases  are  intended  for  connecting  fire  detection  line  wires  routed  on  the  wall  plaster  (surface  mounting) or under it (semi‐flushed mounting) – the wires are placed in a special duct of max height at 10  mm). The G‐40 detector bases are dedicated for dry ceiling mounting.  In order to install the G‐40 base on a ceiling where steam condensation occurs or when it is mounted on  horizontal  suspension  strands,  additional  PG‐40  base  industrial  footing  should  be  used.  The  PG‐40  base  industrial footing is dedicated for connection to detection line wires (the wire is placed inside a duct of max  external diameter at Ø18 mm) routed on the plaster (surface mounting).   It is possible to utilise the G‐40 base as a suspended one using the interconnecting PG‐40 base industrial ...
  • Page 4: Design Description

    IK-E287-001GB 3 DESIGN DESCRIPTION  The G‐40 base is made of white plastic – on request it may be manufactured in different colours.  The base consists of a body embracing the main connector (with self‐clamping latches to connect detection  line wires) and an additional connector to fix the wire screens.  The base may be additionally equipped with the P‐40 masking ring (optional).  The mechanical structure of the G‐40 base is shown in Fig. 1 and Fig. 2.        Fig. 1 G‐40 base elements main view        Fig. 2 G‐40 detector base mechanical design  ...
  • Page 5 IK-E287-001GB The  PG‐40  base  industrial  footing  is  made  of  a  white  plastic  –  on  request  it  may  be  manufactured  in  different colours. The PG‐40 base industrial footing is a homogenous moulding – optionally it is equipped  with the PG7 sealing gland.    The  mechanical  structure  of  the  PG‐40 base industrial footing is shown in Fig. 3a and Fig. 3b; assembling  instructions for the suspended base are presented in Fig. 4.  The mechanical structure of the OZ‐40 protection cover is shown in Fig. 5.        Fig. 3a PG‐40 base industrial footing mechanical design        Fig. 3b PG‐40 base industrial footing and PG7 sealing gland main view ...
  • Page 6 IK-E287-001GB   Fig. 4 G‐40 suspended base assembling        Fig. 5 OZ‐40 protection cover ...
  • Page 7 IK-E287-001GB 4  G‐40 BASE INTEROPERATION WITH DETECTION LINE  The  G‐40  bases  ate  intended  for  interoperation  with  the  model  range  40  detectors  in  conventional  detection lines and with the 4046/6000 range detectors in the POLON 4000 system control panels detection  lines. The fig. 7 depicts the way of connection of the base into the POLON 4000 system detection line. The  fig. 8 shows how the bases should be installed in conventional control panel detection lines.  Continuity of a detection line is obtained only in the event all detectors are placed in their bases. The line  continuity may be achieved when the E287‐04.00 jumper (Fig. 6) is placed into the detector connector. The  jumper is optional and should be ordered separately.  Fig. 6 Jumper      Fig. 7 G‐40 base installation in detection lines of POLON 4000 fire alarm control panels ...
  • Page 8: Installation

    IK-E287-001GB   Fig. 8  G‐40 base installation in conventional control panel detecting lines    5 INSTALLATION     5.1 Initial installation  The  PG‐40  base  industrial  footing  should  be  mounted  on  the  ceiling  with  two  screws  placed  in extension  anchor bolts (Ø6 mm bolts are recommended). It is advised to drill the anchor bolt holes using a pattern  with  127  mm  hole  spacing.  Improper  hole  spacing  may  result  in  the  base  industrial  footing  deformation  when the screws are strongly tightened.  ...
  • Page 9 IK-E287-001GB The  PG‐40  suspended  version  is  installed  with  a  help  of  the  PG7  sealing  gland  ‐  Ø13mm  diameter  hole  should be drilled in the detector body where a cable of max Ø7 diameter is placed to.  The PSGW ceiling  suspended base is to be used for ceiling mounting.    5.2 Base installation  The  G‐40  base  installation  method  must  comply  with  the  type  of  the  basis  where  the  detector  is  to  be  mounted: ...
  • Page 10: Maintenance

    IK-E287-001GB 6 MAINTENANCE   The base and its industrial footing require no servicing after installation since they both are monitored by  the  fire  alarm  control  panel.  Periodical  inspections  of  bases  and  industrial  footings  are  carried  out  simultaneously with periodical detectors’ maintenance.     7 STORAGE  The G‐40 detector bases and PG‐40 base industrial footings should be stored in closed rooms at ambient  temperature between 0 C to + 40 C and relative humidity between 40 % and 80 %, (free of caustic gases  and vapours). Detector bases and base industrial footings should not be exposed to direct sun and heating  elements influence.  The  storage  period  of  the  detector  bases  and  base  industrial  footings  in  transport  packages  should  not  exceed 24 months. ...
