1. The slot structure is not included and must be provided by the user. Make sure that the
mounted UV light panel covers the standby projectile next to the launching projectile.
2. Mount the UV light panel to the slot structure. If the slot structure is metallic, make sure
to maximize the surface area that is in contact with the light panel as much as possible
and that the screw is tightly fastened to allow for optimal conduction. If the slot structure
is non-metallic, make sure it is properly mounted with heat sinks. Note that non-metallic
slot structures may melt at high temperatures.
3. Connect the UV light panel with the LED driver and then connect the XT30 port with the
power supply.

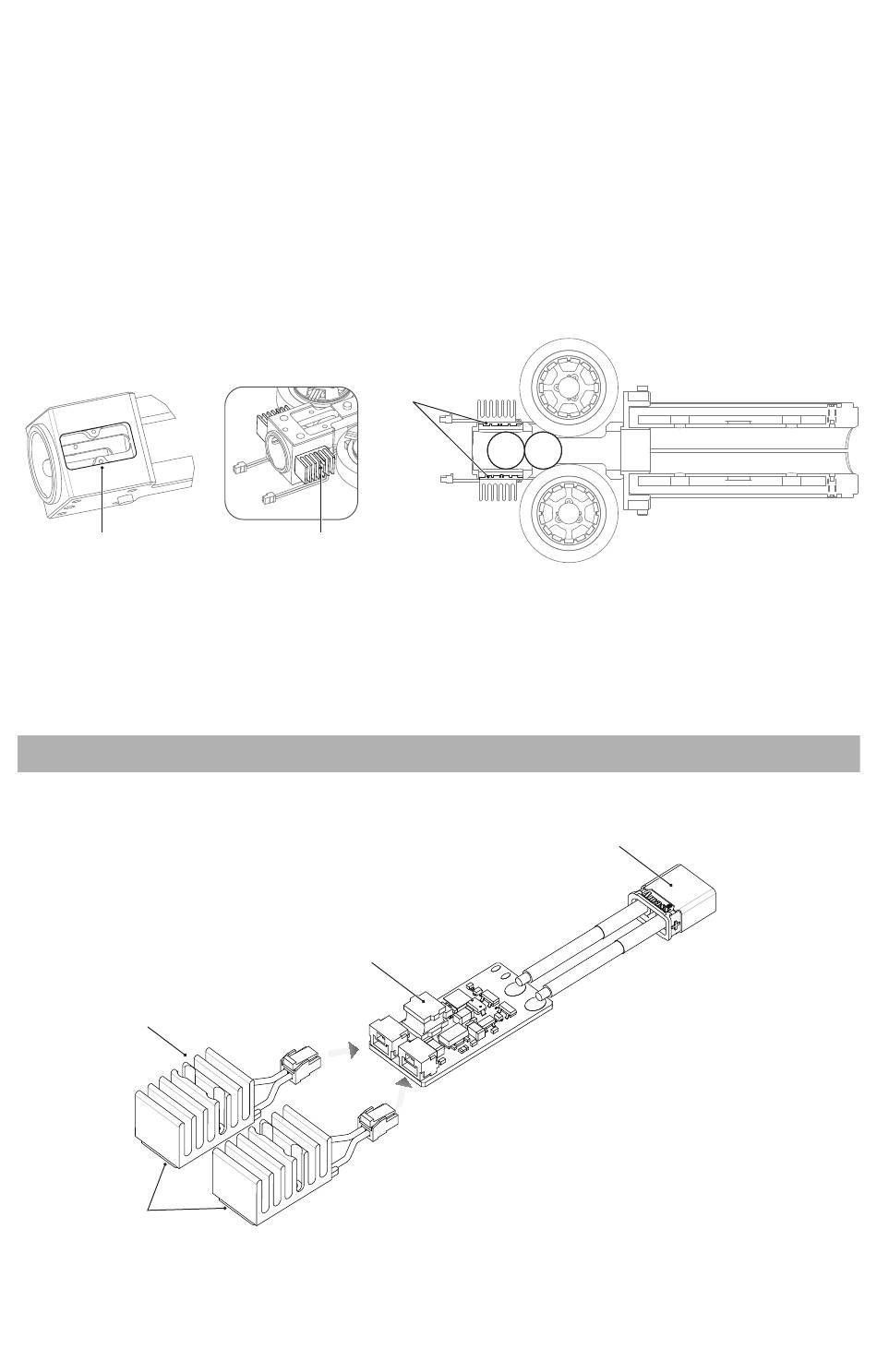

[1]
[1] Diagram of Slot
[2] Heat Sink

Connection

[3]
[4]
4
[3]
[2]
[3] UV Light Panel
[4] Standby Projectile
[2]
[4] [5]
[5] Launching Projectile
[1]
[1] XT30 Port
[2] LED Driver
[3] Heat Sink
[4] UV Light Panel
