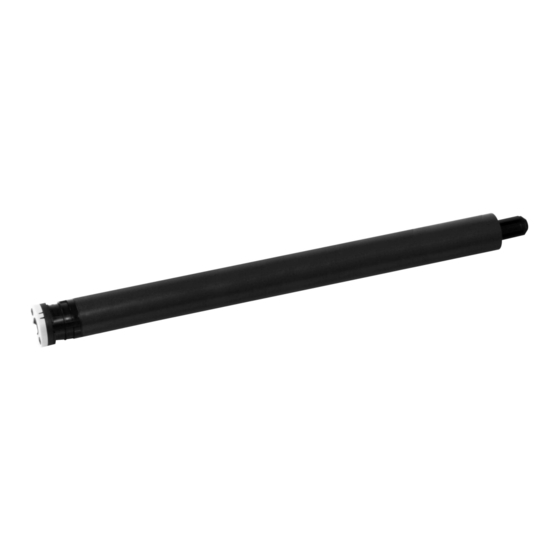

OXIMO BASIC WF RTS
EN
Instructions
SL
Navodila

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OXIMO BASIC WF RTS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SOMFY OXIMO BASIC WF RTS

Summary of Contents for SOMFY OXIMO BASIC WF RTS

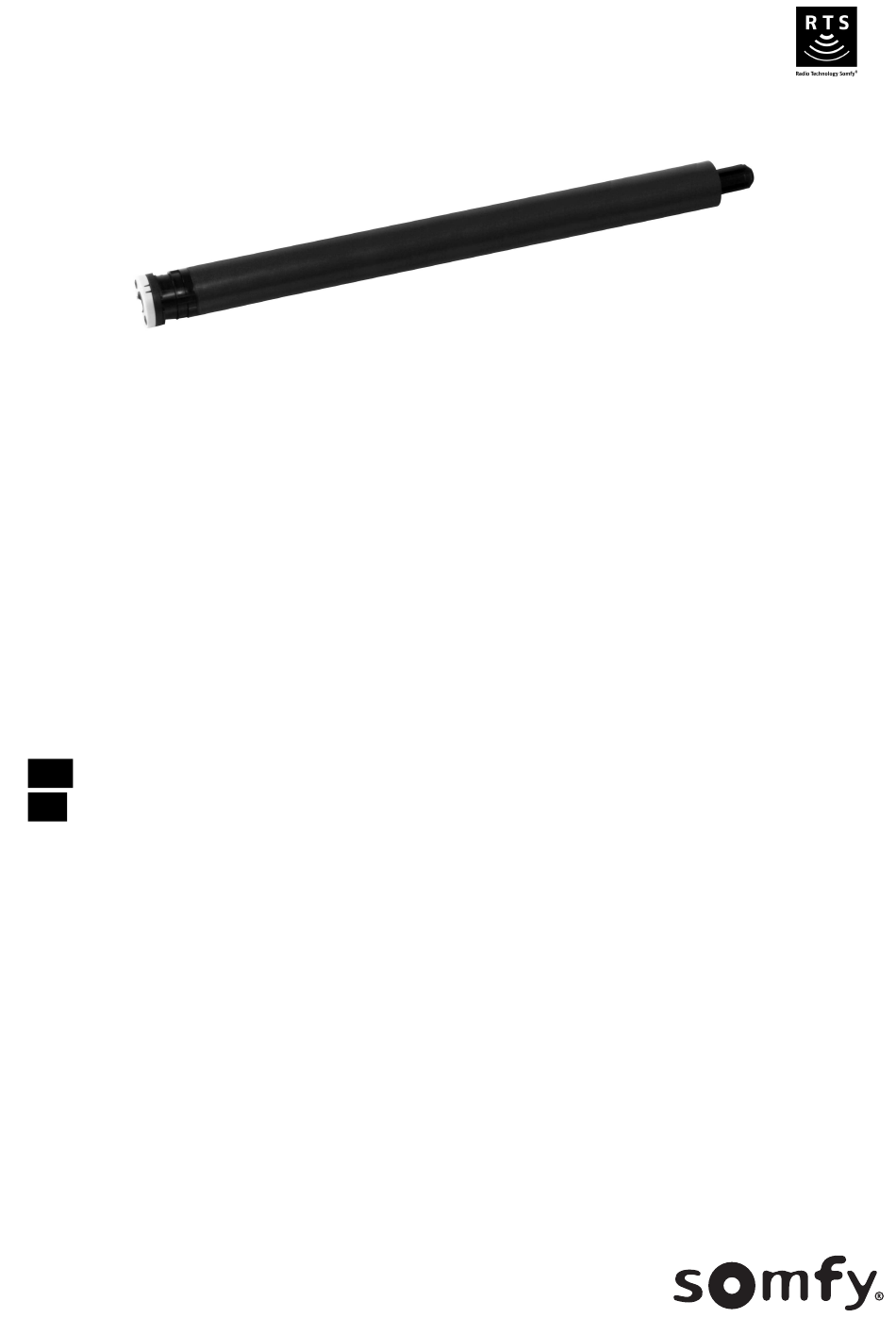

  • Page 1 OXIMO BASIC WF RTS Instructions Navodila...

  • Page 3: Table Of Contents

    OXIMO BASIC WF RTS ORIGINAL INSTRUCTIONS These instructions apply to all OXIMO BASIC WF RTS drives, the different versions of which are available in the current catalogue. CONTENTS 1. Prior information................................1.1. Field of application............................1.2. Liability ................................2. Installation..................................

  • Page 4: Prior Information

    - The three components that make up the kit must be installed on the same side of the roller shutter: 3 Nm or 6 Nm OXIMO BASIC WF RTS drive, OXIMO BASIC WF SOLAR PANEL, OXIMO BASIC WF BATT 8 CELLS.

  • Page 5: Assembly

    2.1.Assembly 2.1.1.Preparing the drive CAUTION • OXIMO BASIC WF RTS : interior diameter of the tube has to be Ø37 mm or greater. • The crown is mandatory. 1] Fit the accessories required to integrate the drive into the tube: ð...

  • Page 6: Wiring

    • Always make a loop in the power supply cable to prevent water from entering the drive. • The cables and connectors must be protected from the roller shutter movement. • Somfy recommends placing the connectors behind the end piece and fixing the cables inside the roller shutter casing.

  • Page 7: Commissioning

    Before commissioning, check that the drive is not in sleeping mode by pressing the Up or Down button. If the motorised product does not react, the drive is in sleeping mode : wake it up referring to Putting in stand-by/Waking up the drive  10]. © Copyright 2020 SOMFY ACTIVITES SA. All rights reserved.
  • Page 8 Check the robustness of the roller shutter and its fittings. NOTICE For information about the compatibility of the drive with the roller shutter and accessories, contact the roller shutter manufacturer or Somfy. © Copyright 2020 SOMFY ACTIVITES SA. All rights reserved.
  • Page 9 ð The lower end limit is memorized. The motorised product rises and stops in the upper position. 5] To confirm the end limits, press the my button until the motorised product briefly moves up and down. g The end limits are programmed. © Copyright 2020 SOMFY ACTIVITES SA. All rights reserved.
  • Page 10 - Or after disconnecting the battery for at least 20 s. and reconnect it. When the motorised product is unpacked, follow the instructions to wake up (activate) the drive and make the motorised product operational. Stand-by mode © Copyright 2020 SOMFY ACTIVITES SA. All rights reserved.
  • Page 11 2] Press the Up and Down buttons at the same time until the motorized product moves up and down. 3] Press the my button until the motorised product moves up and down. © Copyright 2020 SOMFY ACTIVITES SA. All rights reserved.

  • Page 12: Tips And Advice On Installation

    (protective film or cardboard). 2.4.2.Replacing a lost or broken Somfy control point NOTICE This reset deletes all the local control points, although the sensors end limit settings and favourite position (my) are retained.

  • Page 13: Use And Maintenance

    6] Press the PROG button on the Somfy local control point for≈ 7 s, until the PROG. motorised product moves up and down twice: g The drive is reset to the original configuration.

  • Page 14: Favourite Position (My)

    If the motorised product still does not work, contact a drive and home automation professional. 3.5.2.Obstacle detection The automatic obstacle detection function protects the motorised product and enables obstacles to be cleared: © Copyright 2020 SOMFY ACTIVITES SA. All rights reserved.

  • Page 15: Technical Data

    Thanks to the solar panel, the battery voltage will rise, and the drive will resume normal operation. However, there is an alternative solution to recharge the battery using the Somfy compatible external battery charger. 3.5.5.Replacing a lost or broken Somfy control point To replace a lost or broken control point, contact a drive and home automation professional.
  • Page 16 OXIMO BASIC WF RTS SOMFY ACTIVITES SA, F-74300 CLUSES as manufacturer hereby declares that the drive covered by these instructions and used as intended according to these instructions is in compliance with the essential requirements of the applicable European Directives and in particular of the Machinery Directive 2006/42/EC, and the Radio Directive 2014/53/EU.

  • Page 17: Uvod

    OXIMO BASIC WF RTS PREVEDENA NAVODILA Ta navodila veljajo za vse pogonske sisteme OXIMO BASIC WF RTS, katerih različice so naštete v tej knjižici. VSEBINA 1. Uvod ....................................17 1.1. Področje uporabe............................1.2. Odgovornost..............................2. Namestitev ..................................18 2.1. Montaža ................................

  • Page 18: Odgovornost

    Priporočila za namestitev: – Tri komponente kompleta morajo biti nameščene na isto stran rolete: pogonski sistem OXIMO BASIC WF RTS 3 Nm ali 6 Nm, OXIMO BASIC WF SOLAR PANEL, OXIMO BASIC WF BATT 8 CELLS. ali pogonski sistem OXIMO BASIC WF RTS 10 Nm, OXIMO BASIC WF SOLAR PANEL, Oximo WireFree Battery.

  • Page 19: Montaža

    2.1.Montaža 2.1.1.Priprava pogonskega sistema POZOR • OXIMO BASIC WF RTS : notranji premer cevi mora znašati Ø37 mm ali več. • Obroč je obvezen. 1] Namestite dele, ki so potrebni za vgradnjo pogonskega sistema v cev: ð Na pogonski sistem namestite obroč (a) in pogonsko kolo (b).

  • Page 20: Ožičenje

    • Na napajalnem kablu vedno naredite upogib, da preprečite vdor vode v pogonski sistem. • Kabli in konektorji morajo biti zaščiteni pred premikanjem rolet. • Družba Somfy predlaga, da konektorje namestite za zaključnim delom in kable pritrdite na notranji strani rolet. 2.2.1.Ožičenje pogonskega sistema 3 Nm ali 6 Nm z akumulatorsko baterijo OXIMO BASIC WF BATT 8 CELLS 1] Moški priključek pogonskega sistema (j) priključite na ženski priključek...

  • Page 21: Priprava Za Uporabo

    Pred uporabo preverite, da pogonski sistem ni v načinu spanja, tako da pritisnete gumb Gor ali Dol. Če se naprava na motorni pogon ne odzove na želeni način, je pogonski sistem v načinu spanja: zbudite ga po postopku, opisanem v poglavjuUporaba stanja pripravljenosti/Prebujanje pogonskega sistema [  24]. © Copyright 2020 SOMFY ACTIVITES SA. All rights reserved.
  • Page 22 Korak 4: Shranjevanje upravljalnika [} 24] Uporaba in vzdrževanje [} 27] POZOR Preverite namestitev rolet in pritrditvenih nastavkov. OBVESTILO Za informacije o skladnosti pogonskega sistema in rolet ter dodatkov se obrnite na proizvajalca rolet ali družbo Somfy. © Copyright 2020 SOMFY ACTIVITES SA. All rights reserved.
  • Page 23 5] Za potrditev nastavitev skrajnih položajev pomikanja držite gumb my, dokler se motorizirana naprava ne premakne gor in dol. g Skrajna položaja sta zdaj nastavljena. © Copyright 2020 SOMFY ACTIVITES SA. All rights reserved.
  • Page 24 Ko je motorizirana naprava razpakirana, upoštevajte navodila za prebujanje (aktivacijo) pogonskega sistema, s čimer bo motorizirana naprava začela delovati. Stanje pripravljenosti Istočasno pritisnite gumbe Gor, my in Dol upravljalnika, da se motorizirana naprava pomakne gor in dol. © Copyright 2020 SOMFY ACTIVITES SA. All rights reserved.
  • Page 25 1] Motorizirano napravo pomaknite na srednjo višino. 2] Istočasno pritisnite gumba Gor in Dol, da se motorizirana naprava pomakne gor in dol. 3] Držite gumb my, da se motorizirana naprava premakne gor in dol. © Copyright 2020 SOMFY ACTIVITES SA. All rights reserved.

  • Page 26: Namigi In Nasveti Za Namestitev

    7] Pritiskajte gumb PROG na novem upravljalniku, dokler se motorizirana naprava ne 2 s. pomakne gor in dol: novi upravljalnik je shranjen in vsi ostali upravljalniki so izbrisani iz pomnilnika. PROG. © Copyright 2020 SOMFY ACTIVITES SA. All rights reserved.

  • Page 27: Uporaba In Vzdrževanje

    (Če je motorizirana naprava v zgornjem ali spodnjem skrajnem položaju pomikanja, se na kratko premakne gor in dol.) 6] Držite Gumb PROG na lokalnem upravljalniku Somfy za 7 s, dokler se ne PROG. izvedeta dva pomika gor in dol na motorizirani napravi: g Pogonski sistem je ponastavljen na tovarniške nastavitve.

  • Page 28: Gumba Gor In Dol

    3.5.Namigi in nasveti za uporabo 3.5.1.Imate vprašanja o tej napravi? Težava Morebitni vzroki Rešitev Motorizirana naprava ne deluje. Akumulatorska baterija v upravljalniku je Po potrebi zamenjajte akumulatorsko skoraj prazna. baterijo upravljalnika. © Copyright 2020 SOMFY ACTIVITES SA. All rights reserved.

  • Page 29: Tehnični Podatki

    -20°C do +60°C Razred zaščite IP44 OBVESTILO Za dodatne informacije o tehničnih podatkih pogonskega sistema se obrnite na zastopnika družbe Somfy. Baterije in akumulatorje ločujte od ostalih odpadkov in jih oddajte na ustreznih zbirnih mestih, kjer bo poskrbljeno za njihovo recikliranje. ©...
  • Page 30 Skrbimo za okolje. Naprave ne odvrzite med gospodinjske odpadke. Oddajte jo na ustreznem zbirnem mestu, kjer bo poskrbljeno za njeno recikliranje. SOMFY ACTIVITES SA, F-74300 CLUSES kot proizvajalec izjavlja, da je pogonski sistem, naveden v teh navodilih in uporabljen v namene, ki so opisani v teh navodilih, skladen z bistvenimi zahtevami veljavnih evropskih direktiv, predvsem Direktive o strojih 2006/42/ES in Direktive o radijski opremi 2014/53/EU.
  • Page 31 © Copyright 2020 SOMFY ACTIVITES SA. All rights reserved.
  • Page 32 SOMFY ACTIVITES SA 50 avenue du Nouveau Monde F-74300 CLUSES www.somfy.com 5152625A...
