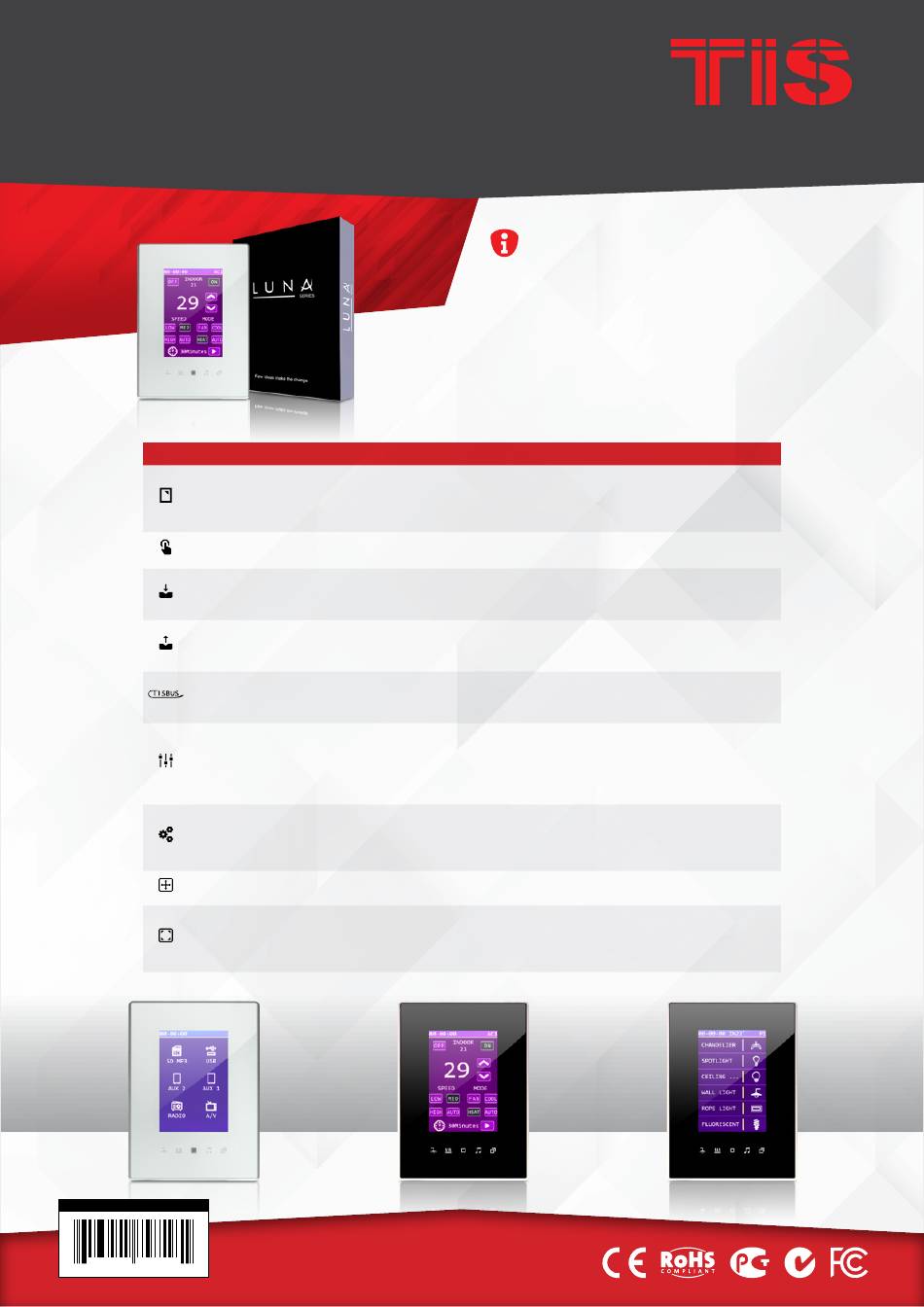

TIS LUNA TFT43 Installation Manual

INSTALLATION MANUAL
TIS LUNA TFT TOUCH PANEL
Model: LUNA-TFT43
LCD
Touch
Input
Output
TIS Bus
Operating and display
elements
Functions
Dimensions
Housing
BARCODE (UPC-A)
6 58921 79718 1
The Luna TFT panel has 3 page of layouts, each of
which covers 6 commands (18 switches total) for
limitless light control. It includes 2 pages for RGB
color control, can control up to 8 air conditioning
units, 2 floor heating units, music, curtains, moods,
and security control. It can also monitor the energy
meter, air quality, and weather station.
P R O D U C T S P E C I F I C AT I O N S
Size
Resolution
Contrast
Viewing angle
Active area
Touch Type
Temp sensor
IR receiver
Using Panel Addition
Using Panel Addition 3R
Using Panel Addition 3DL-12V
Using Panel Addition 2DL-IRE
Number of devices on 1 line
Bus voltage
Current consumption
LCD
touch buttons
Backlight
TIS bus
Upgrading
1 Press
Long Press
Double click
IR receiver
Width × length × height
Materials
Casing color
Internal Parts color
IP rating
Automation Made Easy
PRODUCT INFORMATION
3.5"
320*480 Pixels
500
160 degree
4.3"
Capacitive
Resistive Temp Sensor
TIS Infrared code receiver
2-3 Digital Input
3 Relay Output 3A/5A
12V DC 50mA Output
IR Emitter
Max. 64
12-32 V DC
<50 mA / 24 V DC
TFT full color
5 touch buttons for menu selection ...
2 White indicators
TIS Protocol messages and commands
By Rs485 upgrading kit.
ON/OFF/Scene
Dim or ramp the lights
Extra Scene
Music, scene, lights control
90mm (94mm peak) × 13mm × 129mm
PC anti fire / Glass in front
Silver plating frame. Glass white or black
Black & White
IP 50
