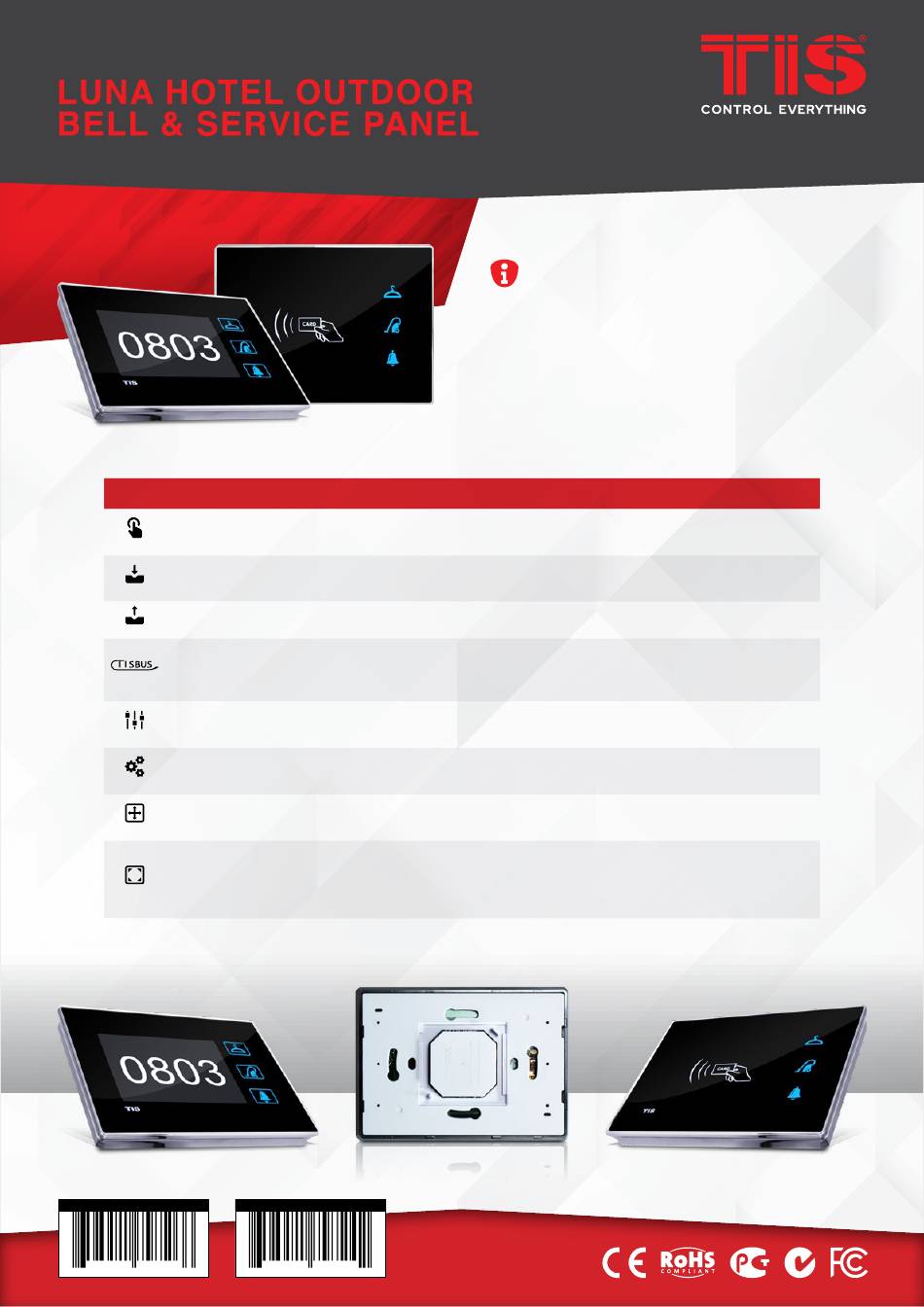

INSTALLATION MANUAL
Models: LUNA-OUT-3S-BELL, LUNA-OUT-3S-BELL-RF
Touch
Input
Output
TIS Bus
Operation
Functions
Dimensions
Housing
BARCODE (UPC-A)
6
58921 79726
6
P R O D U C T S P E C I F I C AT I O N S
Active area
Touch Type
Using panel addition
IF used the RF type
Low current relay
Number of devices on 1 line
Bus voltage
Current consumption
touch buttons
Backlight
Bell press
Access control (RF type)
Width × length × height
Materials
Casing color
Internal parts color
IP rating
BARCODE (UPC-A)
6
58921 79724
2
PRODUCT INFORMATION

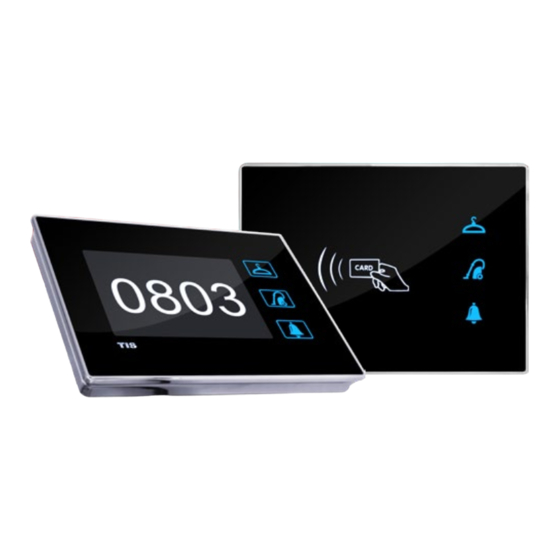

This product is a BUS-operated wall panel with
room number and services display and a touch
bell, designed for maximum convenience and
efficiency in hospitality facilities.
1 button for bell
Capacitive
4 Digital inputs
RF reader (Optional frequency)
3 Relay output 3A/5A
Max. 64
12-32 V DC
<25 mA / 24 V DC
1 touch button
3 RGB indicators + Room number white LEDs
Touch button
RF reader with relay output
94mm × 129mm × 13mm
Fireproof PC / Glass in front
Silver plating frame. Glass black
Black & White
IP 50
Advertisement
Table of Contents
Related Manuals for TIS LUNA-OUT-3S-BELL
Summary of Contents for TIS LUNA-OUT-3S-BELL
- Page 1 INSTALLATION MANUAL Models: LUNA-OUT-3S-BELL, LUNA-OUT-3S-BELL-RF PRODUCT INFORMATION This product is a BUS-operated wall panel with room number and services display and a touch bell, designed for maximum convenience and efficiency in hospitality facilities. P R O D U C T S P E C I F I C AT I O N S...
-
Page 2: Safety Instructions
SA , AUSTRALIA Wanchai, Hong Kong TIS Logo is registered trademark of TIS CONTROL. All of the specification are subject to change without notice. w w w . t i s c o n t r o l . c o m... - Page 3 SA , AUSTRALIA Wanchai, Hong Kong TIS Logo is registered trademark of TIS CONTROL. All of the specification are subject to change without notice. w w w . t i s c o n t r o l . c o m...
- Page 4 MODEL : LUNA-OUT-3S-BELL, LUNA-OUT-3S-BELL-RF INSTALLATION STEPS Turn off the main electrical source before installation. WARNING! HIGH VOLTAGE Connect the Cat5e TIS BUS wire to the Cat5e to the TIS BUS Network Panel Addition. Connect the other connection if needed Cat5e...
- Page 5 SA , AUSTRALIA Wanchai, Hong Kong TIS Logo is registered trademark of TIS CONTROL. All of the specification are subject to change without notice. w w w . t i s c o n t r o l . c o m...
- Page 6 SA , AUSTRALIA Wanchai, Hong Kong TIS Logo is registered trademark of TIS CONTROL. All of the specification are subject to change without notice. w w w . t i s c o n t r o l . c o m...
-
Page 7: Control Button
SA , AUSTRALIA Wanchai, Hong Kong TIS Logo is registered trademark of TIS CONTROL. All of the specification are subject to change without notice. w w w . t i s c o n t r o l . c o m... -
Page 8: Troubleshooting
Luna hotel outdoor bell & service panel MODEL : LUNA-OUT-3S-BELL, LUNA-OUT-3S-BELL-RF TROUBLESHOOTING The panel buttons’ LEDs do not Reason: The TIS 24V power supply is not turn ON, and the device is not connected to the TIS-BUS. powered. The wall panels fail to...
