MRC 0001645 Quick Start Manual

PROGRAMMING

This decoder supports all programming methods including: register, paged CV,
direct CV, and programming on the main (ops mode programming).
CV Register Description
CV1 R1 Short address
CV2 R2 Start voltage
CV3 R3 Acceleration
CV4 R4 Deceleration
CV5 --- Top voltage
Speed curve select (0=linear, 1=slow
CV6
increase at slow speed, 2=fast
--- R6 Page number
CV29 R5 Basic configuration
CV7 R7 Manufacturer version number
CV8 R8 Manufacturer ID
CV17 --- Long address upper byte
CV18 --- Long address lower byte
CV19 --- Advanced consist address
When CV21=0, all accessory functions w ill
CV21 ---
follow its ow n address. When CV21=1, all
functions w ill follow the consist address
CV50 --- Horn type
CV51 --- Horn volume
CV52 --- Bell type
CV53 --- Bell volume
CV54 --- Bell ring rate
CV55 --- Diesel rumble volume
CV56 --- Brake squeal volume
CV57 --- Dynamic brake volume
CV58 --- Air release volume
CV59 --- Air pump volume
CV60 --- Safety pop valve volume
CV61 --- Engine cooling fan volume
CV62 --- Coupling volume
CV63 --- Random noise volume
CV64 --- Rail wheel clack
CV105 --- User identification number
CV106 --- User identification number
CV113 --- Coupling fire volume
CV114 --- brake release volume
CV115 --- Auto brake squeal enable/disable
CV116 --- Coupling sound type
Diesel notch mode, 0=auto-notch
CV122 ---
3=manual notch
CV123 --- Prime mover sound (2- types)
Factory default setting: Programming to 1
CV125 ---
w ill restore all CV's to default setting
Note: Due to limitations in older DCC systems, some of the sound functions or
light effects functions may not accessable. ALSO, you might be limited to
factory default CV values.
Range Default

TROUBLE SHOOTING

1-127 3
The MRC 0001645 N diesel sound decoder should perform well with all DCC
systems. See your DCC system manual to learn how to program and operate the
0-32 0
decoder. For more information about register/CVs and their functions, please
0-32 0
refer to the NMRA DCC Standard & Recommended practices, RP-9.2.2 this is
0-32 0
available directly from the NMRA or their website at www.nmra.org.
0-32 32
Due to the nature of all sound decoders, the CV read back is not 100% correct. So
0-2 0
this feature is not supported in the decoder. This is not a defect of the decoder or
your DCC system.
--- ---
--- 2
Whenever the decoder doesn't work please use program track to re-program the
--- 32
loco address or program CV# 125 with value 1 to restore the decoder to factory
--- 143 setting. This should bring the decoder to life.
192-231 192

FCC COMPLIANCE

0-255 3
This device complies with the part 15 of FCC rule. Operation is subject to the
0-127 0
following two conditions. (1) This device may not cause harmful interference,
and (2) This device must accept any interference received, including interfer-
--- 0
ence that cause undesired operation.
0-16 4

RETURN PROCEDURE

0-3 3
If it should become necessary to return your decoder, unplug the decoder and
return the decoder only. Please include a letter (printed clearly) with your name,
0-6 3
address, a daytime telephone number, and a detailed description of the problem
0-7 3
you are experiencing. Please also include a $25.00 check for shipping and
0-50 3
handling. Be certain to return only the decoder.
0-3 3
Send the decoder to:
0-3 3
Model Rectifier Corporation
0-3 3
Attn: Parts & Service
80 Newfield Avenue
0-3 3
Edison, NJ 08837-3817 U.S.A
0-3 3
0-3 3
0-3 3
0-3 3
0-3 3
0-3 3
0-255 0
0-255 0
0-3 3
see chart 0
0-1 1(enable)
0-2, 0=off 1
0-3 0
0-1 0
--- 0
     2007 MODEL RECTIFIER CORPORATION
80 NEWFIELD AVENUE
EDISON, NJ 08837-3817
Printed in USA
N Gauge DCC/DC Synchronized
Diesel Sound Decoder with
28 Accessory Sound Functions
Item #0001645
Thank you for purchasing our highly advanced dual mode DCC/
DC locomotive sound decoder. Combined with any DCC
System or the MRC BlackBox, our new decoder with authentic
diesel sounds will truly make your model railroad come to life.
• Two selectable diesel prime mover types with
randomly associated locomotive sounds
•
User selectable 16 different horns and 8 bells
•
28 accessory functions allowing more sound control
than ever
• Programmable individual sound volumes
• 1.0 amp capacity
• Programmable for either 2-digit (1-127) or 4-digit
(1-9999) addresses
• Programmable start voltage
• Programmable acceleration rate
• Programmable deceleration rate
• Programmable top voltage
• Programmable 14, 28, 128 speed steps
• Selectable factory default speed curve
• Supports advanced consisting (CV19)
• Supports programming on the main (OPS mode)
• Compatible with NMRA DCC standards
• Complies with Part 15 of FCC
• 13mm speaker included
• PCB size: 90 x 14 x 4.2mm

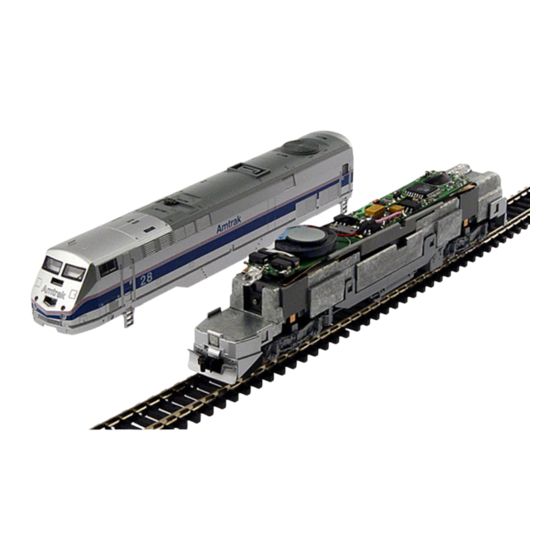

• Directly replaces Kato GE P42 and EMD E8/9 PC
Boards
