CO/Tech 36-6706 Instruction Manual

LED Under Cabinet Light
Art.no 36-6706, 36-6707
Please read the entire instruction manual before using the product
and then save it for future reference. We reserve the right for
any errors in text or images and any necessary changes made
to technical data. In the event of technical problems or other
queries, please contact our Customer Services.
Safety
The light source contained in this luminaire shall
only be replaced by the manufacturer or his service
agent or a similar qualified person. Caution to
the risk of electric shock during installation or
maintenance.
Only intended for indoor use.
• This product must only be installed by a qualified electrician.
• This product is only intended for indoor hard-wired
installation.
• The operating temperature of the luminaire is −30 to 40 °C.
Installation
1. Warning: Before beginning any electrical
installation always disconnect the power
to the circuit you are working on, either by
turning off the main circuit breaker or by
removing the fuse from the consumer unit.

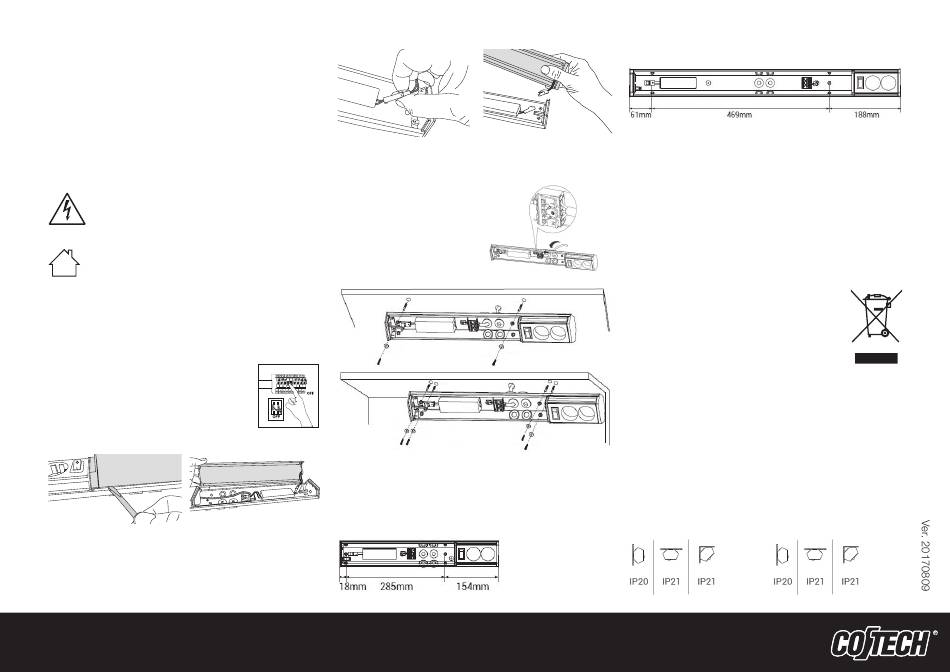

2. Carefully pry the lamp module away from the main
housing of the light fitting. Note: Make sure that the wires
connecting the lamp module and the housing are not
damaged.
GREAT BRITAIN • CUSTOMER SERVICE tel 020 8247 9300 e-mail customerservice@clasohlson.co.uk internet www.clasohlson.co.uk postal 10 – 13 Market Place, Kingston Upon Thames, Surrey, KT1 1JZ
3. Press down on the connector and disconnect the wires.
Place the lamp module to one side.
4. Pass the power supply
cable through one of
the grommets in the wall
of the housing. Be careful
not to damage the cable
entry grommet. Connect
the power supply cable to
the terminal block.
5. Screw the housing onto the mounting surface. It can be
mounted flat on a single surface or angled between two
surfaces at right angles to each other. Use the included
screws and plugs or another appropriate fastening method.
36-6706
36-6707
6. Reassemble the light fitting by first reconnecting the lamp
module to the housing at the connection which was
disconnected at step 3 above and then fitting the lamp
module back onto the housing.
Care and maintenance
• Use a dry cloth to wipe the light fitting clean.
• The lamps are non-replaceable. Never try to open
the lamp modules or modify the light fitting in any way.
Responsible disposal
This symbol indicates that this product should not
be disposed of with general household waste.
This applies throughout the entire EU. In order to
prevent any harm to the environment or health
hazards caused by incorrect waste disposal,
the product must be handed in for recycling so
that the material can be disposed of in a respon-
sible manner. When recycling your product, take it
to your local collection facility or contact the place
of purchase. They will ensure that the product is
disposed of in an environmentally sound manner.
Specifications
36-6706 36-6707
Rated voltage 220–240 V Rated voltage 220–240 V
AC, 50/60 Hz
Power 3.5 W Power
Length 457 mm Length
IP rating IP rating
AC, 50/60 Hz
9.5 W
718 mm
