CO/Tech IPC15A3A-D3UK Manual

LED Site Light
Art.no 18-1401, 18-1402 Model IPC15A3A-D3UK, IPC30SA3A-D3UK
36-7020, 36-7021 IPC15A3A-D3, IPC30SA4A-D3
Please read the entire instruction manual before use and then save it for
future reference. We reserve the right for any errors in text or images and any
necessary changes made to technical data. In the event of technical problems or
other queries, please contact our Customer Services.

Safety

• This product is extremely bright. Do not look directly into the light, doing so
could cause eye damage.
• Never let children play with the product.
• The product must only be connected to an electrical socket with a 230 V
power supply.
• The product must not be used in rooms where explosive gases or liquids are
used or stored.
• Treat the product with care and do not subject it to shocks or impacts.
• Never immerse the product in water or other liquid.
• The product must not be covered.
• Never try to open the housing, repair or modify the product in any way.
• Never use the product if your hands are moist or wet.
• Never use the product if it, its mains lead or plug is damaged in any way.
• All repairs must be carried out by qualified service technicians using genuine
spare parts.
• The mains lead should be checked regularly. If the mains lead is damaged in
any way it must be replaced by a qualified electrician.
The light source of the light fitting must only be replaced by a qualified electrician.

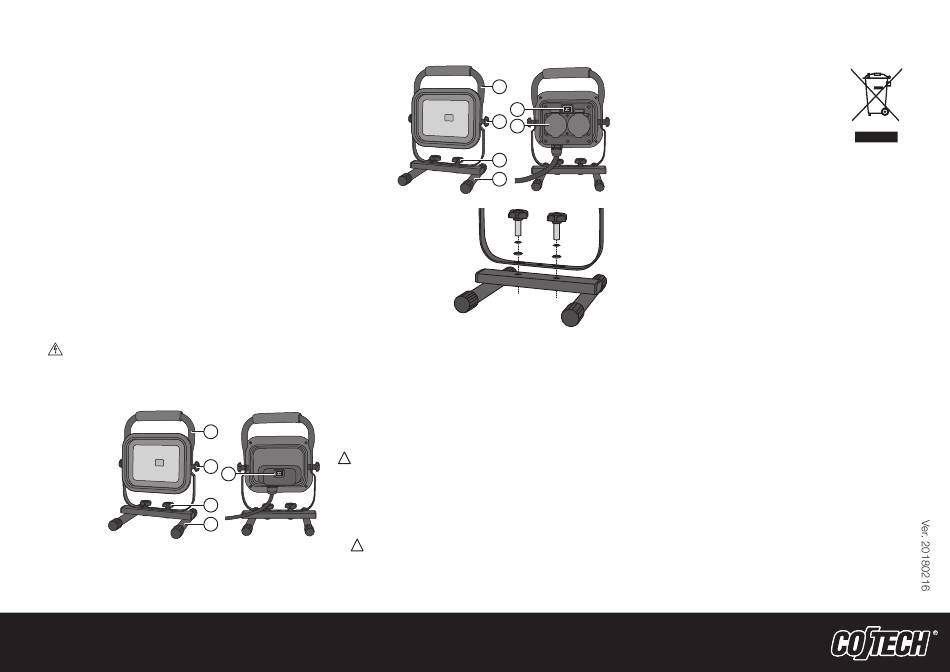

Product description

36-7020, 18-1401, 18-1402
1. Handle
2. Adjustment
screws (one
on each
side)
3. Fastening
screw
4. Base
5. [ l/0 ] On/off
switch
GREAT BRITAIN • CUSTOMER SERVICE tel 020 8247 9300 e-mail customerservice@clasohlson.co.uk internet www.clasohlson.co.uk postal 10 – 13 Market Place, Kingston Upon Thames, Surrey, KT1 1JZ
36-7021
1. Handle
2. Adjustment
screws (one
on each
side)
3. Fastening
screw
4. Base
5. [ l/0 ] On/off
switch
6. 2 × 230 V
socket

Assembly

Attach the site light to
the base using the fastening
screws and the washers.
Instructions for use
1. Connect the mains lead to a 230 V power point.
2. Adjust the lamp housing to the desired angle.
3. Switch the site light on using the power switch (5).
4. Switch off and unplug the site light after use.
230 V power take-off socket (only 36-7021)
The total combined load of any power tools connected to the power take off
1
sockets (6), must not exceed 2300 W.

Important

2
5
The power switch next to the sockets only controls the site light, not the power
take-off sockets.
3

Care and maintenance

4
• Switch the site light off and unplug it from the electrical outlet before wiping it
clean with a dry cloth.
• Important: If the glass on the front of the site light is damaged, it must
be replaced before the light is used again. The site light must not be used if
the glass is damaged or missing.
Responsible disposal
This symbol indicates that this product should not be
disposed of with general household waste. This applies
1
throughout the entire EU. In order to prevent any harm to
the environment or health hazards caused by incorrect waste
5 disposal, the product must be handed in for recycling so that
the material can be disposed of in a responsible manner.
2
6
When recycling the product, take it to your local collection
facility or contact the place of purchase. They will ensure that
the product is disposed of in an environmentally sound manner.
3

Specifications

4
36-7020, 18-1401
Rated voltage
Power
Colour
Light source
Colour temperature
Colour rendition
Beam angle
IP rating
Operating temperature
Mains cable
Size
36-7021
Rated voltage
Power
Power take-off sockets
Colour
Light source
Colour temperature
Colour rendition
Beam angle
IP rating
Operating temperature
Mains cable
Size
18-1402
Rated voltage
Power
Colour
Light source
Colour temperature
Colour rendition
Beam angle
IP rating
Operating temperature
Mains cable
Size
220–240 V AC, 50/60 Hz
15 W
Black
COB-LED, 1270 lm (non-replaceable)
4000 K
> 80 Ra
120°
IP44
−20 to 40 °C
1.8 m, H05RN-F3G1.0 mm²
25 × 17.5 × 16.5 cm
220–240 V AC, 50/60 Hz
30 W
Earthed, max 2300 W combined total
Black
COB-LED, 2550 lm (non-replaceable)
4000 K
> 80 Ra
120°
IP44
−20 to 40 °C
1.8 m, H05RN-F3G1.0 mm²
28 × 20.5 × 18.5 cm
220–240 V AC, 50/60 Hz
30 W
Black
COB-LED, 2550 lm (non-replaceable)
4000 K
> 80 Ra
120°
IP44
−20 to 40 °C
1.8 m, H05RN-F3G1.0 mm²
28 × 20.5 × 18.5 cm
