MASTER FEATURES
Note: It is recommended that the MULTIMIX
FIREWIRE be turned off before connecting and
disconnecting any sources to the inputs of the unit.
However, do not turn off the MultiMix FireWire once
you have established a connection to the computer.

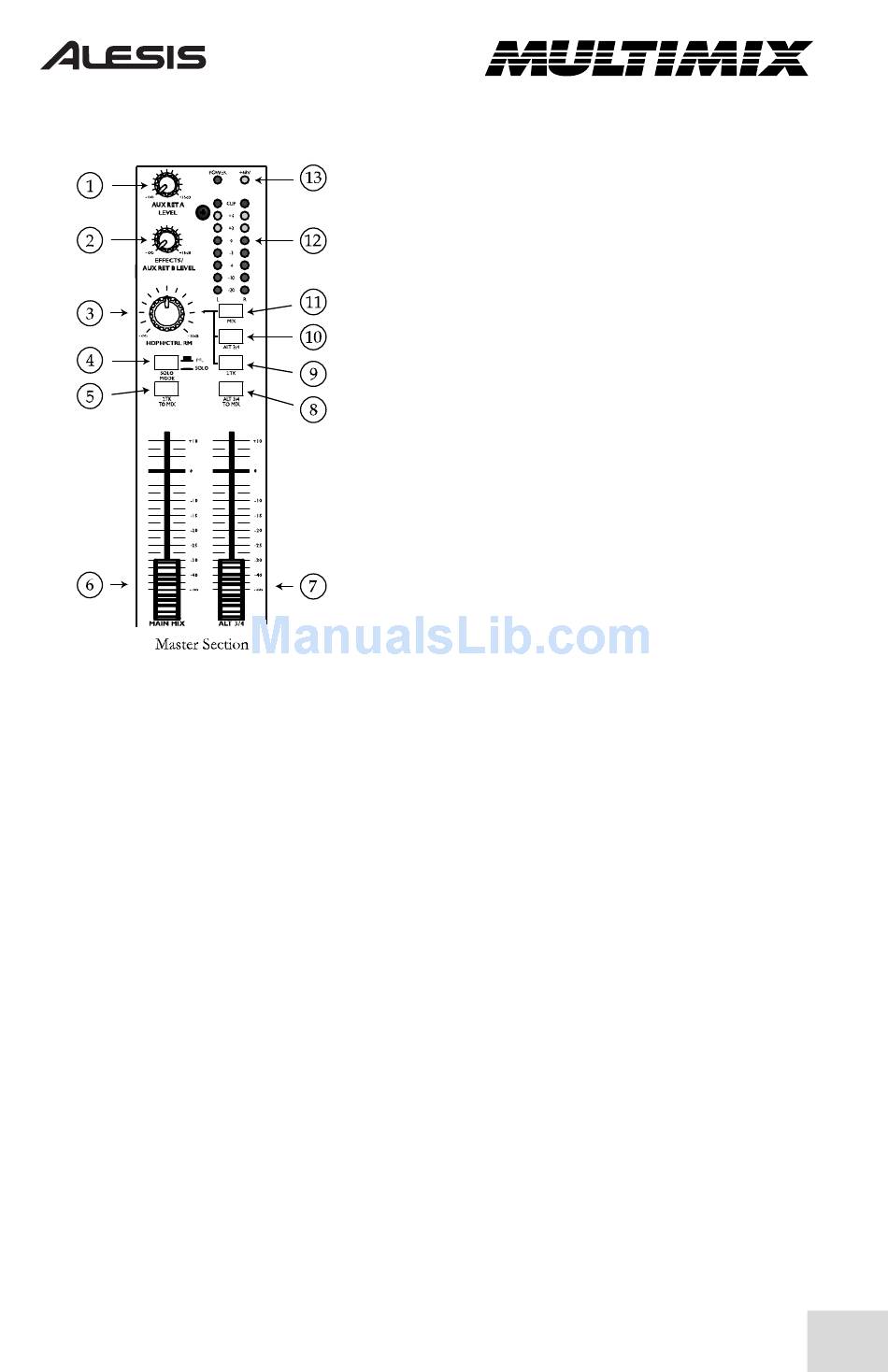

1. AUX RET A: Controls the signal level that returns
from AUX A.
2. EFFECTS/AUX RET B: Controls the signal level of
the internal effects or the level returning from AUX B if
in use.
3. HDPH/CTRL RM: Controls the level that is sent to
the PHONES or CTRL RM outputs.
4. SOLO MODE: Switches the solo'd channel signals
from pre-fader to post-fader listen.
5. 2TK TO MIX: Routes the 2TK input as well as the
stereo return from the computer to the MAIN faders.
6. MAIN MIX: Controls the level of the MAIN
OUTPUTS.
7. ALT 3/4: Controls the level of the ALT 3/4
OUTPUTS.
8. ALT 3/4 TO MIX: Routes the ALT 3/4 signal to the
MAIN MIX output.
9. 2TK SWITCH: Routes the 2TK input as well as the
stereo return from the computer to the HDPH /CTRL
RM output.
10. ALT 3/4 SWITCH: Routes the ALT 3/4 signal to the
HDPH/CTRL RM output.
11. MIX SWITCH: Routes the MAIN MIX signal to the
HDPH/CTRL RM output.
12. LED METERS: Monitors the audio signal level.
13. +48V LED: Indicates that the PHANTOM POWER is
enabled for the MIC inputs.
