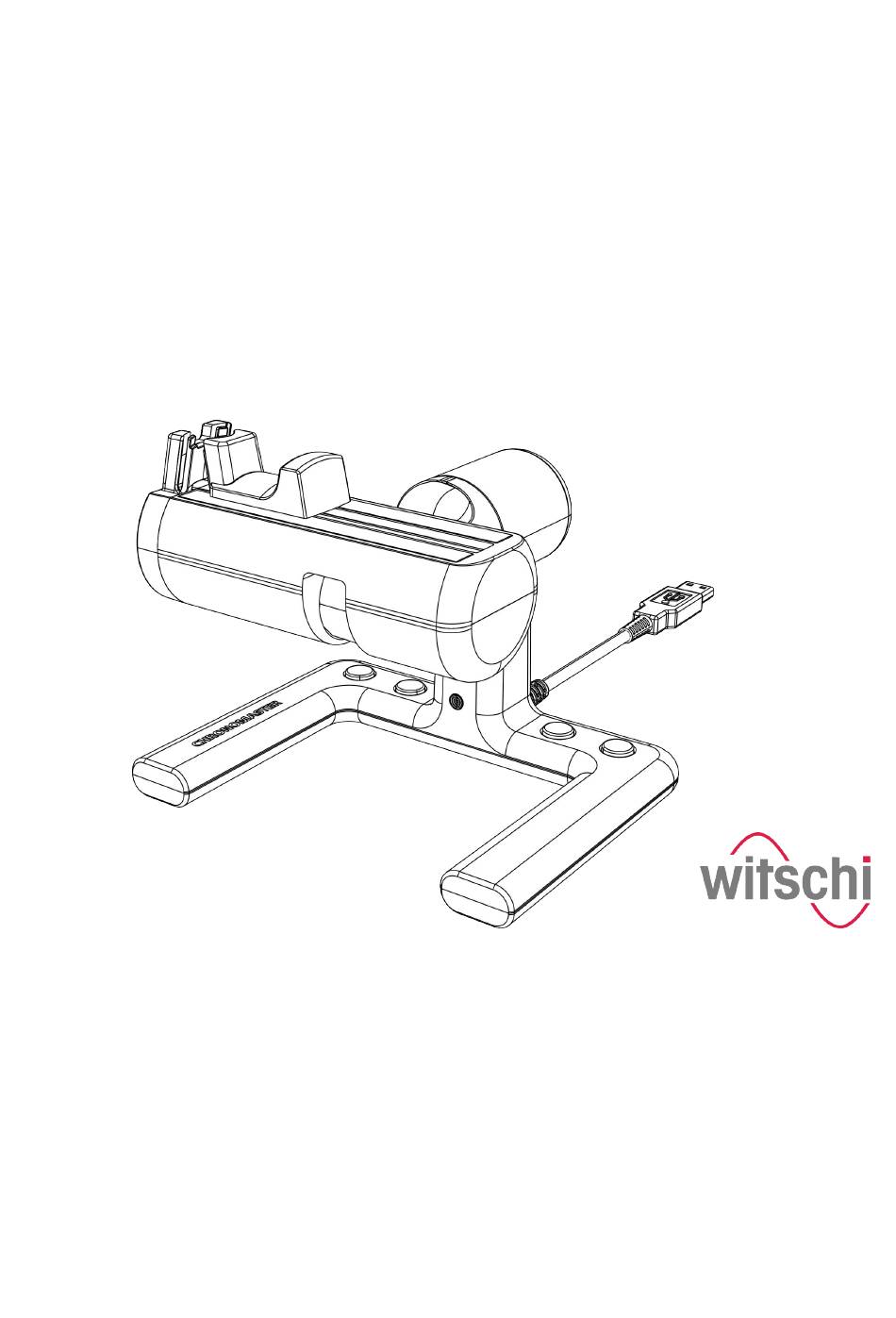

- Page 1 Operating instructions Precision measuring device ChronoMaster Read the instructions prior to performing any task!
- Page 2 Bahnhofstrasse 26 3294 Büren a.A. Switzerland Telephone: +41 32 352 05 00 Fax: +41 32 351 32 92 Email: welcome@witschi.com Internet: www.witschi.com Translation of the original operating instructions Wits-39771-CH, 2, en_GB © 2017 Witschi Electronic AG Precision measuring device ChronoMaster 01.09.2020...
- Page 3 In addition, the local health and safety regulations and general safety rules for the area in which the ChronoMaster is used apply. Illustrations in this document are for a basic understanding and may deviate from the actual design.
-
Page 4: Table Of Contents
21 4.3 Controlling the measurement using control keys.. 25 4.4 Monitoring and configuring the measurement..26 Transportation and storage of the ChronoMaster..27 5.1 Shutting down the ChronoMaster......27 5.2 Transportation and storage of the Chrono- Master................27 Maintenance and cleaning of the ChronoMaster... -
Page 5: Product Description

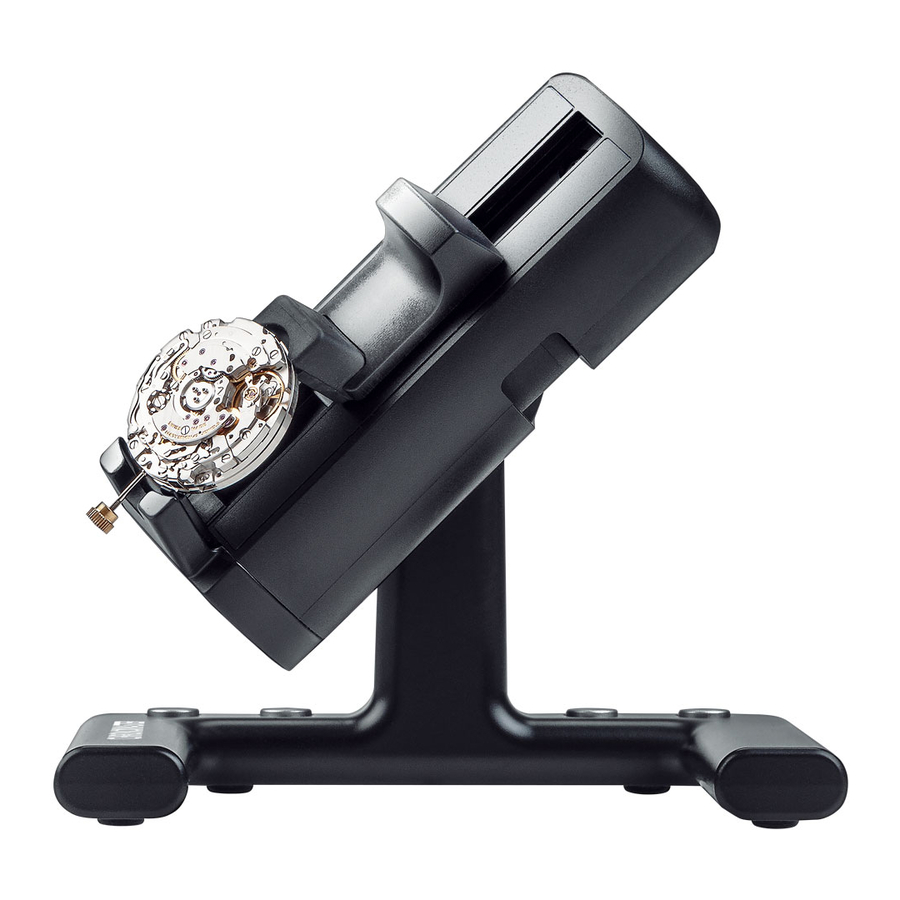

• Ä Chapter 4.2 “Positioning the watch and starting a measurement automatically” on page 21 USB cable for connecting the ChronoMaster to the PC or tablet computer • Ä Chapter 3.4 “Connecting the ChronoMaster” on page 20 Switching screw for setting the ChronoMaster for right-handers or left-handers 01.09.2020... - Page 6 Chapter 4.2 “Positioning the watch and starting a measurement automatically” on page 21 Measuring options The ChronoMaster is a precision measuring device for meas- uring the rate deviation, the amplitude and the beat error of mechanical watches. The compact microphone has integrated measurement electronics.
- Page 7 Controlling the measurements A USB cable is used to connect the ChronoMaster to the PC or tablet computer. The measurements are controlled using the corresponding “Chronoscope Service” display software.
-
Page 8: Scope Of Delivery
1.2 Scope of delivery The scope of delivery consists of the ChronoMaster and a USB flash drive with the following contents: • “Chronoscope Service” display software • Software manual in German, French, English, Spanish and Italian as PDF file Information on the display software... - Page 9 Further information on the measuring modes is to be found in the corresponding software manual. Display modes The “Chronoscope Service” display software provides two dif- ferent display modes for the ChronoMaster and ChronoMaster PRO versions: • Continuous diagram recording •...
-
Page 10: Technical Data
Connect device for the following functions to PC or tablet computer: • Power supply • Data transmission • Controlling measurements Dimensions and weight Data Value Unit Width 130 mm Height 110 mm Depth 110 mm Weight 180 g Precision measuring device ChronoMaster 01.09.2020... - Page 11 4 GB USB interface 2.0, type A Display Minimum resolution: 1366 x 768 pixels Operating conditions Data Value Unit 10 - 50 °C Temperature range Relative humidity, maximum 10 - 80 %, non- con- densing 01.09.2020 Precision measuring device ChronoMaster...
-
Page 12: Safety
Safety This section provides an overview of all the important safety aspects that ensure personal protection and safe and trouble- free operation of the ChronoMaster. There are additional, task- specific warnings in the sections on the individual life cycle phases. -
Page 13: Risk Of Material Damage
(repère). With the aid of the clamping jaws, the ChronoMaster is capable of testing mechanical wrist watches of all sizes. Its intended use includes compliance with all the information in this document. -
Page 14: Owner's Responsibilities
Any use beyond or other than the intended use shall be con- sidered misuse. NOTICE! Material damage due to misuse! Misuse of the ChronoMaster can result in mate- rial damage. – Never immerse the device in water or other liquids. Always keep the device away from rain and wet conditions. -
Page 15: Personnel Qualifications
The operator may only perform tasks that go beyond normal operation where this is provided for in the operating instructions and the owner has specifically entrusted the operator with such tasks. 01.09.2020 Precision measuring device ChronoMaster... -
Page 16: Commissioning The Chronomaster
Commissioning the ChronoMaster 3.1 Unpacking the ChronoMaster Delivery The ChronoMaster is delivered by a local logistics company. All the components included in the scope of delivery are delivered together in a single package. Transport inspection Upon receipt of the delivery, check it immediately to ensure that it is complete and undamaged. -
Page 17: Requirements For The Location
– Install the USB cable so that it cannot be damaged by external influences. – Never operate the device in an environment with a high level of humidity. 01.09.2020 Precision measuring device ChronoMaster... -
Page 18: Installing The Software
Notes on installation – The “Chronoscope Service” display software must be installed on the PC or tablet com- puter before the ChronoMaster is connected. – To install the “Chronoscope Service” display software, administrator rights are required for the PC or tablet computer. - Page 19 Start the installation (Fig. 4). Fig. 4: Installing the software Software updates Information on possible software updates is provided on the manufacturer’s website. 01.09.2020 Precision measuring device ChronoMaster...
-
Page 20: Connecting The Chronomaster
Fig. 5: Starting “Chronoscope Service” Fig. 6: Connecting the ChronoMaster • ð The ChronoMaster is connected to the PC or tablet computer. • The ChronoMaster is identified by the display soft- ware and executed there (Fig. 7). Fig. 7: ChronoMaster identified by the display software Precision measuring device ChronoMaster 01.09.2020... -
Page 21: Performing A Measurement
Distortion of measurement results! There is a risk of the distortion of measurement results if the watch or the clockwork is not clamped correctly. – Make sure that the watch or the clockwork is clamped correctly. 01.09.2020 Precision measuring device ChronoMaster... - Page 22 Personnel: • Operator Prerequisites: • The ChronoMaster is connected to the PC or tablet com- puter. • The “Chronoscope Service” display software has been started. Pull the clamping jaw (Fig. 8/1) outwards and hold it. Fig. 8: Tightening the clamping jaws...
- Page 23 • ð The complete watch or the clockwork with cup is clamped. • The LED on the ChronoMaster (Fig. 11/2) flashes at the same frequency as the watch beats. • The measuring process starts automatically (Fig. 12). Alternatively, the measurement can be started via the “Restart”...
- Page 24 Personnel: • Operator Prerequisites: • The ChronoMaster is connected to the PC or tablet com- puter. • The “Chronoscope Service” display software has been started. Pull the clamping jaw (Fig. 13/1) outwards and hold it. Fig. 13: Tightening the clamping...
-
Page 25: Controlling The Measurement Using Control Keys
4.3 Controlling the measurement using control keys To operate the software, the ChronoMaster has 4 control keys (Fig. 17). The following functions are assigned to the control keys: Function Program selection, select next lower program. -
Page 26: Monitoring And Configuring The Measurement
Pausing and resuming the measurement • Printing the measurement results • Creating screenshots • Restarting a measurement Information in the software manual Information on monitoring and configuring the measurements is to be found in the corre- sponding software manual. Precision measuring device ChronoMaster 01.09.2020... -
Page 27: Transportation And Storage Of The Chronomaster
Disconnect the USB cable (Fig. 18/1) at the USB plug from the USB port of the PC or tablet computer (Fig. 18/2). Fig. 18: Shutting down the Chrono- Master 5.2 Transportation and storage of the ChronoMaster Improper transport NOTICE! Risk of material damage due to improper trans- port! In the event of improper transport, the device may fall or topple. - Page 28 – Store the device at a relative humidity of between 10 % and 80 % (non-condensing). Requirement: • The ChronoMaster is shut down ( Ä Chapter 5.1 “Shutting down the ChronoMaster” on page 27). Pack the device in its original packaging.
-
Page 29: Maintenance And Cleaning Of The Chronomaster
– Keep moisture away from live parts. 6.2 Maintenance schedule Interval Maintenance work Personnel Daily Clean the ChronoMaster with a microfibre cloth. Operator Calibration instruction Regular calibration of the device ensures that measurement results are reliable. We recommend having the device calibrated and its functionality checked once a year. -
Page 30: Troubleshooting
NOTICE! Damage due to improper rectification of mate- rial damage! The improper rectification of material damage to the ChronoMaster can result in additional material damage. – Stop operating the device in the event of material damage. – Only allow Customer Service to repair the device. -
Page 31: Chronomaster Disposal
– Only have authorised specialists dispose of the device. – If in doubt about environmentally sound dis- posal, contact your local authority or a spe- cialist waste disposal company. 01.09.2020 Precision measuring device ChronoMaster... -
Page 32: Index
......27 ChronoMaster PRO ..... . . 7 storage . - Page 33 Owner’s obligations ..... 14 Troubleshooting ......30 01.09.2020 Precision measuring device ChronoMaster...
- Page 34 USB port ......10 Witschi Token Installer ....7 Precision measuring device ChronoMaster 01.09.2020...
-
Page 35: Appendix
Appendix 01.09.2020 Precision measuring device ChronoMaster... -
Page 36: A Declaration Of Conformity
A Declaration of conformity Precision measuring device ChronoMaster 01.09.2020...
