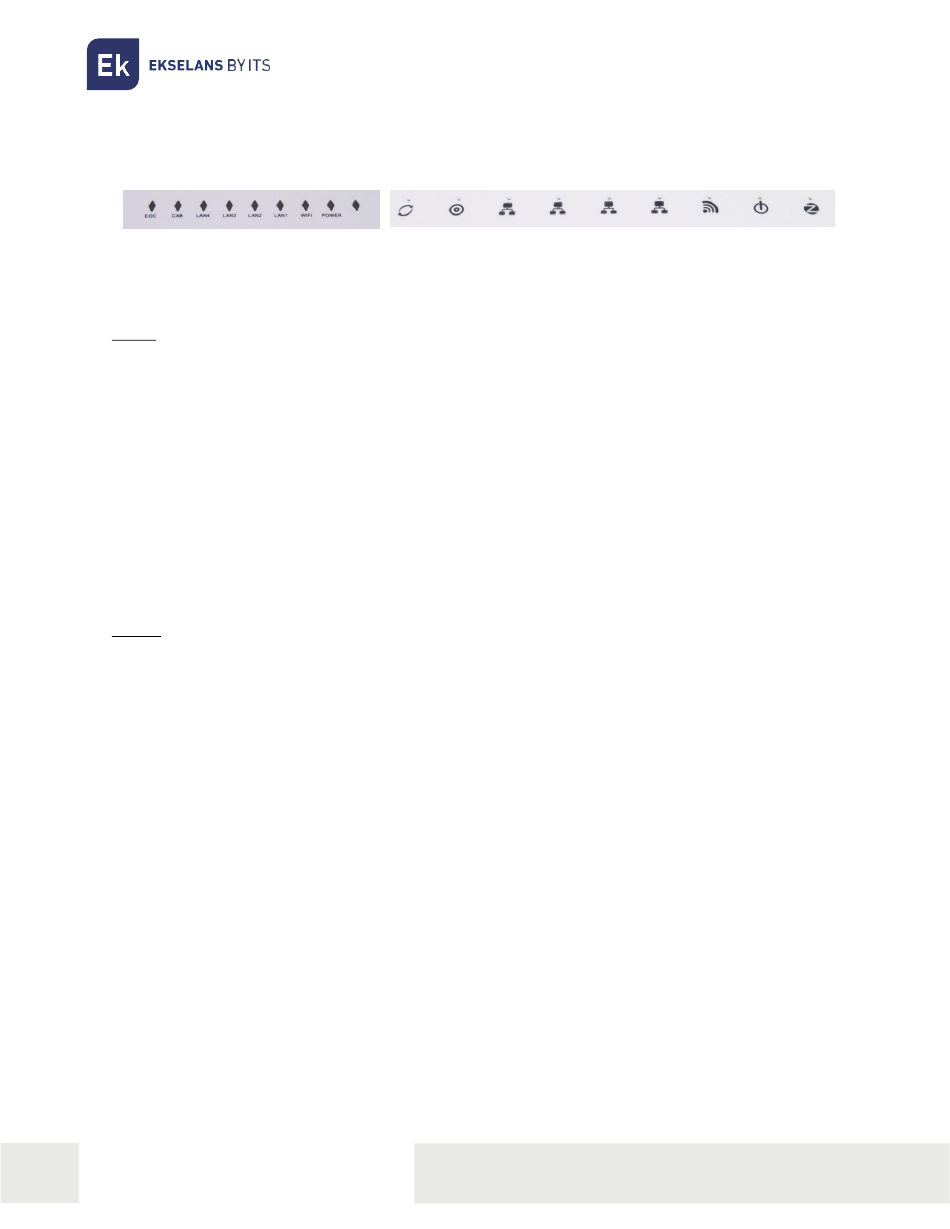

Front panel
IPC 24
The device has the following status LEDs:
IPC 24
•
EOC: (Ethernet Over Coaxial): If green, the device is functioning correctly.
•
CAB: If green with slight flickering, it is functioning correctly. Off, the device is switched off or
there is no communication with the head-end device.
•
LAN1-4: If green, the LAN port has established an Ethernet connection with another device
(for example, a PC). If flashing green, it is in data transfer or data reception process mode. Off,
the device is switched off or there is no Ethernet connection with another device.
•
WIFI: If green it is working correctly. Off, the device is switched off or there is no established
Wi-Fi connection.
•
POWER: If green, it will indicate that the equipment is connected to the power supply and is
functioning correctly.
IPC AC
•
EOC: (Ethernet Over Coaxial): If green, the device is functioning correctly.
•
CAB: If green with slight flickering, it is functioning correctly. Off, the device is switched off or
there is no communication with the head-end device.
•
LAN1-4: If green, the LAN port has established an Ethernet connection with another device
(for example, a PC). If flashing green, it is in data transfer or data reception process mode. Off,
the device is switched off or there is no Ethernet connection with another device.
•
WIFI: If green it is working correctly. Off, the device is switched off or there is no established
Wi-Fi connection.
•
POWER: If green/red with slight flickering, it will indicate that the equipment is connected to
the power supply and is functioning correctly.
