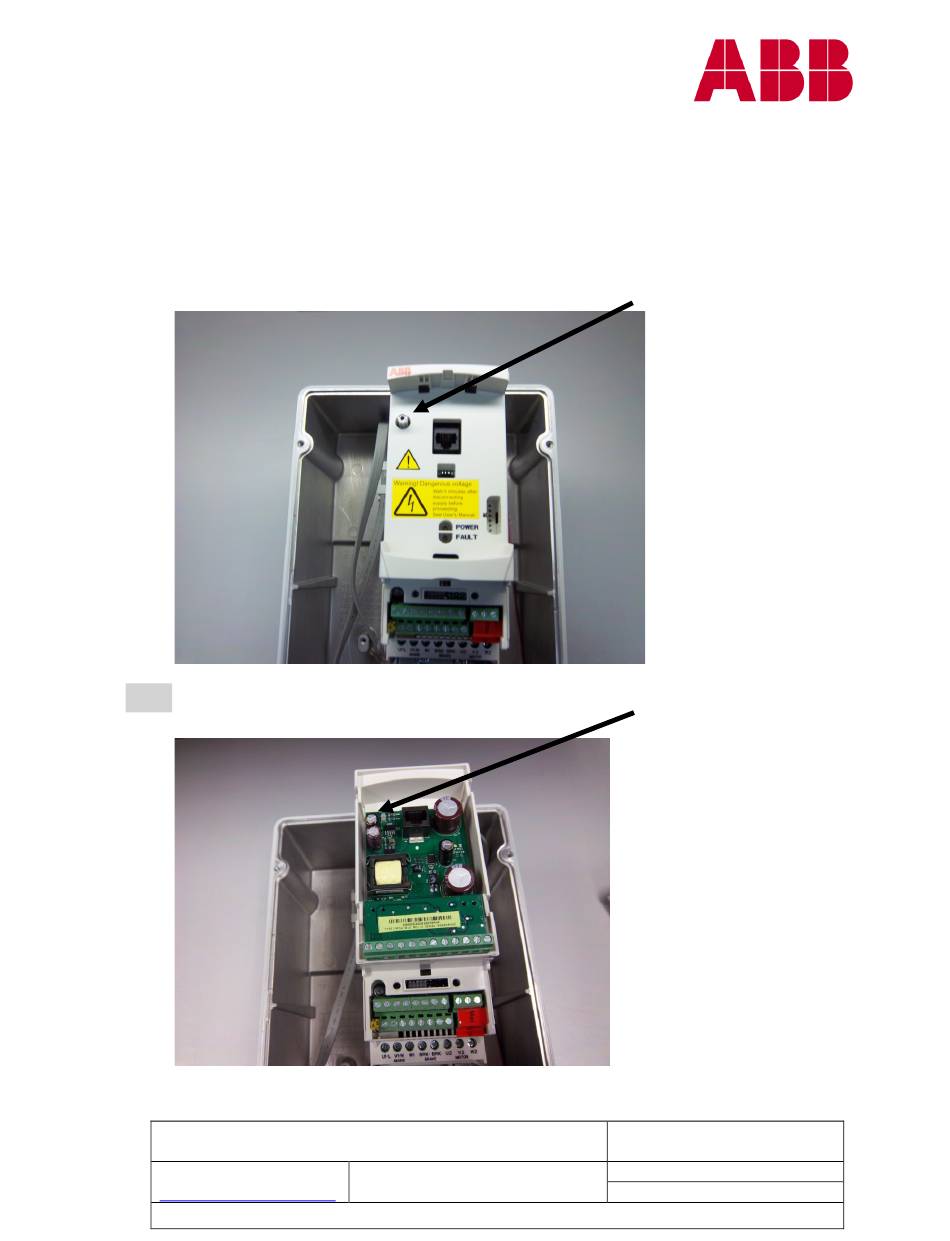

5 Install Mxxx-01 to ACS355 U.L Type 4X Drive

5.1 Remove the standoff and screw from the Mxxx-01 Kit.

5.2 Remove the circuit board fastening screw from the drive and
insert and tighten the Mxxx-01 standoff.
5.3
Install the Mxxx-01 option onto the drive and secure using the
screw provided with the Mxxx-01 kit.
