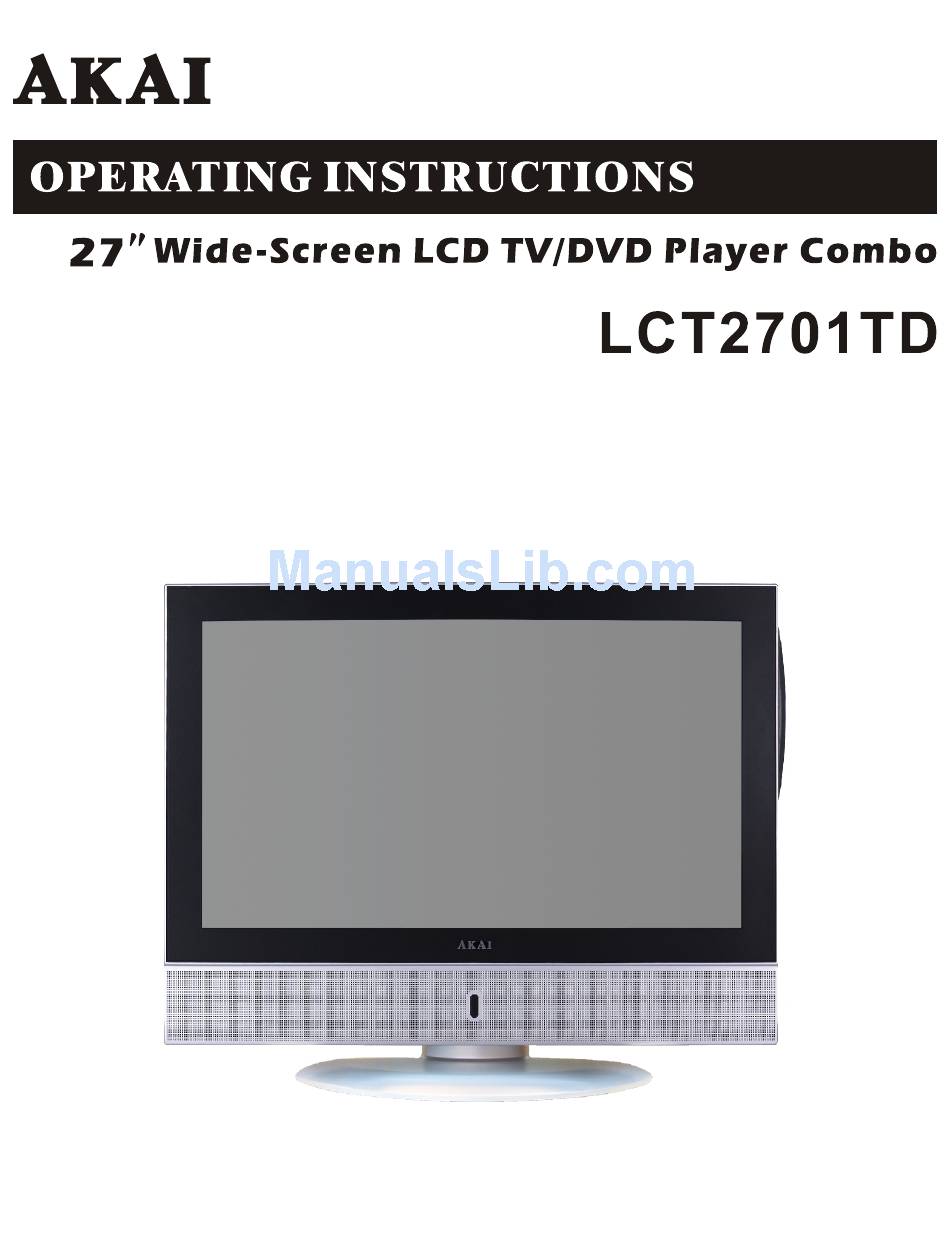

Akai LCT2701TD User Manual

27" wide-screen lcd tv/dvd player combo
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCT2701TD and is the answer not in the manual?

Questions and answers

Related Manuals for Akai LCT2701TD

Summary of Contents for Akai LCT2701TD

  • Page 2: Warning Label

    Safety Guidelines Caution: Always use a power cable is properly grounded. Please use the AC cords listed below for each area: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: Read These Instructions

    IMPORTANT SAFEGUARDS Important Safeguards Before using your TV, please read these instructions completely, and keep this manual for future refer- ence. Carefully observe and comply with all warnings, cautions and instructions placed on the unit or described in the operating instructions or service manual. The User Manual uses the following symbols to ensure a safe operation and prevent any damage to operators or properties: WARNING ----- Ignorance or inappropriate use may cause damage to...
  • Page 4 Never use a damaged power cord: Heavy objects, heat, or tensile force may damage the power cord and cause fire or electric shock. Never block or cover the slots or openings in the TV cabinet back, bottom, and sides. Never place the TV: on a bed, sofa, rug, or similar surface;...
  • Page 5 IMPORTANT SAFEGUARDS The power cable should be kept away from heat sources: The heat produced by any heat source may melt the covering of the power cable. Hold the power connector when removing the power cable: Pulling the power cable itself may damage the wires inside the cable and cause fire or electric shock.
  • Page 6 Notes others ▪ The LCD panel on this TV is manufactured using an extremely high level of precision technology; however, an occasional pixel (dot of light) may display constantly on the screen. This is a structural property of LCD technology and is not a sign of malfunction.

  • Page 7: Clean Only With Dry Cloth

    IMPORTANT SAFEGUARDS Notes on region numbers This DVD player is designed and manufactured for playback of region “1” encoded DVD software. The region code on the labels of some DVD discs indicates which type of player can play those discs. This unit can play only DVD discs labeled “1”...

  • Page 8: Table Of Contents

    Safety Guidelines ...1 Important Safeguards ...2 1. Before use ...8 2. Product Features ...8 Open the Package ... 8 Installation ... 8 3. Names and Functions of Parts ...9 Side View ... 9 Front View ... 9 Rear View ... 10 Remote Control ...

  • Page 9: Before Use

    BEFORE USE PRODUCT FEATURES 1. Before use The product is a 27” WXGA (WXGA resolution) LCD TV/DVD Player Combo. It has passed the UL and cUL safety certifications, and is an ideal product for personal and commercial use. The product is a precise electronic product.

  • Page 10: Names And Functions Of Parts

    3. Names and Functions of Parts Side View The functions of the buttons are described as follows: Sketch map Front View Sketch map (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on / Standby) LED: Press Indicator on (Red) Indicator on (Green) (Eject): Press to open or close the disc tray.

  • Page 11: Rear View

    Sketch map...

  • Page 12: Remote Control

    Remote Control Power ( ): Press to turn on and off. Mute ( ): Press to mute the sound. Press again or press ∧, ∨ to restore the sound. CCD: Press to select the Closed Caption mode. V-CHIP: Press to select the child protect mode. MTS: Press repeatedly to cycle through the Multi- channel TV sound (MTS) options: Mono, Stereo and SAP (Second Audio Program).
  • Page 13 Menu: Press to enter on-screen setup menu, press again to exit. : Press to skip the forward or backward. : Press to play or pause the DVD disc. : Press to stop playing the disc. : Press to search the forward or backward.

  • Page 14: Connect Accessory Devices

    Care For Remote Control - Avoid spilling liquids on the remote. - Avoid dropping or otherwise jarring the remote. - Always store the remote control at dry and normal room temperature place. - If the remote is nor performing satisfactorily, replace the batteries. The batteries should be replaced after one year.
  • Page 15 CONNECT ACCESSORY DEVICES Connecting the Computer Switch off LCD TV and external equipment before con- necting cables. Connect a computer’s VGA Out to the LCD TV’s VGA In terminal. Connect a computer’s Audio Out to the LCD TV’s Audio In terminal. Press Power to turn on the LCD TV.
  • Page 16 Connecting AUDIO OUTPUT jacks to a stereo amplifier Switch off TV and external equipment before connecting cables. Connect the TV Audio Output (R/L) to the stereo amplifier In (R/L). Press Power to turn on the TV. Turn on external equipment also. Insert the Disc to slot-in DVD Player Press Source button to select DVD signal source.

  • Page 17: Basic Operation

    BASIC OPERATION OSD OPTION ADJUSTMENT 5. Basic Operation Power ON/OFF The Display is in Standby mode. - Press the Power on the remote control or on the control panel to turn on the unit. The power indicator changes from red to green. - Press the Power on the remote control or on the control panel again to return the display to...
  • Page 18 Erase current channel from the list of favorite if a broken heart shape mark Note: - If you don’t want do add/erase this channel to/from the list of favorite, press this button again. - For addition, it will be put at last of the favorite list and the first channel in favorite list will overflow in case of the list is full.

  • Page 19: Tv Operations

    TV OPERATIONS ---- VIDEO MENU TV Operations Using the Video Menu ◆ Note: Video Menu is just for TV, AV, S-Video, Component, DVD input source mode. It is not available in other input source mode. When smart picture mode is pre-set, the value of the above settings will be different according to different input source.

  • Page 20: Adjustment Of "Saturation

    ■ Adjustment of “Saturation” Press Menu button, and then press ＜ or ＞ button until the “Video” menu appears. Press ∧ or ∨ button to highlight the item. Press Enter button to confirm and display a status bar as below. Press ＜...

  • Page 21: Selection Of "Color Temperature

    TV OPERATIONS ---- VIDEO MENU ---- AUDIO MENU Press ＜ button to decrease. Press ＞ button to increase. Press Enter button to confirm the adjustment and return. Note: This is a feature just used for YPbPr input source. ■ Selection of “Color Temperature” Press Menu button, and then press ＜...

  • Page 22: Using The Audio Menu

    Using the Audio Menu ◆ ■ Adjustment of “Bass” Press Menu button, and then press ＜ or ＞ button until the “Audio” menu appears. Press ∧ or ∨ button to highlight the item. Press Enter button to confirm and display a status bar as below.

  • Page 23: Selection Of "Surround

    TV OPERATIONS ---- AUDIO MENU ---- MISCELLANEOUS MENU ■ Selection of “Surround” Press Menu button, and then press ＜ or ＞ button until the “Audio” menu appears. Press ∧ or ∨ button to highlight the item. Press Enter button to confirm. Press ∧...

  • Page 24: Setting Of "V-Chip

    • To view text, highlight T1, T2, T3, or T4. World Weather Temp Current Weather New York Sunny London Cloudy HongKong Clear Note: A closed caption signal may not display in the following situations: ▪ when a videotape has been dubbed ▪...
  • Page 25 TV OPERATIONS ---- MISCELLANEOUS MENU If the input is invalid, a message will pop up as below; You can press Enter button to display “Input Your Password Please” menu again, then entering the PIN code, or press ∧ , ∨ , ＜ or ＞ button move cursor to “Cancel” and press Enter button to close up this menu.
  • Page 26 Using the “Block TV Rating” item From the “V-CHIP” menu, select “Block TV Rating”. Press ∧ or ∨ button to highlight the “Block TV Rating” item. Press Enter button to confirm. Press ∧ , ∨ , ＜ or ＞ button to select an item, then press Enter button to lock (display “...

  • Page 27: Setting Of "Parental

    TV OPERATIONS ---- MISCELLANEOUS MENU ■ Setting of “Parental” The TV programs and movies shown on TV are given a rating signal based on the following rating systems. To block programs you feel unsuitable for your children, you need to set the TV for the desired rating systems.

  • Page 28: Selection Of "Blue Mute

    Items Channel Lock All channels TV, AV, S-Video, Compo- Video Lock nent, DVD, VGA Change Password Clear All ■ Selection of “Blue Mute” Press Menu button, and then press ＜ or ＞ button until the “Misc” menu appears. Press ∧ or ∨ button to highlight the item. Press Enter button to confirm.

  • Page 29: Using The Tv Menu

    TV OPERATIONS ---- TV MENU ---- GEOMETRIC MENU Using the TV Menu ◆ Note: TV menu is only for TV input source mode, thus it is not available in other input source mode. The locked channel will be skipped during the searching. ■...

  • Page 30: Selecting Channel

    cursor to “Cancel” and press Enter button for close this setting. Press ＜ button to return. Note: It will be invalid if the current source is not Hot keys: You can also press CH.Edit button on the remote control. ■ Selecting Channel Press CH +/- button on the remote control to search the channels, the channel number will increase or decrease by 1 for each pressing excluding the skipped channels.

  • Page 31: Using "Brightness

    TV OPERATIONS ----GEOMETRIC MENU ■ Using “Brightness” Press Menu button, and then press ＜ or ＞ button until the “Geometric” menu appears. Press ∧ or ∨ button to highlight the item. Press Enter button to confirm and display a status bar as below. Press ＜...

  • Page 32: Using "Manual Clock

    Press ＜ button to decrease and press ＞ button to increase it. Press Enter button to confirm and return. ■ Using “Manual Clock” Press Menu button, and then press ＜ or ＞ button until the “Geometric” menu appears. Press ∧ or ∨ button to highlight the item. Press Enter button to confirm and display a status bar as below.

  • Page 33: Dvd Operations

    DVD OPERATION AUDIO CD PLAYBACK OPTIONS DVD Operations - Basic Playback . Press the Power( ) button on the TV to turn the unit on. . Insert your chosen disc into the disc slot on the side panel. Be sure to face the top of the disc (with title etc.) toward the front of the screen.

  • Page 34: Selecting The Disc Menu

    - Selecting the disc menu . Press the DVD Menu button during playback. . Use the ∧,∨,＜,＞, or Enter button to select the desired menu option. - Repeat playback You can play a specific title, chapter, track, or seg- ment repeatedly. Press the Repeat button during playback.

  • Page 35: Repeat Playback

    DVD MENU OPTIONS •FWD( 2x → → 16x → 2x → •REV( → 16x → . Press the Play/Pause ( resume normal playback. - Repeat playback You can play a specific track repeatedly. Press the Repeat button during playback. Each time you press the Repeat button, the repeat mode changes as follows.

  • Page 36: Last Scene Memory

    - Last Scene Memory This player memorizes last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the player or turn off the set. If you load a disc that has the scene memorized, the scene is automatically recalled.

  • Page 37: Disc Menu Language Selection

    DVD MENU OPTIONS TECHNICAL SPECIFICATION Disc menu language selection Select your preferred language for the disc menus and DVD messages. (The disc must contain the selected language.) Press the Setup button and then use ∧, ∨ buttons to select DISC MENU. Press the Enter or ＞...

  • Page 38: Supplied Accessories

    6. Technical Specification Product Model: LCT2701TD 27” diagonal Screen Size: Screen Area: 596.259mm(H) x 325.232mm(V) Aspect Ratio: 16:9 698mm(W) x 513mm(H) x 99mm(D) (w/o Stand) External Size: 698mm(W) x 571mm(H) x 250mm(D) (with Stand) 13.9kg (with Stand) Net Weight: 1366 (H) x 768 (V) pixels (Each pixel has R/G/B 3 color cells)

  • Page 39: Support The Signal Mode

    SUPPORT THE SIGNAL MODE 8. Support the Signal Mode A. D-Sub Mode (VGA) Resolution 640 x 480 800 x 600 1024 x 768 HDTV Mode (YPbPr) Resolution 480i 480p(720x480) 720p(1280x720) 1080i(1920x1080) - When the signal received by the Display exceeds the allowed range, a warning message shall appear on the screen.
  • Page 40 SYMPTOMS POWER • Make sure the power cord is plugged in. TV/DVD does not operate. • Try another Wall outlet. TV Broadcast reception • Station or Cable TV experiencing problems, tune to another station. Poor sound or No sound. • Check Volume adjustments. •...
  • Page 41 CLEAN AND SIMPLE TROUBLESHOOTING Simple Troubleshooting (Continued) SYMPTOMS • Check that the input selector of the amplifier is set properly. No sound. • The unit is set to Mute mode. Stopping playback, search, • Some discs may not do some of the functions. repeat play, or program play, etc.
