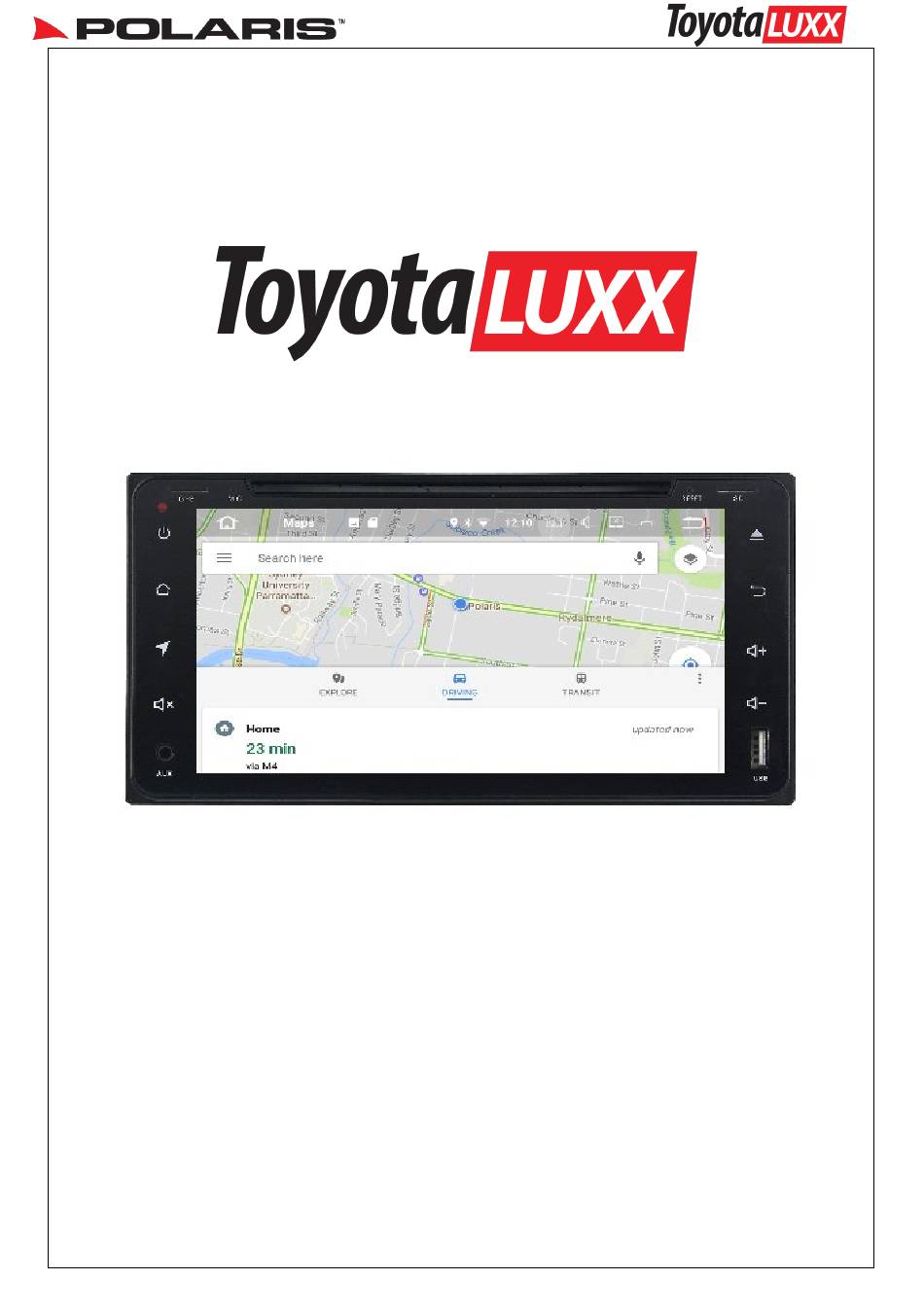

- Page 1 Installation Manual Please read this manual before installing this product. 1300 555 514...
-
Page 2: Warranty Details
SD card). • The installation of 3rd party apps that may cause harm to the unit. Warranty Terms The ToyotaLUXX is covered 2 years and includes: • Defective Equipment • Defective Cables Not Covered under warranty: •... -
Page 3: Table Of Contents
Please note: once the unit is installed you can access your user manual on the head unit or you can download a copy from our website: www.polarisgps.com.au Also check out our youtube channel (Polaris GPS) for troubleshooting / tutorials Record your serial number here and keep on hand for future records:... -
Page 4: Installation Notes
When pulling the dash apart, please use quality trim tools to avoid damaging your dash. Please do NOT cut any plugs off of any Polaris cameras. Doing so will void your warranty! If you need to blend other brand cameras into our system, please call Polaris on 1300 555 514 so we can refer you to a recommended dealer who has the skill and experience in performing this type of work. -
Page 5: What's In The Box
VID in / AUX L / AUX R cable. CAM in / Front CAM IN cable. 2 x USB cables / Bluetooth mic input cable. Polaris Reverse Camera with RCA adaptor. Toyota Power Harness 4 pin plug— Rear Speakers: plugs into OEM Harness 8 pin plug—... -
Page 6: Wiring Diagram
Wiring Diagram 1300 555 514... - Page 7 Wiring Diagram: Reverse Camera DIAGRAM 1 CONSTANT CAMERA AND TRIGGER REVERSE TRIGGER REVERSE FOUND IN ORIGINAL HARNESS (COLOUR MIGHT DIFFER FROM BRANDS AND CUT AND TAPE OFF WIRES AS NOT MODELS) NEEDED IN THIS SET UP AS NOT NEEDED IN THIS SETUP. RCA PLUGS INTO CAMERA INPUT FOUND ON HEAD UNIT...
- Page 8 Wiring Diagram: Reverse Camera (cont.) IF NO REVERSE TRIGGER IS FOUND PLEASE FOLLOW THE SECOND DIAGRAM, IF YOU WOULD LIKE A CONSTANT CAMERA AS WELL, A TRIGGER MUST BE BROUGHT FROM REVERSE LIGHT DIAGRAM 3 REVERSE TRIGGER WIRE CUT AND TAPE OFF (POWER TO WIRES AS...
- Page 9 Even though the actual input is labelled as front camera, you can still use this input for a second reverse camera. The actual head unit has an icon on the screen labelled CAM and this can toggle between the 2 cameras installed. Red = 12 Volt positive Back of ToyotaLUXX (suggested source: Accessories power)
-
Page 10: Special Vehicle Notes-79 Series Radio Antenna Adaptor
Special Vehicle Notes: 79 Series Radio Antenna Adaptor The Toyota Landcruiser 79 series has it’s own Radio Antenna adaptor plugged into the OEM head unit. The Toyotaluxx also has an antenna adaptor. We have found Radio interference when the 2 adaptors are plugged together. - Page 11 Do not forget to remove the transportation screws before installing *Some OEM brackets may have to be modified in order to line the brackets up on the Toyotaluxx. For example, the 79 series brackets need to be filed down you (see below): File down the parts...
-
Page 12: Steering Wheel Controls
Steering Wheel Controls Even though the ToyotaLUXX is plug and play, you will still have to programme in your steering wheel controls, please see below on how to do this. Programming in your steering wheel controls Select Wheel Key study from the main menu Select and press one of your steering wheel controls. - Page 13 Steering Wheel Controls Once you have programmed all your steering wheel controls in, your screen should look similar to the one below: Short Long click click If you have made a mistake or you wish to change the functions you can press reset and start the process again.
-
Page 14: Dimensions
Dimensions 10.5cm 20.5cm 10 cm 15cm 17.5cm 1300 555 514... -
Page 15: Returns Procedure
Returns Procedure Thank you for purchasing a Polaris product. If you have any enquires or queries, please call Polaris on 1300 555 514. The warranty on this unit is 2 years from the date of purchase. If you are having problems with this unit, please refer to your user manual and trouble shooting tips.
