User manual
Owners Manual: please read before using this product

Advertisement

Table of Contents
loading

Related Manuals for Polaris ToyotaLUXX

Summary of Contents for Polaris ToyotaLUXX

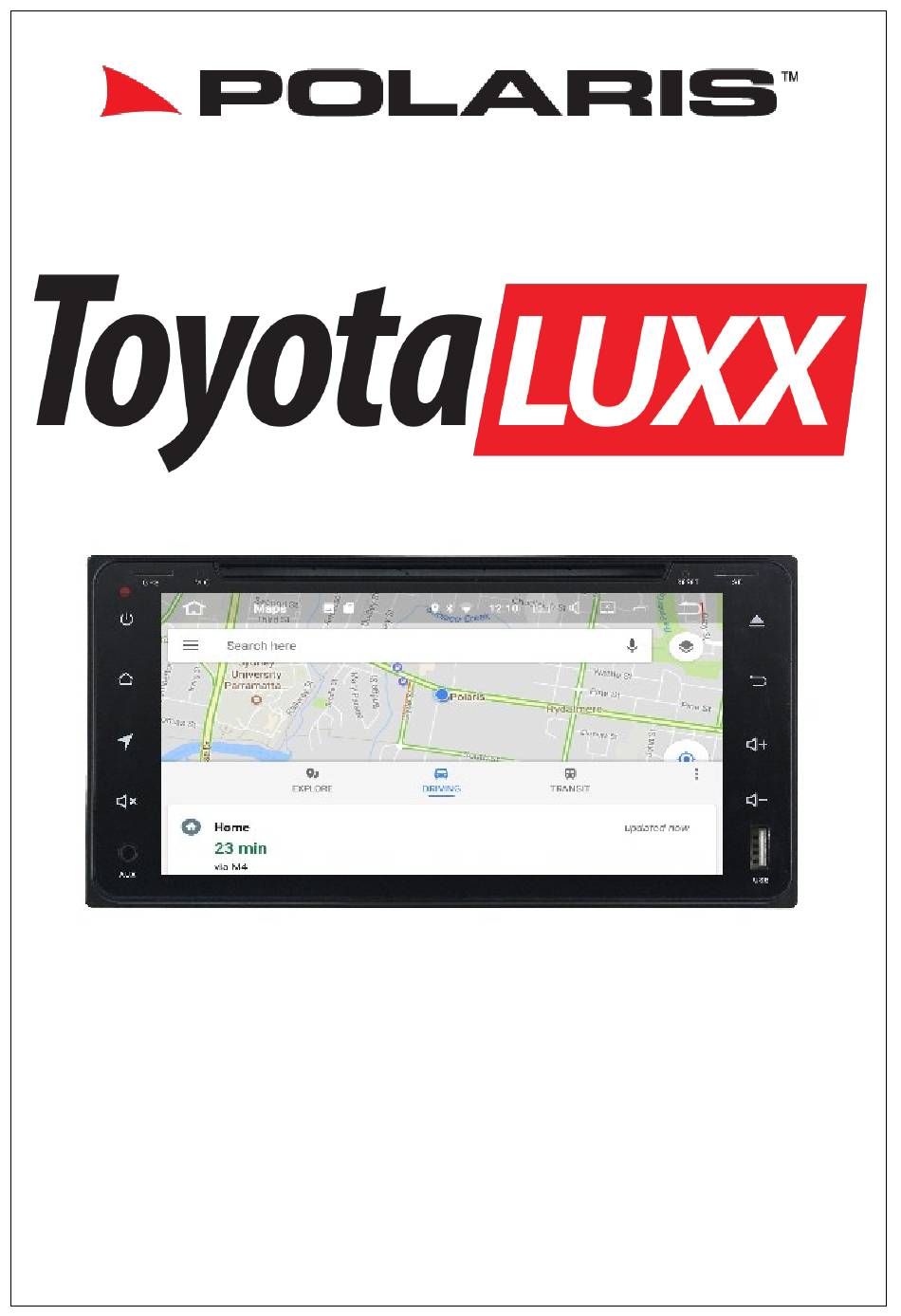

  • Page 1 User manual Owners Manual: please read before using this product...
  • Page 2 SD card). • The installation of 3rd party apps that may cause harm to the unit. Warranty Terms The ToyotaLUXX is covered for 3 years and includes: • Defective Equipment • Defective Cables Not Covered under warranty: •...

  • Page 3: Table Of Contents

    Table of Contents Getting Started 4-11  Main menu  Connecting to Wi-Fi  Connecting bluetooth  Setting up radio pre-sets  Setting up date & time  Google play store  10-11 Easy connection Bluetooth 12-18 Radio 18-19 Music via USB 20-21 Movies via USB CD player...

  • Page 4: Getting Started

    The unit will take approx. 15-20 seconds on the initial start-up, after this the unit will load instantaneously unless reset. Once the unit has loaded it will appear with the main menu interface: Swipe left to access more features: Please note that some apps have been installed by Polaris via Google Play store...

  • Page 5: Connecting To Wi-Fi

    You can change the order of the icons or move desired icons to the main interface by holding down the applicable icon and dragging to the desired position. Connecting to Wi-Fi There are a few different ways in which you can connect to Wi-Fi: 1: Drag the toolbar that is located at the top of the screen down >...
  • Page 6 Your phone will now ask if you want to connect to the Polaris device, please make sure you allow and input the password of 0000 in. You can also connect your bluetooth device by following the normal procedure through your device.

  • Page 7: Setting Up Radio Pre-Sets

    Setting Up Radio Pre-sets Select radio from the main menu You can store up to 30 FM pre-sets and 30 AM pre-sets. To automatically scan, select the magnifying glass icon: The unit will run through a complete scan and will automatically set your pre-set stations to the radio frequencies with the strongest signal within your area.

  • Page 8: Setting Up Date & Time

    To manually scan for radio stations long press the arrow buttons: When you have found the station you desire, press the arrow key to stop the search. If you need to change the frequency one by one, simply short press the arrow keys. Once you have reached your desired station select a pre-set down the bottom of the screen and hold down (long press) until it changes to your desired station.

  • Page 9: Google Play Store

    Once you are signed in, you are free to start downloading 3rd party apps such as navigation or Spotify. Please note that the more apps you add onto the system, the slower the unit will be to re- spond as a result. WARNING: Polaris take no responsibility for 3rd party apps installed onto the device.

  • Page 10: Easy Connection

    Connect your phone with your original phone cable to one of the USB inputs on the ToyotaLUXX and select Android USB. A message should pop up on your android device to allow for debugging > select yes. If debugging was successful, Android drive mode will automatically load.

  • Page 11: Easy Connection

    When connecting via Wi-Fi, the ToyotaLUXX and your iPhone must be connected to the same network. If you are on the road, you will need to connect the ToyotaLUXX up to your personal hotspot.

  • Page 12: Bluetooth

    Bluetooth features Please see page 5 & 6 on how to pair up your Bluetooth enabled device. Once you are connected to bluetooth, you can receive calls regardless of what feature you are using. Receiving a call / call in progress Answer.
  • Page 13 Making a Call To make a call, select bluetooth from the main menu Keypad Takes you back to the home screen. Paired Devices. Keypad to dial numbers. Settings. Back to previous screen. Delete number. Keypad. 10. Call. Contacts. 11. Hang up. Dialled/Received/Missed calls.
  • Page 14 If you have an iPhone: If you find that your phonebook will not import, please go into the settings on your phone > blue tooth settings > Look for Polaris > select the information icon > turn Sync contacts on:...
  • Page 15 Received/Dialled /Missed calls Home. Settings. Back to previous screen. Missed Calls. Keypad. Received Calls. Contacts. 10. Dialled Calls. Received/Dialled/Missed menu. 11. Delete. Paired devices.
  • Page 16 Select your device. Your phone will now ask if you want to connect to the Polaris device, please make sure you allow and input the password of 0000 in. You can also connect your bluetooth device by following the normal procedure through your device.
  • Page 17 11. Auto connect on/off. Paired Devices. Notes: If the auto answer feature is on, The ToyotaLUXX will automatically answer the call after three rings. If Auto Connect is turned on, bluetooth will automatically connect to the last paired phone upon vehicle start-up.

  • Page 18: Bluetooth

    Spotify or Apple music to download the app directly onto the Toyota Luxx. Radio The ToyotaLUXX has AM and FM built into it. You can set up to 30 FM pre-sets and 30 AM pre-sets. To see how to set these up, please see pages 7-8.
  • Page 19 Home. Automatic scan. Scan back through different stations Equaliser. manually. Scan for Long Range (distant) or short Hold button down to scan. Range frequencies (local). Radio frequency. 10. Stereo or mono sound Scan forward through different 11. Search for Radio station. stations manually.

  • Page 20: Music Via Usb

    Music via USB The ToyotaLUXX has 3 x USB ports. Two of the USB ports plug into the back of the head unit and are normally run into the glove box. The third USB port is located in the head unit.
  • Page 21 USB / SD card Contents Menu Home. Memory device list Back to previous screen. Music files found on device...

  • Page 22: Movies Via Usb

    Playing movie files via USB To view your movie files, select video from the main menu. Home. Skip back. Back to previous screen. Pause/Play. Equaliser Skip forward. Shuffle/Repeat/Repeat all Change to full screen. USB/SD card contents menu...

  • Page 23: Cd Player

    CD player Please insert a CD into the head unit. If the CD doesn't load automatically, please select DVD from the main menu Home. Pause / play. Track list. Skip forward. Back to previous screen. Repeat 1 / Repeat all. Skip back.
  • Page 24 Home. Equaliser. Back to previous screen. 10. More Options. Skip back. 11. Go back to DVD menu. Pause/play. 12. Subtitles on/off. Stop. 13. Change language (if applicable). Skip Forward. 14. Repeat 1 / Repeat All. Rewind. 15. Shuffle. Fast forward. 16.

  • Page 25: Navigation

    Google Maps The ToyotaLUXX comes standard with the Google maps app already preloaded. Google maps is a great option for street navigation however please be aware that you will re- quire some sort of internet connection to navigate.

  • Page 26: Camps Australia Pois

    Camps Australia POIs If you have purchased the Camps Australia POIs, please see below on how to find them in the iGo Australia 1. Select main menu 2. Select new Route 3.Select places 4. Tap in the search name or category bar 5.
  • Page 27 8. Select your Camps destination 7. Select your Camps sub category 9. Navigate to the destination If you wish to view the Camps POIs on the map: Select Main Menu Select Settings Select Navigation View Select Map appearance Scroll down until you see Place Markers Scroll down until you see your Camps icon Select show on map.

  • Page 28: Other Features

    Other features Gallery: View/Manage photos. Amplifier: Sound management. AUX in: Auxiliary in. Google Chrome: Use Google Chrome to browse the internet when connected to Wi-Fi. Clock: Show clock. Email: Set up email account. Google play store: Open Google play store for downloading apps onto the unit.
  • Page 29 Gmail: View / Manage your Gmail account. Steering wheel study: Allows you to reprogram your steering wheel controls if necessary. File Explorer: Explore all your files on the unit and on your external devices. Search: Search the Toyota Luxx. CD/DVD—CD/DVD player. F-Cam—View front camera (if applicable).
  • Page 30 Autoplay: Car Play / Android Auto USB dongle feature. Adobe Reader: Allows you to view PDF documents. Instructions: View the ToyotaLUXX instructions here. EasyConnect: Android Drive mode or mirror your iPhone. Manage Files: View, copy and paste your files here.

  • Page 31: Settings

    Settings Network & Internet Wi-Fi Connect to local Wi-Fi network. Turn Wi-Fi on/off. Mobile Network Not applicable to this unit. Data Usage Wi-Fi Data usage. Network restrictions. Hotspot & Tethering Not applicable to this unit. Add VPN details. Apps & Notifications App Info Lists all the apps downloaded on the device.
  • Page 32 Car Settings Personal Settings Allow music to play instantaneously when USB or SD is inserted. Power off delay if ACC off. Panel LED colour. Auto Illumination. Navigation Settings Set Nav software as default. Navigation sound—mixing vs switching. Driving settings Reversing volume on/off. Allow to watch video while driving.
  • Page 33 Sound Touch Sounds On/off Do not disturb Block / unblock Audio or visual disturbances. Preferences Default Choose sounds for notifications. Notification Sound Default alarm Choose a sound for alarm. Sound Screenshot Select delay time to How many seconds after you take screen shot will it take to capture screen save to your location.
  • Page 34 Users & Accounts Accounts Add / Delete accounts. Automatically sync On/off. data Accessibility Screen Readers Text to speech output. Display Font size. Display size . Magnification. Large mouse cursor Interaction controls Click after cursor stops moving Auto rotate screen Touch and hold delay Audio &...

  • Page 35: Settings

    Factory Settings—Password 126 Function Please do not change any settings in function. Doing so could lead to particular features not working correctly Radio Radio Region Change Radio Region. Setting RDS switch Turn RDS on or off. Panel Key Default N/A to this unit. Configuration Wheel Key default configs N/A to this unit.

  • Page 36: Multitasking Split Screen

    Multitasking Split Screen The ToyotaLUXX unit will allow you to view 2 apps at once via the multitasking feature. Please note: Some apps may not be supported. To view 2 apps in split screen, open the first app. Once your first app has loaded, press the back icon to return to the main menu.
  • Page 37 Drag your first app over to the left: Tap the other app that you wish to view in split screen and it should adjust size and appear on the right hand side: To exit multitask split screen, select the multi tasking icon and the right hand side app will appear with a cross underneath.

  • Page 38: Additional Camera (Optional)

    CAM (use for a front camera or a an additional Reverse Camera) The ToyotaLUXX will allow you to plug a an additional camera in via the front camera in- put. If you wish to view the additional camera for a nominated time interval after reverse is disengaged then you can turn this function on via the settings >...

  • Page 39: How To View The Reverse Cameras

    2 Camera Operation—How to view the cameras If you have 2 reverse cameras (for example a reverse camera on the back of the tow vehicle and a rear camera on the back of a trailer) you can view both cameras while in reverse and driving forward: Viewing the cameras whilst in Reverse gear When you engage reverse, the reverse camera will appear on the screen and to...

  • Page 40: Car Play/Android Auto (Optional)

    Car Play & Android Auto USB Add-on (Optional) If you have purchased the additional car play dongle, Polaris will install the AutoPlay APK file for you so it is ready for you to use. Step 1: Plug the USB dongle into one of the USB inputs.

  • Page 41: Touch Button Panel

    Touch Button Panel GPS SD card slot Mute Internal Mic AUX—Not available in AUS version RESET Hole 10. Eject CD/DVD SD Card Slot 11. Back to previous screen Standby 12. Volume up Home 13. Volume down Navigation 14. USB input Shortcuts At any time you can hold or drag the status bar down to quickly access features such as: Wi-Fi, Bluetooth, Volume, brightness, Amplifier, speed management settings and general...

  • Page 42: Specifications

    Specifications General Information Monitor: 7.0" Capacitive Multi Touch Screen. Resolution: 800 x 480 Operating system: Android 8.0 Power supply: DC12V. Video form: PAL/NTSC. Supports steering wheel controls for most cars that are not controlled by CAN SWC: bus* OSD Language: English.
  • Page 43 Reverse Camera Function Reverse Camera input: Yellow RCA jack. Reversing Camera: Reverse Camera comes standard with the Toyota Luxx. Reverse Trigger: Reverse Camera will engage when vehicle is put into reverse gear. Front Camera* Yellow RCA Jack . Front cam input: Functionality: Once reverse gear is disengaged, the forward vision camera can be set to appear on the screen for a nominated time interval.

  • Page 44: Returns Procedure

    Thank you for purchasing a Polaris product. If you have any enquires or queries, please call Polaris on 1300 555 514. Returns Procedure The warranty on this unit is 3 years from the date of purchase. If you are having problems with this unit, please follow these steps: Please contact us on 1300 555 514 or email technical@poron.com.au as there may...
