Summary of Contents for Mars COMFORT-AIRE Century VMH09 SU Series

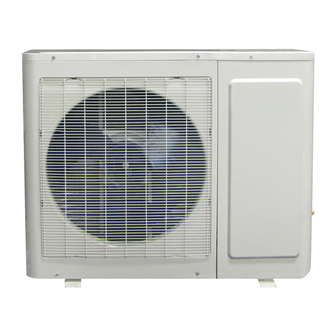

- Page 1 User Manual VMH09/12/18/24 SU Series Inverter Single Zone Ductless Mini-Split www.marsdelivers.com...
-
Page 2: Table Of Contents
User Manual - VMH 09/12/18/24 SU Series CONTENTS infor SAFETY PRECAUTIONS Warning .............................3 Caution ............................4 NAMES OF PARTS Indoor unit ..........................5 DISP outdoor unit ..........................5 Indication lamp...........................5 It is p OPERATING INSTRUCTIONS seve Special functions ........................6 A) T Operating temperature........................7 Manual operation ........................7 B) W Airflow direction control ......................8... -
Page 3: Safety Precautions
User Manual - VMH 09/12/18/24 SU Series SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. This symbol indicates the possibility of death or serious injury. -
Page 4: Caution
User Manual - VMH 09/12/18/24 SU Series SAFETY PRECAUTIONS CAUTION Never actuate any switches with a wet If the air conditioner is to be used in hand. It may cause an electric shock. conjunction with other heaters, the air Never use the device for any other should be refreshed periodically, otherwise purpose than the intended use. -
Page 5: Names Of Parts Indoor Unit
User Manual - VMH 09/12/18/24 SU Series NAMES OF PARTS Indoor unit Names of parts Indoor unit With 1. Front panel 2. Air inlet 3. Air filter 4. Air outlet 5. Horizontal air flow grille If it 6. Vertical air flow louver(inside) circ 7. -
Page 6: Operating Instructions
User Manual - VMH 09/12/18/24 SU Series OPERATING INSTRUCTIONS Special functions Refrigerant Leakage Detection With this new technology, the dipsplay area will appear EC and the indication lamps continue flashing when the outdoor unit detects refrigerant leakage. Louver Angle Memory Function(optional): Within the scope of safety angle, it will memorize the open angle of horizontal louver. -
Page 7: Operating Temperature
User Manual - VMH 09/12/18/24 SU Series OPERATING INSTRUCTIONS NOTE: This manual does not include Remote Controller Operations, see the <<Remote Controller Instruction>> packed with the unit for details. Operating temperature Mode Cooling operation Heating operation Drying operation Temperature Room temperature 62°F~90°F 32°F~86°F 50°F~90°F... -
Page 8: Airflow Direction Control
User Manual - VMH 09/12/18/24 SU Series OPERATING INSTRUCTIONS Airflow direction control Adjust the air flow direction properly, otherwise it may cause discomfort or cause uneven room temperatures. Adjust the horizontal/vertical louver using the remote controller. For some models, the vertical louver can only be adjusted manually. -
Page 9: How The Air Conditioner Works
User Manual - VMH 09/12/18/24 SU Series OPERATING INSTRUCTIONS How the air conditioner works SLEEP operation AUTO operation 7 hours timer off When you set the air conditioner in AUTO mode, it will automatically select cooling, heating (cooling/heating models only), or fan only operation depending on set temperature and the room temperature. -
Page 10: Care And Maintenance
User Manual - VMH 09/12/18/24 SU Series CARE AND MAINTENANCE Care and Maintenance Before mainatenance Turn the system off before cleaning. To clean, wipe with a soft, dry cloth. Do not use bleach or abrasives. NOTE: Power supply must be disconnected before cleaning the indoor unit. -
Page 11: Replacement Of The Air Filter And Air Freshening Filter
User Manual - VMH 09/12/18/24 SU Series CARE AND MAINTENANCE Norm 4. Remove the Air Freshening Filters from supporting frame (The solution to disassemble may differ from The fo each other for different filters. Refer to Clean the air freshening filter at least once a month, 1. -
Page 12: Troubleshooting Tips
User Manual - VMH 09/12/18/24 SU Series TROUBLESHOOTING TIPS Normal function of the air conditioner The following events may occur during normal operation. 1. Protection of the air conditioner. Compressor protection The compressor can't restart for 3-4 minutes after it stops. Anti-cold air (Cooling and heating models only) The unit is designed not to blow cold air on HEAT mode, when the indoor heat exchanger is in one of the following three situations and the set temperature has not been reached. - Page 13 User Manual - VMH 09/12/18/24 SU Series TROUBLESHOOTING TIPS 7. The air conditioner runs Anti-mildew function after turning off the unit. When turning off the unit under COOL(AUTO COOL, FORCED COOL) and DRY mode, the air conditioner will run function for 7-10 minutes, if turns off on HEAT mode, the unit will Anti-mildew continue operating for about 30 seconds at LOW fan speed,...
-
Page 14: Troubleshooting Guide
User Manual - VMH 09/12/18/24 SU Series TROUBLESHOOTING TIPS Troubleshooting guide The unit may stop operation or OPERATION (RUN) indicator or continue to run in a safety condition other indicators continue flashing. (depending on models). Wait for about 10 minutes, the fault may be recovered automatically, if not, If one of the following code appears on the disconnect the power and then... - Page 15 LIMITED FIVE (5) YEAR EXPRESS WARRANTY REMEDY PROVIDED BY THE LIMITED EXPRESS WARRANTY MARS warrants all parts of the VMH Series Ductless Mini-Split to be free from defects in workmanship and materials for normal use and maintenance for five The sole remedy under the Limited Warranty is replacement of the defective (5) years from the date of purchase by the original consumer for the original part.
- Page 16 1900 Wellworth Ave., Jackson, MI 49203 • Ph. 517-787-2100 • www.marsdelivers.com 9/2020...
