Summary of Contents for Omcan CE-CN-0034-T

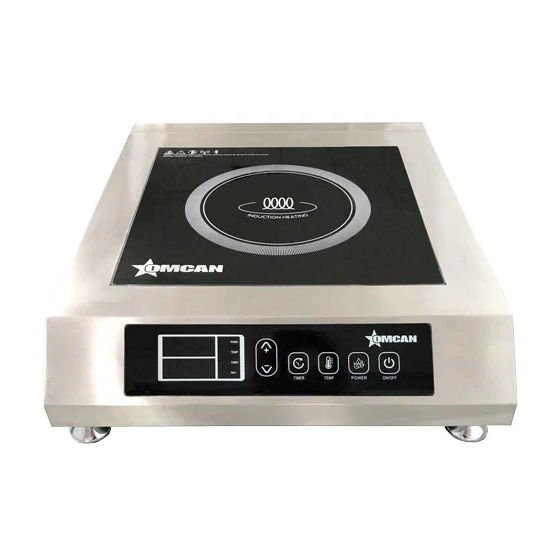

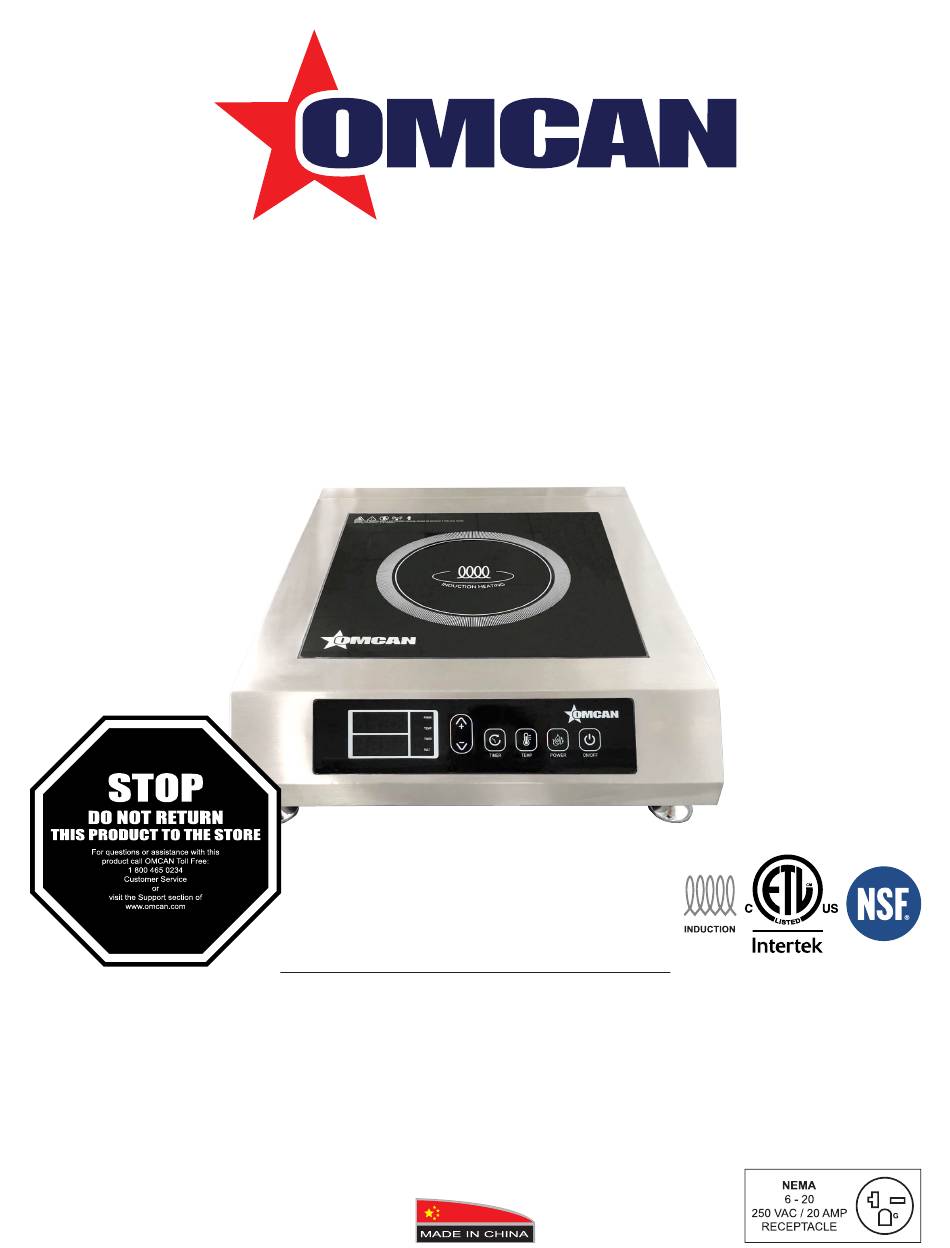

- Page 1 Induction Cooker Model CE-CN-0034-T Item 44744 Instruction Manual Revised - 09/11/2020 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model CE-CN-0034-T Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications -------------------------------------------------------------------------- 6 Installation -------------------------------------------------------------------------------------------- 7 Operation ----------------------------------------------------------------------------------------- 8 - 9 Maintenance --------------------------------------------------------------------------------------- 10 Troubleshooting ----------------------------------------------------------------------------- 10 - 11... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 Failure of product resulting from unauthorized modifications to the product. • Improper installation or failure to perform the necessary maintenance. This GUARANTEE is in addition to your Statutory Rights 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized...
-
Page 6: Technical Specifications
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use. Please see https://omcan.com/disclaimer for complete information. WARNING: The packaging components are classified as normal solid urban waste and can therefore be disposed of without difficulty. -
Page 7: Installation
Every installation site has different electrical wiring. Because many different local codes exist, it is the Owner and Installer’s responsibility to comply with those codes. Omcan is not responsible for any consequential damages as a result of failure to comply with installation requirements: 1. -
Page 8: Operation
Operation CONTROL PANEL 1. ON/OFF key. 2. Power function key. 3. Temperature function key. 4. Timer function key. 5. ‘+’ increase. 6. Power indicator light. 7. Temperature indicator light. 8. Timer indicator light. 9. LED for display Power Level, Temperature, Timer. 10. - Page 9 Operation placed. 4. - Touch TIMER button to select setting timer. TIMER mode: LED displays timer. - Touch TEMP/POWER button to select setting temperature or power. 5. Touch POWER or TIMER button to set power level or time. Timer mode: Touch “+”...
-
Page 10: Maintenance
Maintenance CARE AND CLEANING The Omcan Induction Cooktop is easy to keep clean. Be sure to follow these easy instructions: • Turn the unit OFF and remove the plug from any power outlets prior to cleaning. • When the unit is cool, wipe the surface and body with a damp cloth. Use a mild scouring agent on the stainless steel housing for greasy or resistant soiling. - Page 11 OTHER IMPORTANT SYMBOLS Dangerous voltage Non-ionizing electromagnetic radiation REFERENCE Item Number Model Number Description Manufacturer Model Number Super Wide Commercial Induction Cooker 44744 CE-CN-0034-T 18x22x5 Inches 3400W 220V/60/1 SL-34-TP2 cETLus/NSF for up to 14” Pot...
-
Page 12: Parts Breakdown
Parts Breakdown Model CE-CN-0034-T 44744... - Page 13 Parts Breakdown Model CE-CN-0034-T 44744 Item Item Item Description Position Description Position Description Position 350 x 350 x 4mm Flat Glass Plate for 7025 Fans on Main Board Cover for AD113 AD119 AD125 8025 Back Fans for SL-34-TP2 SL-34-TP2 SL-34-TP2...
-
Page 14: Electrical Schematics
Electrical Schematics Model CE-CN-0034-T 44744... -
Page 15: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 16 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
