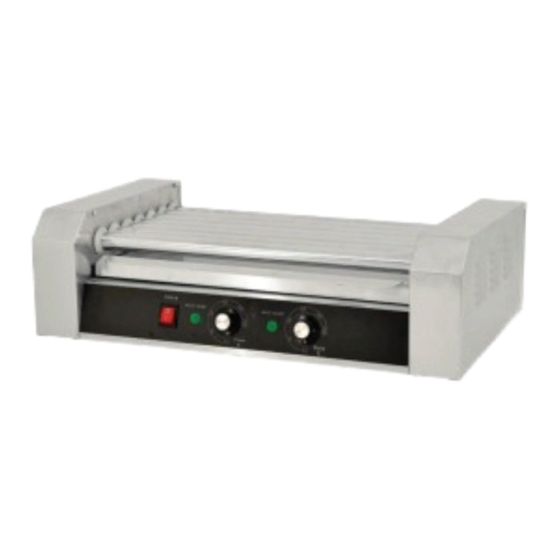

- Page 1 Hot Dog Rollers Models FW-CN-0005-E, 0007-E, 0009-E Items 44131, 44132, 44133 Instruction Manual Revised - 01/23/2018 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model FW-CN-0005-E / Model FW-CN-0007-E / Model FW-CN-0009-E Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 5 Installation --------------------------------------------------------------------------------------- 5 - 7 Operation --------------------------------------------------------------------------------------------- 7 Maintenance ------------------------------------------------------------------------------------- 7 - 8... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. -
Page 5: Technical Specifications
Safety and Warranty improper use. Please see www.omcan.com/warranty.html for complete info. WARNING: The packaging components (cardboard, polyethylene, and others) are classified as normal solid urban waste and can therefore be disposed of without difficulty. In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms. -
Page 6: Installation
Installation HOT DOG ROLLER COVER ASSEMBLY 1. Take the hot dog machine, Glass cover, and sideboards carefully out of the carton. Please review the parts list of the hot dog roller cover as follow to ensure you have all parts to complete assembly. 2. -
Page 7: Operation
Installation 4. Set the front stainless plate onto the edge of the top glass, and tighten the front stainless plate to the glass with nuts and bolts. Operation • Before the first use please apply some vegetable oil onto the reels, so that they can move around smoothly. •... -
Page 8: Parts Breakdown
FW-CN-0005-E Hot Dog Roller 5 Roll 110V/60HZ cETLus ET-R2-5 44132 FW-CN-0007-E Hot Dog Roller 7 Roll 110V/60HZ cETLus ET-R2-7 44133 FW-CN-0009-E Hot Dog Roller 9 Roll 110V/60HZ cETLus ET-R2-9 Parts Breakdown Model FW-CN-0005-E 44131 Model FW-CN-0007-E 44132 Model FW-CN-0009-E 44133... - Page 9 Parts Breakdown Model FW-CN-0005-E 44131 Item No. Description Position Item No. Description Position Item No. Description Position 64679 Tapping Screw for ET-R2-5 64701 Ground Wire Screw for ET-R2-5 64715 5 Roller Chain for ET-R2-5 64680 Rubber Foot for ET-R2-5 64702...
- Page 10 Parts Breakdown Model FW-CN-0009-E 44133 Item No. Description Position Item No. Description Position Item No. Description Position 64679 Tapping Screw for ET-R2-9 64701 Ground Wire Screw for ET-R2-9 64715 5 Roller Chain for ET-R2-9 64680 Rubber Foot for ET-R2-9 64702 Fuse for ET-R2-9 64718 Wheel Gear for ET-R2-9...
-
Page 11: Electrical Schematics
Electrical Schematics Model FW-CN-0005-E 44131 Model FW-CN-0007-E 44132 Model FW-CN-0009-E 44133 Power Switch Heater Motor Thermostatic Controller Thermostatic Controller Heating Indicator Light Heating Indicator Light... -
Page 12: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... - Page 13 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
- Page 14 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
-
Page 15: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 16 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
