Summary of Contents for Tractel solo 2000

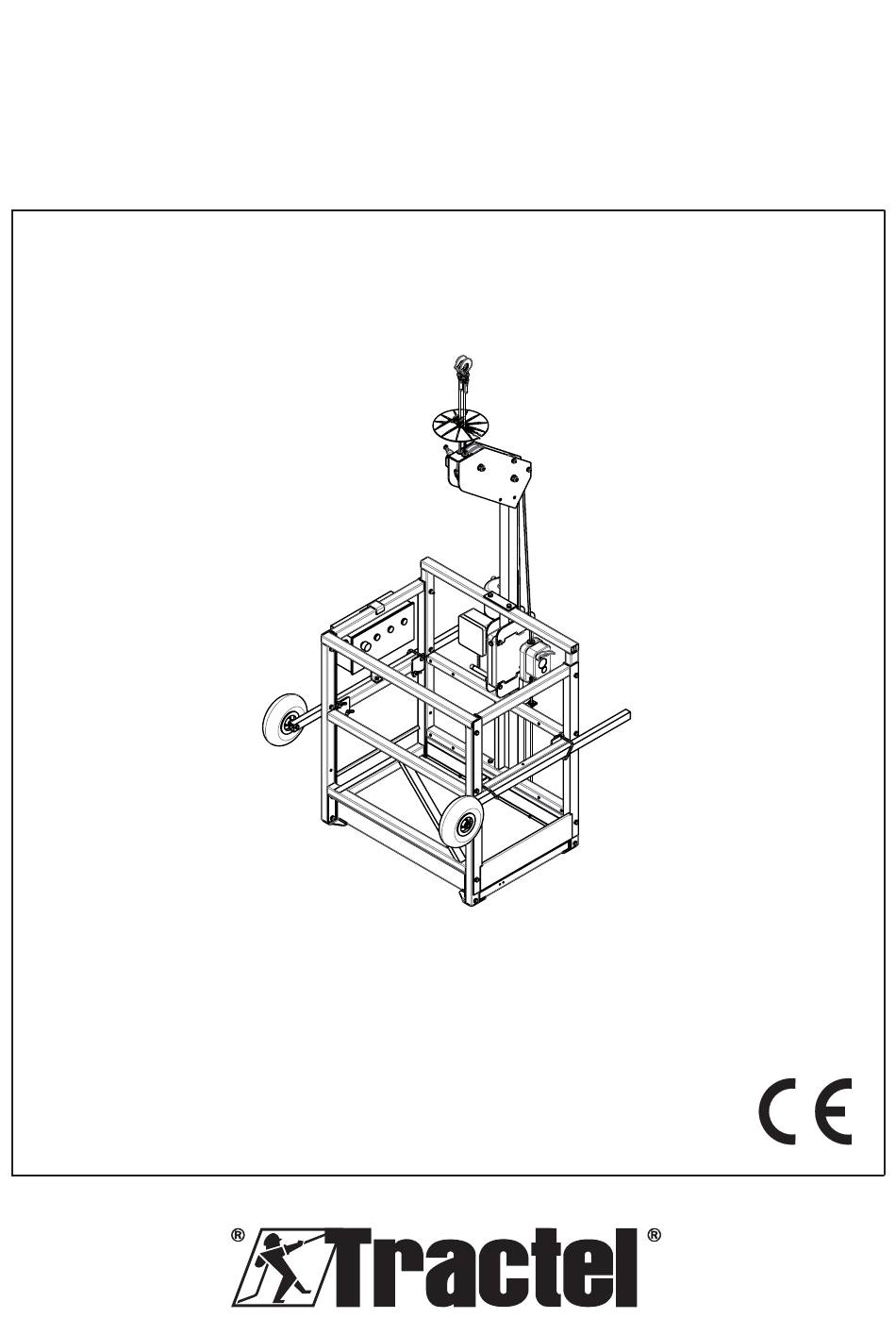

- Page 1 2000 temporary suspended platforms (TSP) equipped with TIRAK™ motor-driven hoist original installation and user manual Equipment in accordance with European Union Directives and manufactured per ISO 9001 MC1672 SOLO-8EN 08/2017...
-
Page 2: Table Of Contents
H.5. Equipment markings H.6. List of spare parts Appendix - "CE" Declaration of Conformity 19 Manufacturer: Tractel Secalt S.A. Rue de l’Industrie • L-3895 Foetz B.P. 75 • L-4001 Esch-sur-Alzette Phone: (352) 43 42 42-1 Fax (352) 43 42 42-200 e-mail : secalt@tractel.com... -
Page 3: Priority Recommendations
PRIORITY RECOMMENDATIONS • Temporary suspended platforms (TSP) are work equipment by a competent person is an important platforms intended for professional use. They must safety consideration. Maintenance not described in only be entrusted to personnel having the necessary this manual must be entrusted to the manufacturer or qualification and understanding of the product for to an approved After-Sales Service. -
Page 4: Description Of Equipment
DESCRIPTION OF EQUIPMENT B.2. TSP equipment The equipment covered by this manual comprises a B.1. Area of application SOLO work platform equipped with a TIRAK™ X-300 The equipment described in this manual is intended electric hoist, suspended by steel wire ropes to a for temporary use when conducting inspection and suspension structure. -
Page 5: Installation
INSTALLATION C.1. Assembly 9. Secure and provisionally block the façade 1. Assemble the front guard-rail (101.1) with a lateral protection wheels / support rollers (106/123) using guard-rail (105) using the upper bolt (a) without the stirrups and clamps (106a) on the under-rail of tightening the screw. -
Page 6: Electrical Equipment
C.2. Electrical equipment C.2.1. Configuration • Ensure the power supply is compatible with the connection of the control box. Three power supplies are available in the European Union : - three-phase 400V, 50 Hz - three-phase 230V, 50 Hz - single phase 230V, 50 Hz •... -
Page 7: Insert The Wire Ropes
Ensure that the wire rope diameter corresponds to the diameter indicated on the nameplate on the Fig. C.8 - TRACTEL® Fig. C.9 - Unwind the TRACTEL® wire ropes TIRAK™ hoist (107), that the length wire rope tip of the wire rope is sufficient and DANGER that the wire rope tip is as shown in fig. C.8. - Page 8 When setting up the suspension 108.4 wire ropes, always observe the following order: 1. Safety wire rope (152) 2. Lifting wire rope (151) C.3.1. Insert the safety wire rope 1. Run the wire rope over the two return pulleys on the side with the BLOCSTOP™...
-
Page 9: Safety Devices
SAFETY DEVICES To ensure reliable, safe operation D.3. Overload for the personnel, the platform is This built-in safety device is activated when the platform equipped with the following safety is overloaded or when it snags on a protruding object devices: on the building facade when moving upward. -
Page 10: Blocstop Bso Fall Arrest Device
D.7. BLOCSTOP BSO fall arrest device D.7.1. Operation Risk of injury by great fall due to a safety wire rope which is not The safety wire rope passes through a BLOCSTOP™ tensioned between the suspension BSO fall arrest device (fig. D1.7). The centrifugal and the BLOCSTOP™. - Page 11 If the fault persists, call in an After- Sales Service. DANGER D.7.3. Functional tests 108.1 The equipment is set on the ground (Fig. D.7.3). CLOSED Risk of injury! Wear safety gloves! 108.2 1. Press on the EMERGENCY STOP button (108.2). The BLOCSTOP™...
- Page 12 Risk of fall in the event of Case 2: the BLOCSTOP™ is closed: malfunction! - Carefully lower the platform - Do not place the equipment in until the safety wire rope is nearly service. tensioned between the suspension - Immediately replace the and the BLOCSTOP™.
-
Page 13: Using The Platform
Special safety instructions The equipment is intended for use in lighted areas, either naturally or Only wire ropes specified by the artificially lighted. Where artificial TRACTEL® Group should be used. lighting is used, the operator must These should be replaced if any of have sufficient lighting. DANGER the defects indicated in chapter G. -
Page 14: Rated Load
E.3. Rated load E.6. Emergency descent Use only in the event of a power Rated load is 120 kg ( = 1 person taken into account for failure or to release the upper limit 80 kg + 40 kg material). switch. -
Page 15: Move Platform Laterally
E.7. Move platform laterally 1. Stop the platform at around 30 cm off the ground. 2. Remove the ballast weight (113) from the safety wire rope. 3. Give sufficient slack to the safety wire rope. 4. Set the platform on the ground and give sufficient slack to the lifting wire rope. -
Page 16: Troubleshooting
TROUBLESHOOTING This chapter contains instructions for the identification and location of faults in view of repairing these on platforms equipped with electric TIRAK™ hoists. Fault Cause Intervention Hoist does not operate when • No voltage. • Have presence of voltage checked by an platform is set into service. -
Page 17: Maintenance And Inspection
G.2.2. Replacing the wire ropes Regularly check correct operation of the fall arrest de- vice (see chapter D.). Only the wire rope recommended by the TRACTEL ® Group will ensure safe operation of the hoist. If the BLOCSTOP™ does not A TIRAK™... -
Page 18: Spare Parts
SPARE PARTS H.1. Platform Indicate the type of platform, the code number and the designation of the part. H.2. TIRAK™ hoist H.2.1. Wire rope drive mechanism In addition to the code number and part designation, please indicate the • hoist model •... -
Page 19: Appendix - "Ce" Declaration Of Conformity
Temporary suspended platform "TSP" Model "SOLO 2000" (no serial number) ® The manufacturer: Tractel Secalt S.A. (a TRACTEL Group company) 3, rue du Fort Dumoulin P.O. box 1113, L-1011 Luxembourg Tel. (352) 43 42 42-1 * Fax (352) 43 42 42-200 declares that the machine is in accordance with the model having received the CE type approval No.
