TDK-Lambda CHVM3 Series Instruction Manual page 6

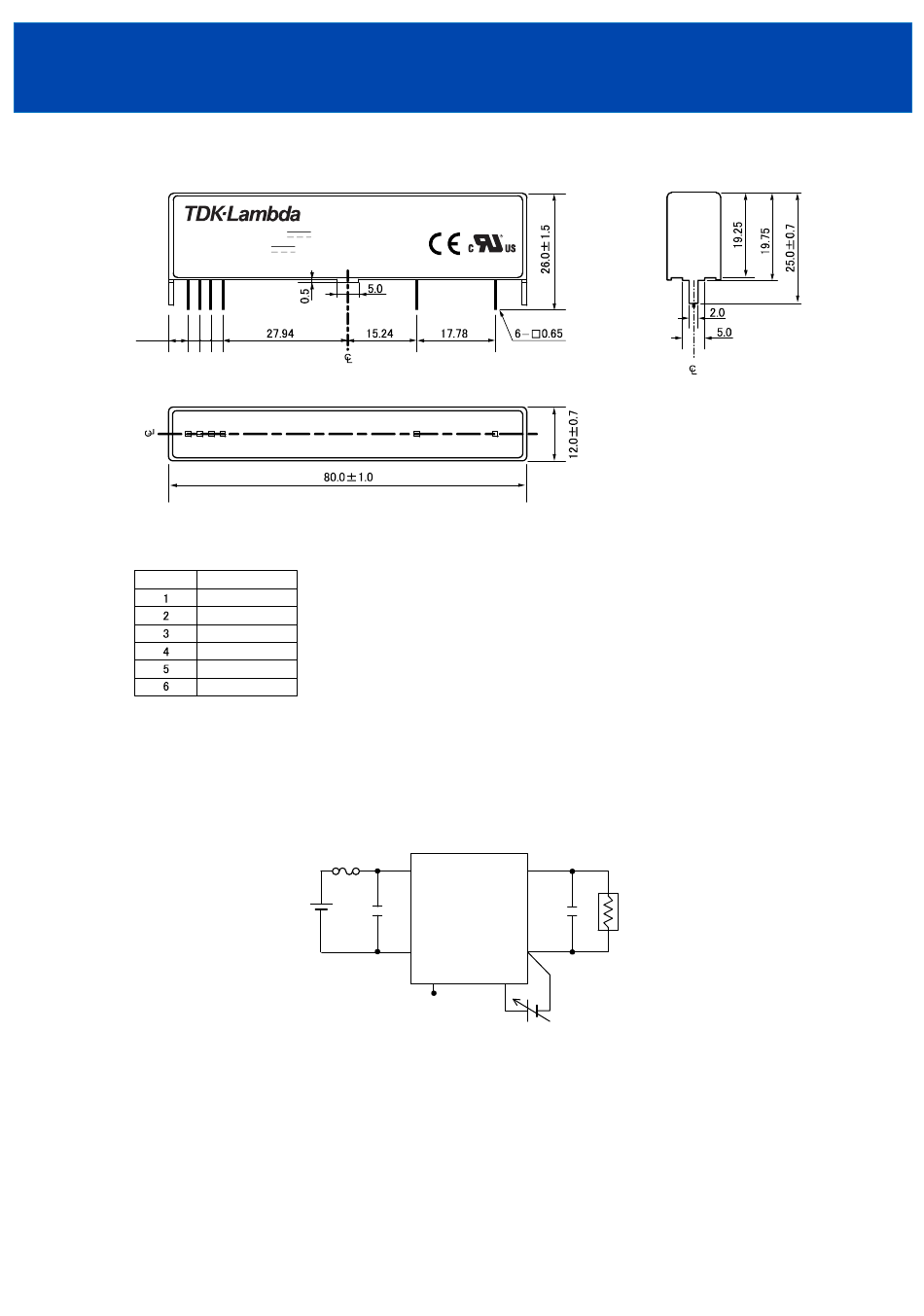

■ Shape, dimensions and terminal composition
Input : +10.8‐+13.2V
Output : 0‐+180V
+Vin ‐Vin Vcont Vref
1 2 3 4
(4.44)
2.54 3=7.62
×
Pin­No. Pin name
+Vin
­Vin
Vcont
Vref
Vout (com)
Vout (+ or ­)
Weight : 46g typ. Units : mm
■Standard usage instructions
The CHVM series does not require any external parts, however when the impedance is high, for example:
the distance between the power supply and converter is long, the input line is thin, or the input side has a filter
then connecting a capacitor C1 to the input side is recommended.
Place the capacitor as close as possible to the converter pin side, to lower the lead inductance.
CHVM2R7‐12‐0180PW
MADE IN JAPAN
350mA
0‐15mA
Vout(Com)
5
( Bottom view )
1)Pins
Material : Phosphorous bronze
Treatment：Ni base Au coating
2)Case
Material : Brass
Treatment : Nickel coating
Tolerance unless otherwise specified ±0.5
CHVM
F1
1
+Vin
Vout (+ or -
+
12V
C1
-Vin
2
Vref
4
(OPEN )
<Page> 6/10
Vout(+ or ‐)
6
6
)
C2 Load
5
Vout (Com)
Vcont
C1=47 μF
3 C2 =4700 pF
+
Output voltage control
(apply 0V to 4 V)
