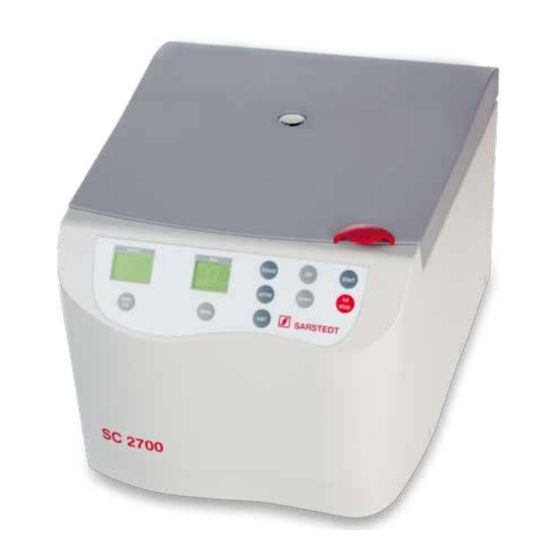

Instruction Manual SC 2700 Centrifuge Instruction Manual SC 2700 Centrifuge Contents Starting and stopping the centrifuge 2.7. 1 Starting the centrifuge Product description 2.7. 2 Stopping the centrifuge Imbalance Safety Information Intended use Maintenance Brief Description Care and maintenance Scope of Delivery 3.1.1...
In case of emergency, mains disconnection with an emergency switch must be installed, The SC 2700 device is a non-cooled centrifuge which can be operated with mains voltages of 100 - 230 V using if possible outside of the room.
Permissible mains voltage / max. power consumption / mains frequency 30 cm of the centrifuge during centrifuging. • The SC 2700 centrifuge is not explosion-protected and therefore must not be operated in rooms or areas Electrical power consumption where there is an explosion hazard. Centrifuging of flammable, explosive, radioactive substances, or chemicals which react violently with each other is prohibited. The final decision regarding the risks Read the instruction manual before putting the device into operation associated with the use of such substances is the responsibility of the user of the centrifuge.
Instruction Manual SC 2700 Centrifuge Instruction Manual SC 2700 Centrifuge 1.6.4 Excluded modes of operation Operating and display elements • Incorrectly installed centrifuge, rotor and accessories • Operation with the centrifuge partially disassembled (e.g. without cover panel). • Operation of the centrifuge after modifications to mechanical or electrical assemblies by unauthorised persons.
Instruction Manual SC 2700 Centrifuge Instruction Manual SC 2700 Centrifuge Note: Basic settings After switching on the centrifuge, the display field “rpm/rcf” (A-1) briefly displays the current software version and then the device type “2700”. 1.8.1 Accessing the “Basic Settings” menu The following options exist in the basic settings menu: Acoustic signal when switching on/off Switching key tones on/off The following operating data can also be accessed in this menu:...
Instruction Manual SC 2700 Centrifuge Instruction Manual SC 2700 Centrifuge 1.8.2 Acoustic signal when switching on/off 1.8.4 Accessing operating data Open the “Basic Settings” menu as described in 1.8.1. Then press the “time” key (3). The currently selected The operating data of the centrifuge can be accessed in the “Basic Settings” menu. Open the “Basic Settings”...
Instruction Manual SC 2700 Centrifuge Instruction Manual SC 2700 Centrifuge Operation 2.1.2 Loading the rotor Inserting and loading the rotors The rotor must only be loaded symmetrically (see Figure 10 and 11). The sleeves must only be used with the vessels for which they are intended. Weight differences between the filled sample vessels must be kept small.
Instruction Manual SC 2700 Centrifuge Instruction Manual SC 2700 Centrifuge Mains switch “Blood” program The mains switch is located on the rear side of the centrifuge (see Figure 12). The program for centrifuging blood samples is accessed by pressing the “blood” key (4). The text “program 01” (M7) is shown in the display field “time” (A-2). The parameters for the RCF value and the time are fixed and...
Instruction Manual SC 2700 Centrifuge Instruction Manual SC 2700 Centrifuge 2.6.1 Pre-selection of the RCF value or speed This pre-selection is activated with the “rpm/rcf” key (2). When this key is pressed once, the text “rcf” (M6) flashes. Pre-selection of the speed can be selected be pressing the key again. The flashing text “rpm” (M5) is displayed. The required value can then be set with the “up” (7) and “down” (7) keys. The set value is displayed permanently in the display field (A-1) before, during and after the run.
Instruction Manual SC 2700 Centrifuge Instruction Manual SC 2700 Centrifuge Maintenance Imbalance If the rotor is unevenly loaded the drive is switched off during the acceleration phase (starting). The rotor brakes Care and maintenance to a stop. 3.1.1 General If the word “error” (M8) and the error number “01” are displayed in the “time” field (A-2), the weight difference Care: between the two samples is too large. -> Balance the samples precisely. Care of the centrifuge is essentially limited to cleaning the accessible surfaces of the Load the rotor as described in point 2.1.2 and 2.1.3.
Instruction Manual SC 2700 Centrifuge Instruction Manual SC 2700 Centrifuge 3.1.2 Cleaning / disinfecting the device Gas sterilisation 1. With the lid open, switch off the mains switch and unplug from the power supply. The rotor and sleeves may be gas sterilised with ethylene oxide. Depending on the duration of the application, the objects must be ventilated for an adequate period before being used again.
Instruction Manual SC 2700 Centrifuge Instruction Manual SC 2700 Centrifuge Overview of possible error messages and help for remedying faults 4.2.2 Description of the error message system 4.2.1 Unlocking the lid in case of power failure The error message “error” (M8) is given by a two digit number in the “time” window (A-2) (Example, see Figure 19).
Instruction Manual SC 2700 Centrifuge Instruction Manual SC 2700 Centrifuge Transport, storage and disposal Annex Transport EC Declaration of Conformity Pg. 28 Remove the rotor from the centrifuge before transport. Table 1: Technical Data Pg. 29 Only transport the centrifuge in the original packaging.
Page 16
Instruction Manual SC 2700 Centrifuge Instruction Manual SC 2700 Centrifuge Table 2: Permissible filling weight Table 6: “Blood” and “Urine” program parameters Program Speed Rotor number Max. RCF Total filling weight 01 – “Blood” 2,700 x g 4,310 rpm 8 min 221.88 V01 2,700 x g 150 g 02 – “Urine”...
Instruction Manual SC 2700 Centrifuge Instruction Manual SC 2700 Centrifuge Return form: Decontamination Certificate Decontamination Declaration for return of goods This must be enclosed with all returns of devices and assemblies! The fully completed decontamination declaration is a prerequisite for the acceptance and further processing of the return.
