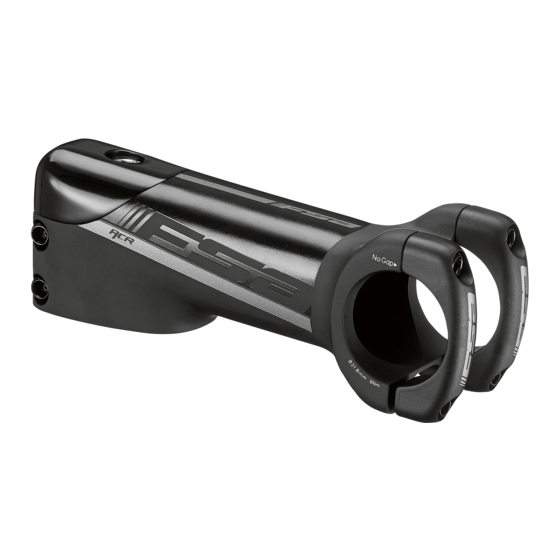

NS ACR Stem Installation Instructions
Published – Oct, 2018. ZS210.v0 © Full Speed Ahead
Introduction
Congratulations on your purchase Full Speed Ahead product. Please read these instructions and follow them for correct use. Failure to follow the warnings and instructions could result in damage to product not covered
under warranty, damage to bicycle; or cause an accident resulting in injury or death. Since specific tools and experience are necessary for proper installation, it is recommended that the product be installed by a qualified
bicycle technician. FSA & Vision assumes no responsibility for damages or injury related to improperly installed components.
Warranty
Full Speed Ahead (FSA) warrants all FSA, Vision, Metropolis and RPM products to be free from defects in materials or workmanship for a period of two years after original purchase unless otherwise stated in the full
warranty policy. The warranty is non-transferable and valid to the original purchaser of the product only. Any attempt to modify the product in any way such as drilling, grinding, and painting will void the warranty. For
more information on warranty policy and instructions for completing a warranty claim, check out the Full Warranty Policy found at our website: http://www.fullspeedahead.com/en/support/warranty-policy
Specification
Item Number / Model Name ST-OS-160/ NS Series ACR
FSA road, MTB and stems are compatible with industry standard steerer tube and handlebar diameters. To choose the correct FSA stem, first check the specific diameter of steerer tube and handlebar to be used.
Components

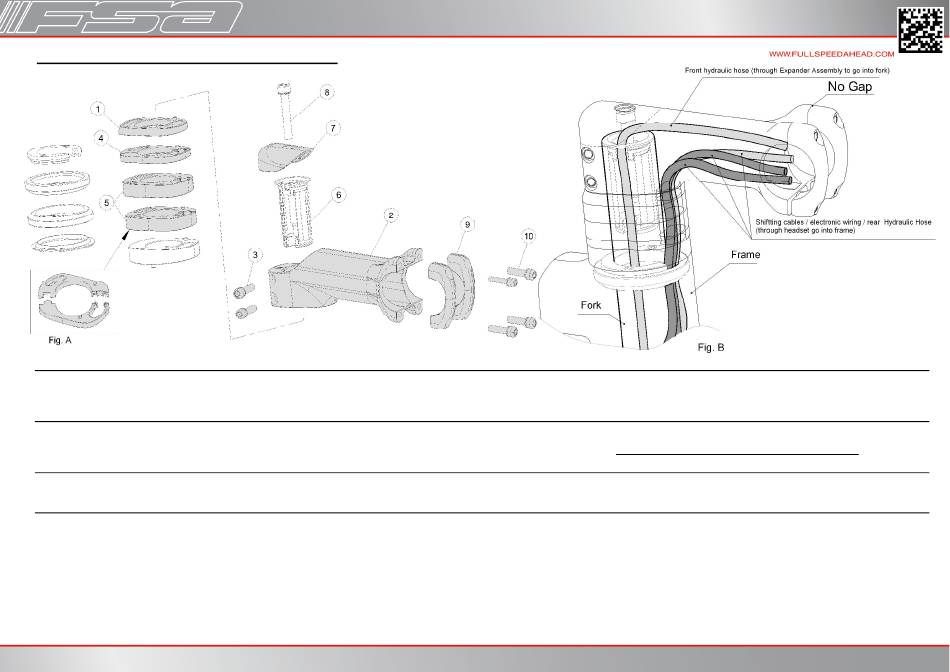

Follow the assembly order in the illustration:
① Spacers
② NS ACR Stem Body x1
③ Fixing Bolts x2
④ Left / Right spacer 5mm x1
⑤ Left / Right spacer 10mm x2
⑥ Expander Assembly x1 (Not include)
⑦ Top cap x1
⑧ Compression Bolt x1 (Not include)
⑨ Stem Face Plate x2
⑩ Face Plate Fixing bolts x4
Advertisement
Table of Contents
Related Manuals for FSA NS ACR Stem
Summary of Contents for FSA NS ACR Stem
- Page 1 Warranty Full Speed Ahead (FSA) warrants all FSA, Vision, Metropolis and RPM products to be free from defects in materials or workmanship for a period of two years after original purchase unless otherwise stated in the full warranty policy. The warranty is non-transferable and valid to the original purchaser of the product only. Any attempt to modify the product in any way such as drilling, grinding, and painting will void the warranty. For more information on warranty policy and instructions for completing a warranty claim, check out the Full Warranty Policy found at our website: http://www.fullspeedahead.com/en/support/warranty-policy...
- Page 2 Install fork through the stem body, place the spacers ① over the fork and then according to your demand place left/right spacers ④、⑤ (④、⑤ are detachable, fig A). Note: Carbon steerer tubes should not extend through the stem completely to ensure top cap can be used to tighten the NS ACR stem. Ensure that the steerer tube is clean and free of burrs or chips before installing stem onto steerer tube.
