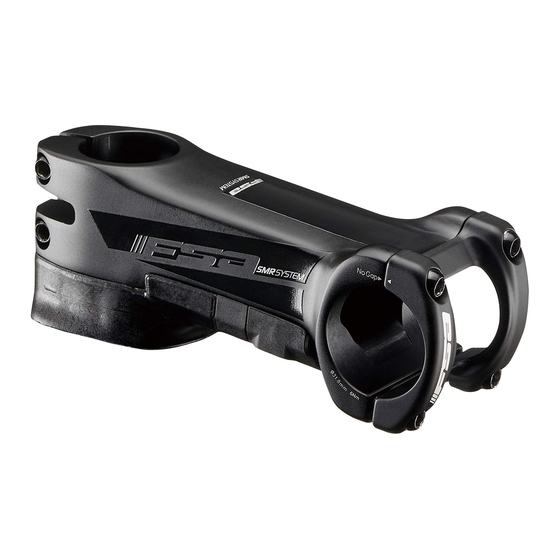

NS SMR Stem Installation Instructions
Published –Mar. 2020 ZS219.v0 © Full Speed Ahead
Top View
Fig. C
Fig. A
Introduction
Congratulations on your Full Speed Ahead product. Please read these instructions and follow them for correct use. Failure to follow the warnings and instructions could result in damage to product not covered under
warranty, damage to bicycle; or cause an accident resulting in injury or death. Since specific tools and experience are necessary for proper installation, it is recommended that the product be installed by a qualified bicycle
technician. FSA & Vision assumes no responsibility for damages or injury related to improperly installed components.
Warranty
Full Speed Ahead (FSA) warrants all FSA, Vision and RPM products to be free from defects in materials or workmanship for a period of two years after original purchase unless otherwise stated in the full warranty policy.
The warranty is non-transferable and valid to the original purchaser of the product only. Any attempt to modify the product in any way such as drilling, grinding, and painting will void the warranty. For more information on
warranty policy and instructions for completing a warranty claim, check out the Full Warranty Policy found at our website: http://www.fullspeedahead.com/support/warranty-policy/
Specification
Model Name / Item Number FSA SMR / ST-OS-185/SMR
Model Name / Item Number Fazua with SMR Stem / ST-OS-186/SMR/FU
FSA road, MTB and Vision stems are compatible with industry standard steerer tube and handlebar diameters. To choose the correct FSA stem, first check the specific diameter of steerer tube and handlebar to be used.
Components

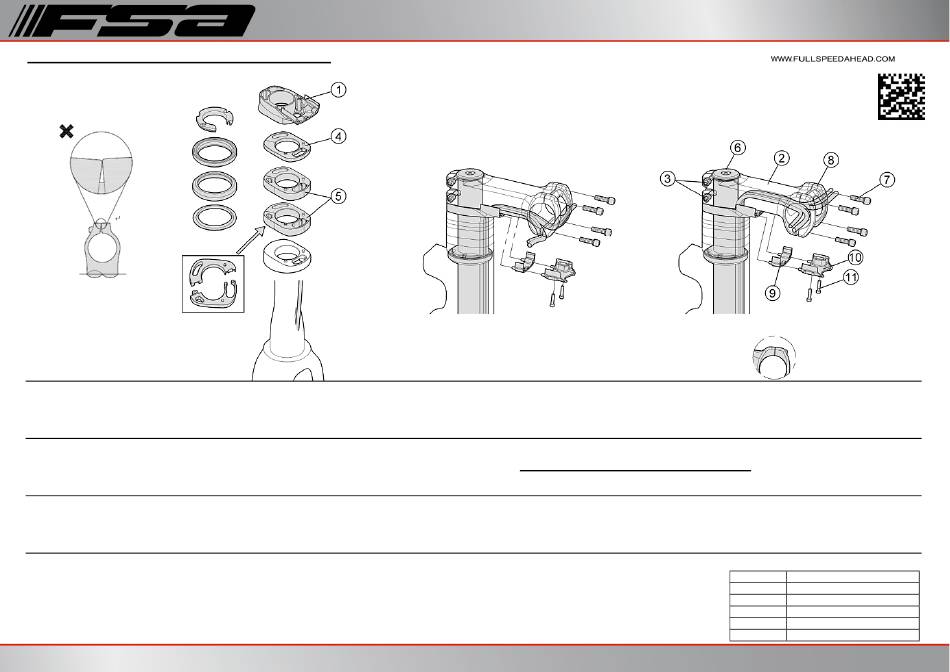

Follow the assembly order in the illustration:
① Spacers
② NS SMR Stem Body x1
③ Fixing Bolts x2
Fig. B
④ Left / Right spacer MW010 5mm x1
⑥ Top cap x1
⑤ Left / Right spacer MW011 10mm x2
⑦ Face Plate Fixing bolts x4
⑧ Stem Face Plate x1
wires route beneath the Stem
Body and through the cover
⑨ Cable Cover Spacer (Table 1)
⑩ Cable Cover x1
⑪ Cable Cover Fixing bolts x2
wires route through the Stem Body
Fig. D
Table 1
Stem length Usage of Cable Cover Spacer ⑨
90L
0
100L
1
110L
2
120L
3
130L
4
Advertisement
Table of Contents
Related Manuals for FSA NS SMR
Summary of Contents for FSA NS SMR
- Page 1 Warranty Full Speed Ahead (FSA) warrants all FSA, Vision and RPM products to be free from defects in materials or workmanship for a period of two years after original purchase unless otherwise stated in the full warranty policy. The warranty is non-transferable and valid to the original purchaser of the product only. Any attempt to modify the product in any way such as drilling, grinding, and painting will void the warranty. For more information on warranty policy and instructions for completing a warranty claim, check out the Full Warranty Policy found at our website: http://www.fullspeedahead.com/support/warranty-policy/...
- Page 2 Measure Fork Steerer tube and handlebar clamp area before installing stem. Use an accurate measuring device such as a caliper or micrometer. Installing stem onto an undersized steertube or handlebar can cause stem or bar to slip causing loss of control of bicycle; resulting in an accident, damage to bicycle, injury or death. Use FSA Dynamic Assembly Paste between stem, steerer tube, and handlebar to reduce chances of slippage.
