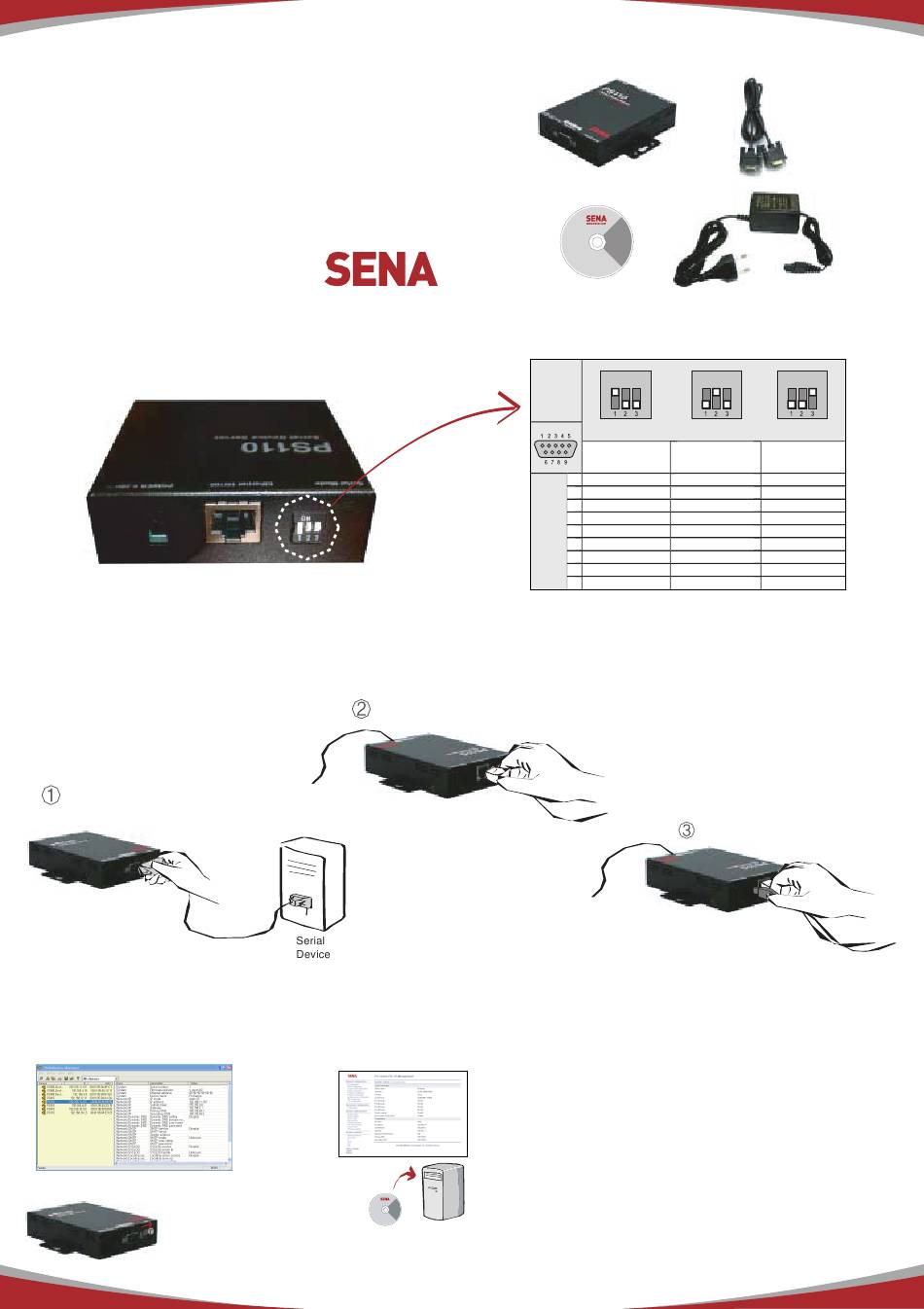

Sena HelloDevice Pro Series Quick Start Manual

Quick Start Guide

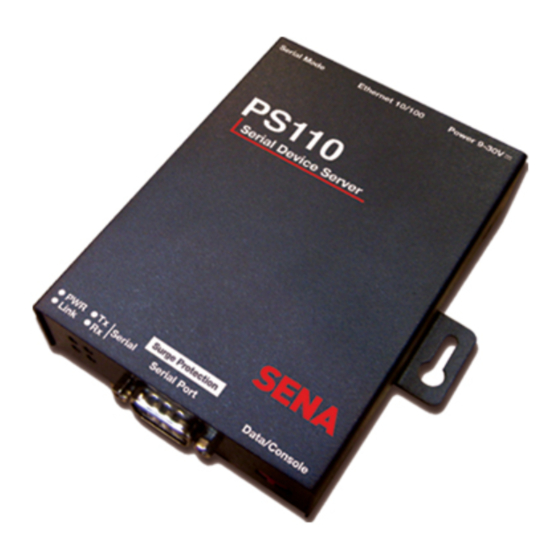

PS110
HelloDevice Pro Series
Set DIP Switch & Pin-outs
Set serial DIP switch according to your
serial device requirements(RS-232/422/485)
Connection
Connect serial device
Configuration
User can choose one of the following processes
1. Configuration using the HelloDevice manager
2. Configuration using the Hyper terminal or Telnet
Connect to host PC. Then,
slide Data/Console switch
to the Console side.
Set up the serial configuration parameters of the
terminal emulation program as follows:
9600 Baud rate/8 Data bits/None Parity/
1 Stop bits/No Hardware flow control
www.sena.com
Connect Ethernet cable
3. Configuration using the Web
Insert CD
www.sena.com
ON
DIP
Switch
Setting
RS-232 Mode RS-422/485 Full Mode
RS232
(console and serial ports) (serial ports only)
1 DCD
2 Rx
3 Tx
4 DTR
DB-9
5 GND
Pinouts
6 DSR
7 RTS
8 CTS
9 -
* Please note that the power of the Pro Series should be
turned off before changing the serial communication type.
HelloDevice Manager and User Manual are available for
download from CD or Sena website at
http://www.sena.com/support/downloads/.
For more information, refer to the user manual.
www.sena.com
Visit us at
Copyright 1998-2005, Sena Technologies, Inc. All rights reserved.
ON ON
RS-485 Half Mode
RS422 RS485
(serial ports only)
Tx+ Tx+
RX+ RX+
RTS+ -
CTS+ -
GND GND
TX- TX-
RTS- -
RX- RX-
CTS- -
Connect Power supply
