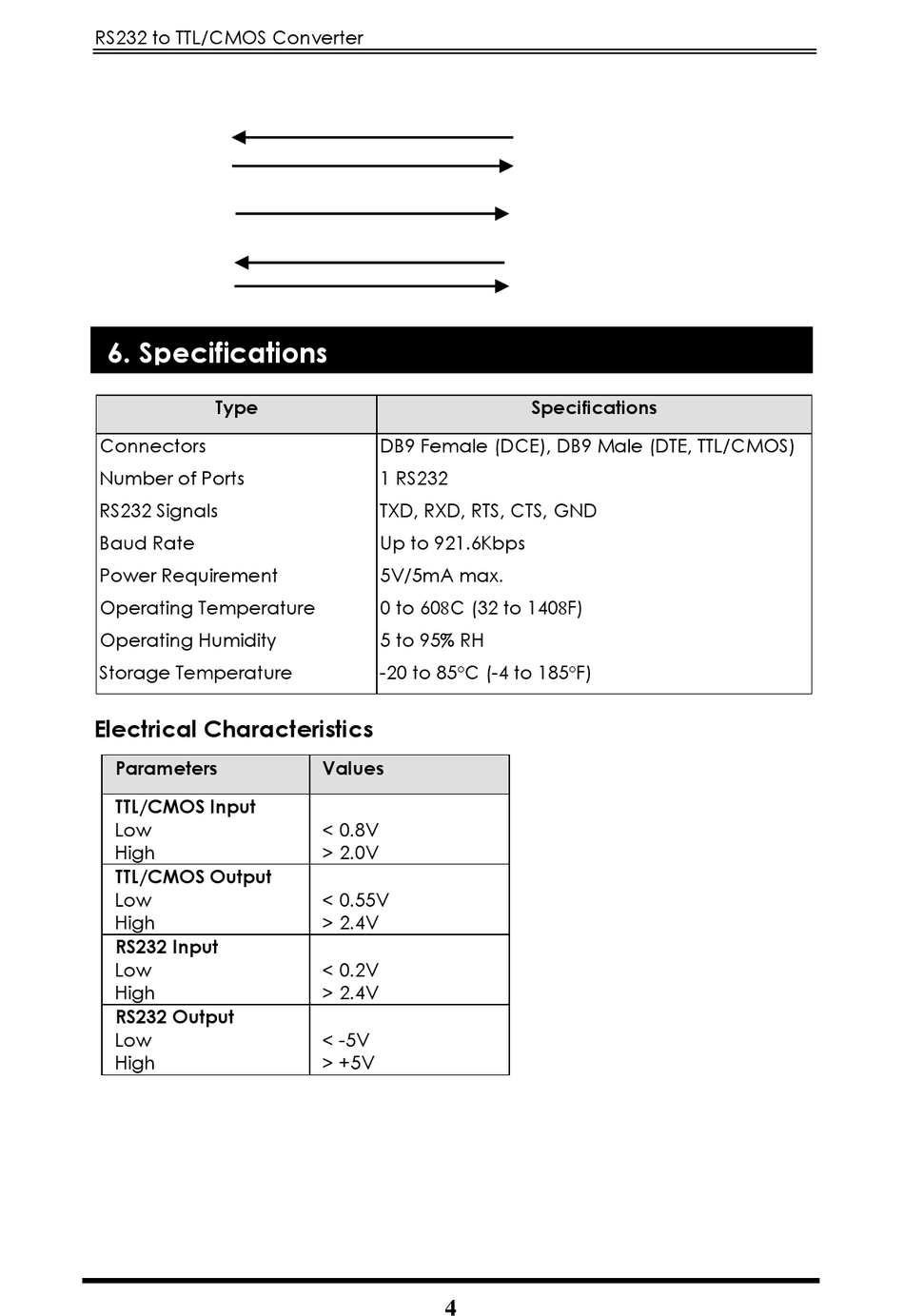

RS232 to TTL/CMOS Converter
6. Specifications
Type
Connectors
Number of Ports
RS232 Signals
Baud Rate
Power Requirement
Operating Temperature
Operating Humidity
Storage Temperature
Electrical Characteristics
Parameters
TTL/CMOS Input
Low
High
TTL/CMOS Output
Low
High
RS232 Input
Low
High
RS232 Output
Low
High
DB9 Female (DCE), DB9 Male (DTE, TTL/CMOS)
1 RS232
TXD, RXD, RTS, CTS, GND
Up to 921.6Kbps
5V/5mA max.
0 to 60C (32 to 140F)
5 to 95% RH
-20 to 85C (-4 to 185F)
Values
< 0.8V
> 2.0V
< 0.55V
> 2.4V
< 0.2V
> 2.4V
< -5V
> +5V
4
