Rev-A-Shelf NOT-SO-LAZY SUSAN Installation Instructions Manual page 3

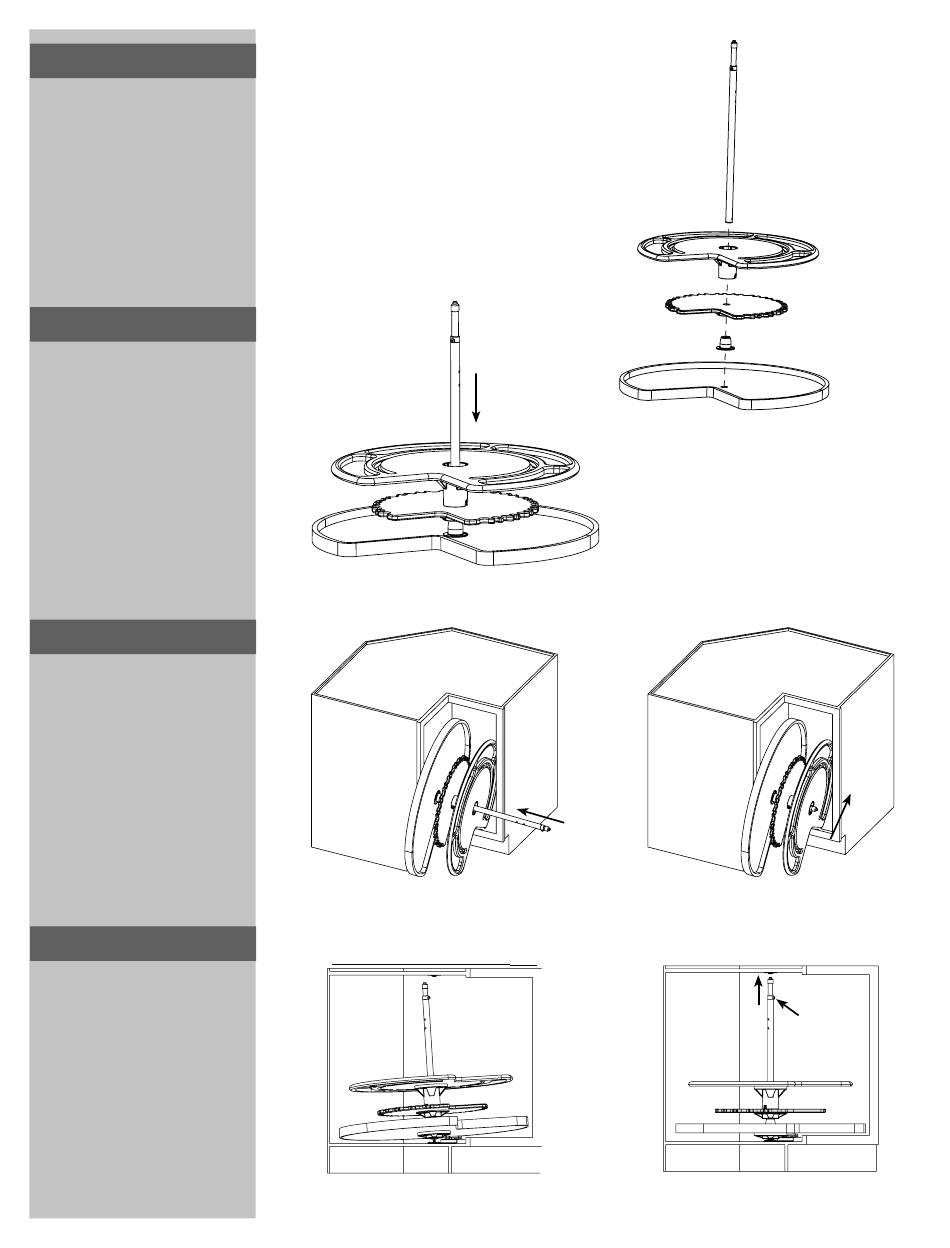

STEP 6
Assemble these components to the
post assemby in this order: upper
tray assembly, arrester tray assembly,
chrome hub and bottom tray
assembly (See Figure F).
STEP 7
Push all assemblies toward the
bottom of the post assembly to insert
into the cabinet. (See Figure G).
STEP 8
Place in cabinet as shown, push the
post assembly into the cabinet to
clear the face frame and slide the
trays into the cabinet. Once inside,
push the assemblies back toward the
bottom of the post (See Figures H-1
and H-2).
STEP 9
Place the post on the bottom pivot
bracket, align the upper post and
insert into the top pivot bracket then
tighten the post screw (See Figures
I-1 and I-2).
FIG. G
FIG. H-1
FIG. I-1
INSTALLATION INSTRUCTIONS: NOT-SO-LAZY SUSAN
FIG. F
FIG. H-2
FIG. I-2
Post Screw
3
