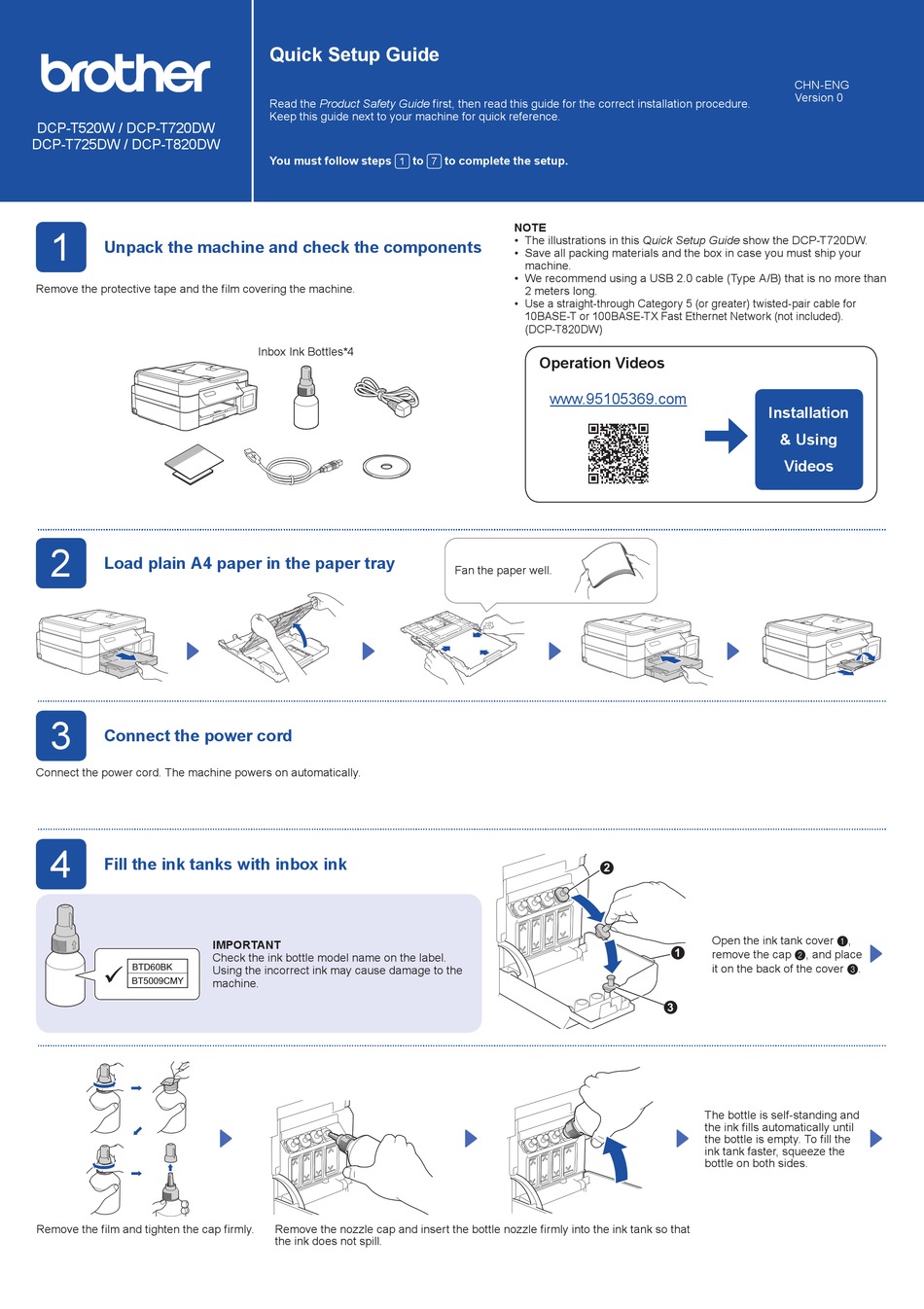

Brother DCP-T520W Quick Setup Manual

DCP-T520W / DCP-T720DW
DCP-T725DW / DCP-T820DW
1

Unpack the machine and check the components

Remove the protective tape and the film covering the machine.
2

Load plain A4 paper in the paper tray

3

Connect the power cord

Connect the power cord. The machine powers on automatically.
4

Fill the ink tanks with inbox ink

BTD60BK
BT5009CMY
Remove the film and tighten the cap firmly.
Quick Setup Guide
Read the Product Safety Guide first, then read this guide for the correct installation procedure.
Keep this guide next to your machine for quick reference.
You must follow steps
Inbox Ink Bottles*4
IMPORTANT
Check the ink bottle model name on the label.
Using the incorrect ink may cause damage to the
machine.
Remove the nozzle cap and insert the bottle nozzle firmly into the ink tank so that
the ink does not spill.
to to complete the setup.
1 7
NOTE
• The illustrations in this Quick Setup Guide show the DCP-T720DW.
• Save all packing materials and the box in case you must ship your
machine.
• We recommend using a USB 2.0 cable (Type A/B) that is no more than
2 meters long.
• Use a straight-through Category 5 (or greater) twisted-pair cable for
10BASE-T or 100BASE-TX Fast Ethernet Network (not included).
(DCP-T820DW)
Operation Videos
www.95105369.com
Fan the paper well.
Installation
2
Open the ink tank cover a,
1
remove the cap b, and place
it on the back of the cover c.
3
The bottle is self-standing and
the ink fills automatically until
the bottle is empty. To fill the
ink tank faster, squeeze the
bottle on both sides.
CHN-ENG
Version 0
& Using
Videos
