5

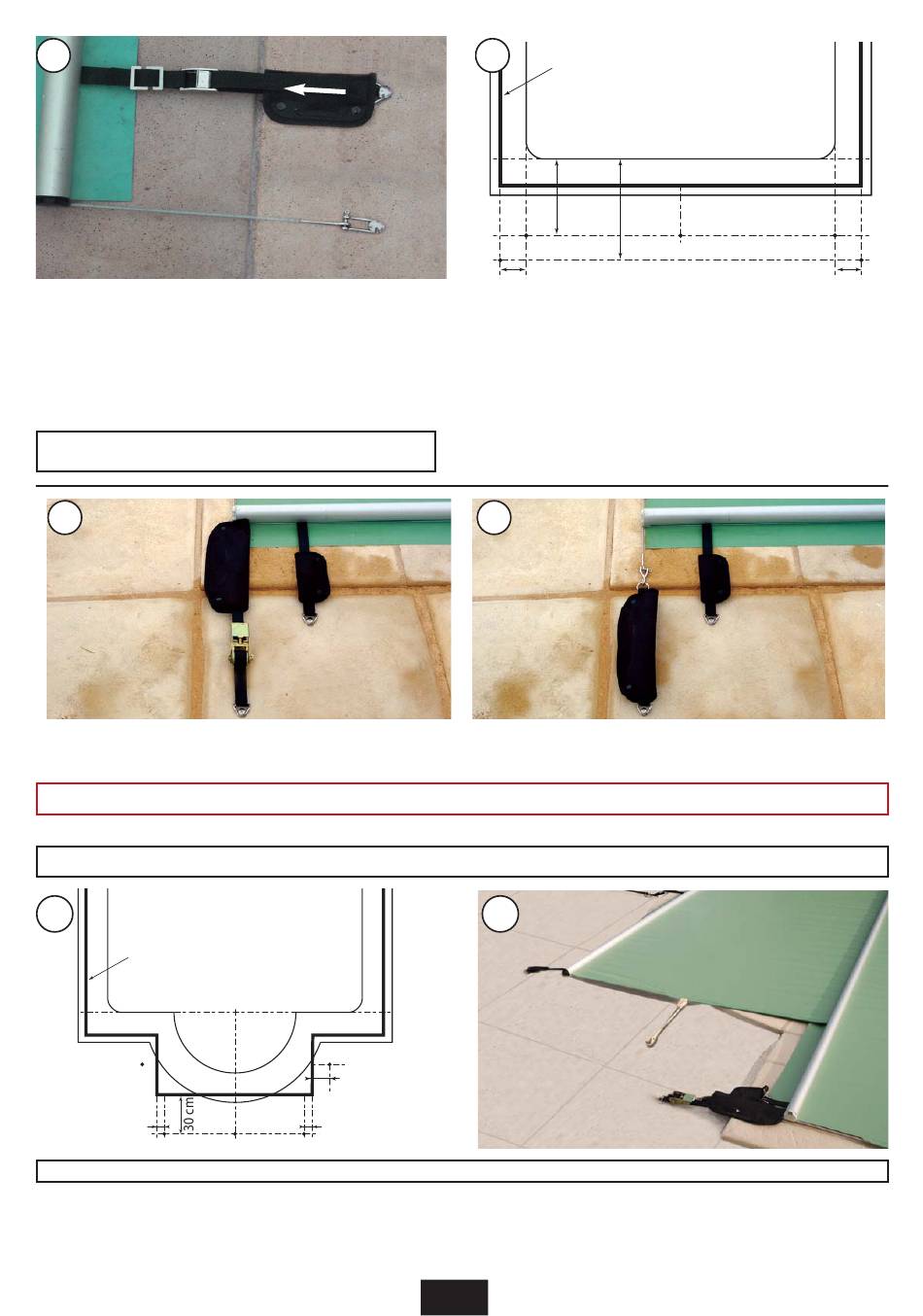

Slide small protective sleeves onto the straps.
Hook the rings at the tips of the bar tension straps onto the bar
tension strap pegs. Hook the cable dee shackles onto the cable
anchoring pegs. The dee shackle screws should be tightened to
torque by an adult to ensure that they could not be loosened by a
child.
Adjust the bar tension strap buckles to ensure that the bar is parallel
to the pool wall.
A ,
S OF THIS POINT INSTALLATION WILL CONTINUE ON THE
OPPOSITE WIDTH OF THE POOL
7
- Slide a large protective sleeve onto each cable tension strap (7).
- Use the ratchet buckles to tension each cable (do not over tension, this could twist the peg with bushing).
- Hook the bar tension straps onto their respective pegs and tension. Apply the same tension to each of the three straps.
Over-tensioning the bar tension straps can lead to the permanent deformation of the bar to which it is attached.
- Cover the ratchet buckles and cam buckles with the protective sleeves (8).
POOLS FEATURING ROMAN STAIRS OR STRAIGHT STAIRS AT THE END OF THE POOL
9
cover
Couverture
C
10 cm
A
axe du bassin
S
LIDE THE STAIR EXTENSION WITH RESPECT TO THE COVER UNTIL IT IS PERFECTLY POSITIONED
For pools featuring straight stairs or roman stairs respect the diagram illustrated above.
A = peg position for attachment of bar tension straps.
C = Fixkit peg position. If the stair extension measures less than 1.40 m, only one Fixkit will be placed in the middle.
On longer step pieces several other Fixkits will need to be positioned at regular intervals. The distance separating
two Fixkits should be between 50 and 70 cm
.
C
milieu de l'extension
30 cm
10 cm
A
A
pool axis
6
cover
Couverture
50 cm
A
B
20 cm
On the opposite side, mark the position of the 5 pegs as
described previously. This time, the pegs holding the cables
will be furthest from the pool edge (refer to the diagram
above).
A = peg position for attachment of bar tension strap.
B = peg position for attachment of cable tension strap.
Drill holes and insert the pegs with bushings as described
in step 4. Hook the straps on as described in step 5.
8
10
2006/08 - Indice de révision : G - Code : 0033870
18/34
80 cm
A
pool axis
axe du bassin
.
A
B
20 cm
