P
OOL FEATURING STEPS ALONG THE LENGTH
I
F THE POOL STEPS ARE LOCATED ON THE LENGTH OF THE POOL THE SEPARATE STEP PIECE MUST BE FITTED FIRST
Inner pool wall
10 cm
Profile
replacing the
coping

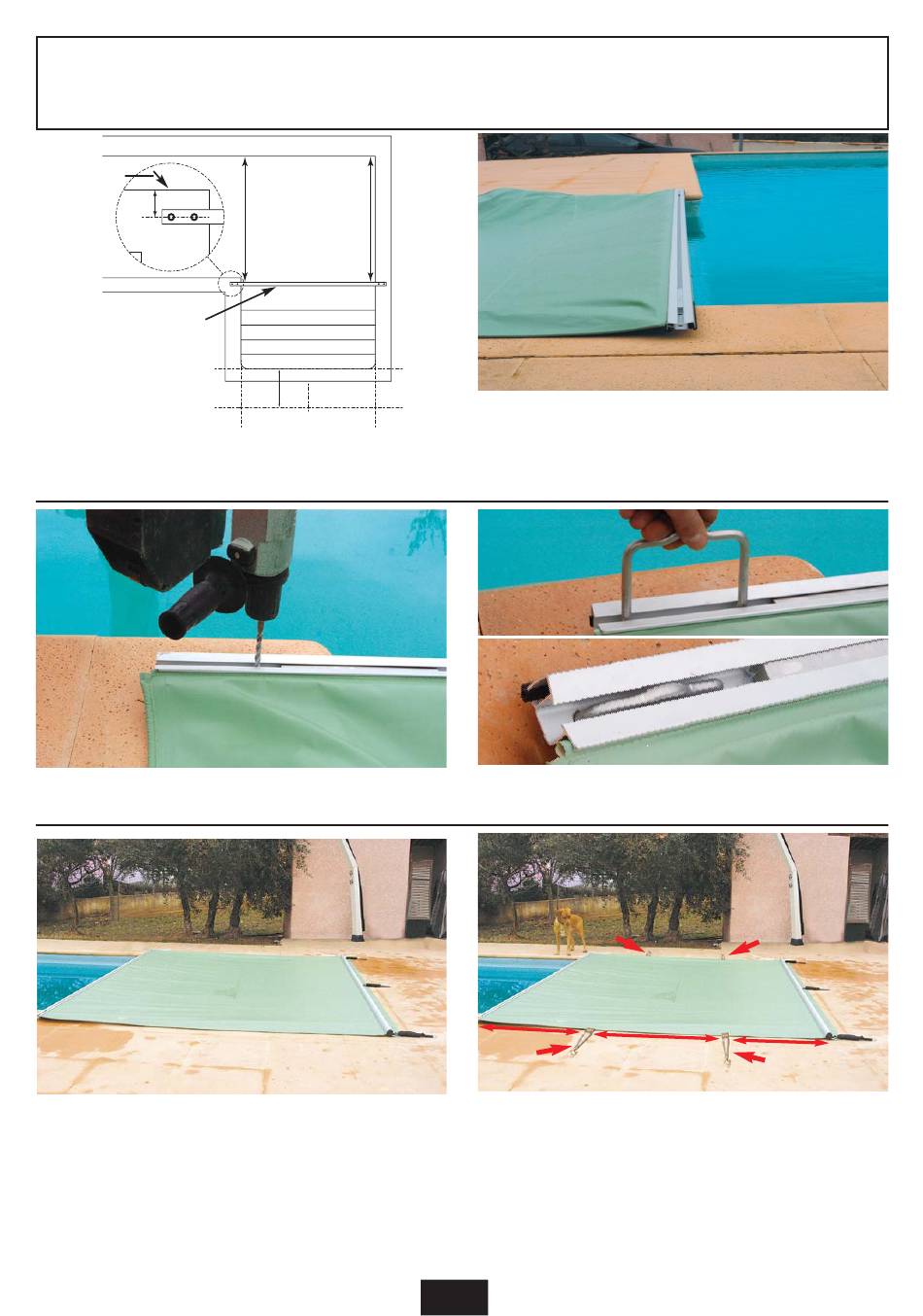

Place the separate component above the stairs. The axis of the profile replacing the coping should be 10 cm from the inner
pool wall (diagram above). Make sure that the dimensions "D" are identical so that the profile correctly overlaps the coping.
Use the profile replacing the coping as a template to drill two holes (Ø10 mm) in the coping at each end. Attach the profile
to the coping by inserting a retaining staple at either end as illustrated.
On the deck, mark the position of the 3 pegs with bushings
that will hold the step tension straps according to the
diagram above.
Drill three holes (Ø12 mm, depth 70 mm) and drive a Ø8
mm peg with bushing into each hole. Attach a step tension
strap to each peg. Tighten the straps to tension the step
element. Adjust the tension on the central strap to avoid
deforming the profile replacing the coping.
OTHERWISE SKIP DIRECTLY TO THE INSTRUCTIONS ON THE NEXT PAGE
D D
50 cm
A A A
milieu de l'escalier
Step midpoint
-
FITTING A SEPARATE ELEMENT
E
Position the Fixkit bungee cords along each edge of the
step piece The distance between Fixkits (E above) should
be between 50 and 70 cm. Each Fixkit is held in position by
a peg with bushing (Ø 6 mm) driven into a hole (Ø 10 mm,
depth 75 mm) drilled 30 cm from the edge of the steps.
Hook a fixkit around each peg.
2006/08 - Indice de révision : G - Code : 0033870
16/34
