- Page 1 RALLONGES POUR ECHELLE AMBOISE 3 ET 4 MARCHES FRAnçAiS: pAgE 1 EngliSH: pAgE 3 NOTICE DE mONTagE 2010/04 - Indice de révision : A - Code : 0031270...

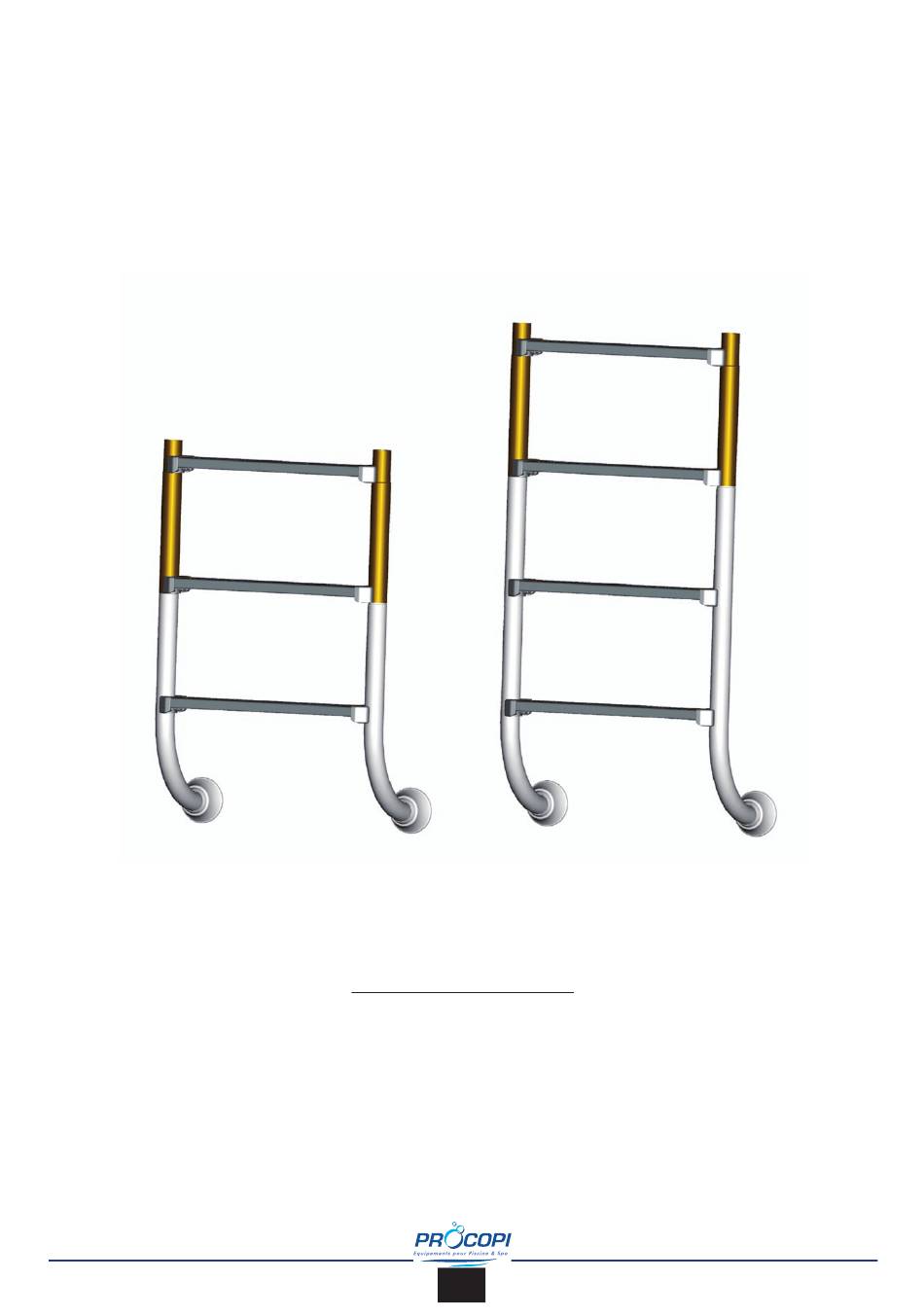

- Page 2 MONTAGE 1 - Insérer les rallonges ( en rouge) entre les crosse et les descentes. 2 - Fixer la marche avec les vis et rondelles fournis. Echelle 2 marches vers 3 marches Echelle 3 marches vers 4 marches N° Désignation Quantité...
- Page 3 EXTENSIONS FOR AMBOISE LADDERS 3 AnD 4 TREADS aSSEmBLY INSTRUCTIONS 2010/04 - Indice de révision : A - Code : 0031270...
- Page 4 ASSEMBLY 1 - Insert the extensions (red) between the curved hand rails and the side rails. 2 - Attach the tread using the screws and washers provided. Ladder, 2 treads to 3 treads Ladder, 3 treads to 4 treads Description Quantity Amboise curved hand rail, RH Amboise curved hand rail, LH...
