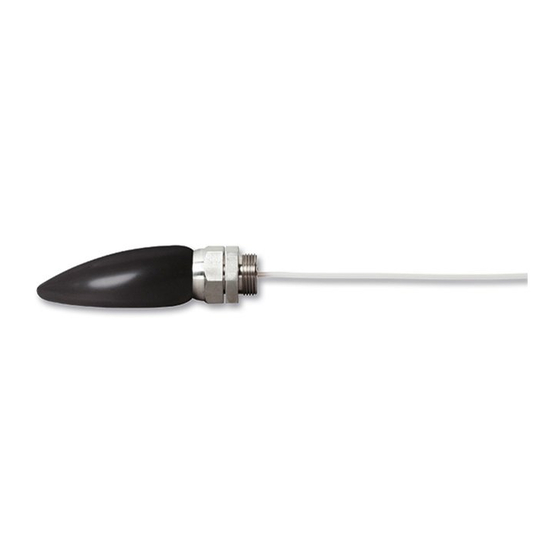

Release the conical nut slightly and adjust the bubble pot horizontally (both
axis) and with the direction of the flow.
Tighten the conical nut again.

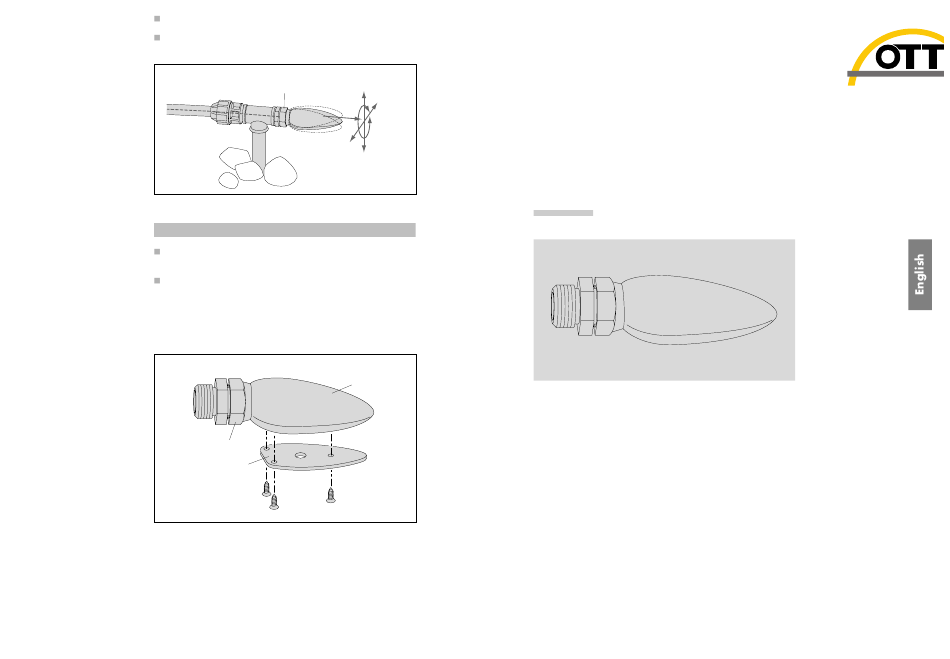

Picture 4: Adjust bubble pot
max. tolerance of adjustment
is +/- 5°!
Maintenance
Regularly check the bubble pot – at least once a year – if there is any debris
and if it is still correctly aligned. If there are lots of particles or weeds in the
water you have to check more frequently.
For cleaning you have to remove the three Phillips screws and the base plate at
the bottom of the bubble pot. For this the bubble pot can, but must not necessa-
rily be detached. Perhaps you have to slightly release the conical nut and to
turn the basin by 180°. After cleaning the bubble pot has to be adjusted again
to the direction of the flow. Attention: the bubble in pressure must be built up
again; see user instruction for Nimbus!
Abb. 5: Cleaning of bubble pot
If the bubble pot is completely detached for
cleaning the bubble tube must be cut by 1
cm before it is connected again.
Dokumentnummer
55.510.048.B.E 03-0411
Subject to technical changes!
Conical nut
Adjustment range: ±15 °
Basin
Conical nut
Base plate
Phillips
screws
