Operating Instructions

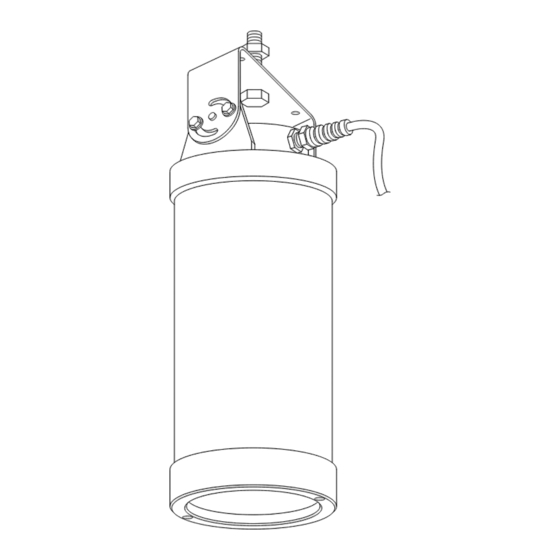

Radar Sensor
Kalesto

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kalesto and is the answer not in the manual?

Questions and answers

Related Manuals for OTT Kalesto

Summary of Contents for OTT Kalesto

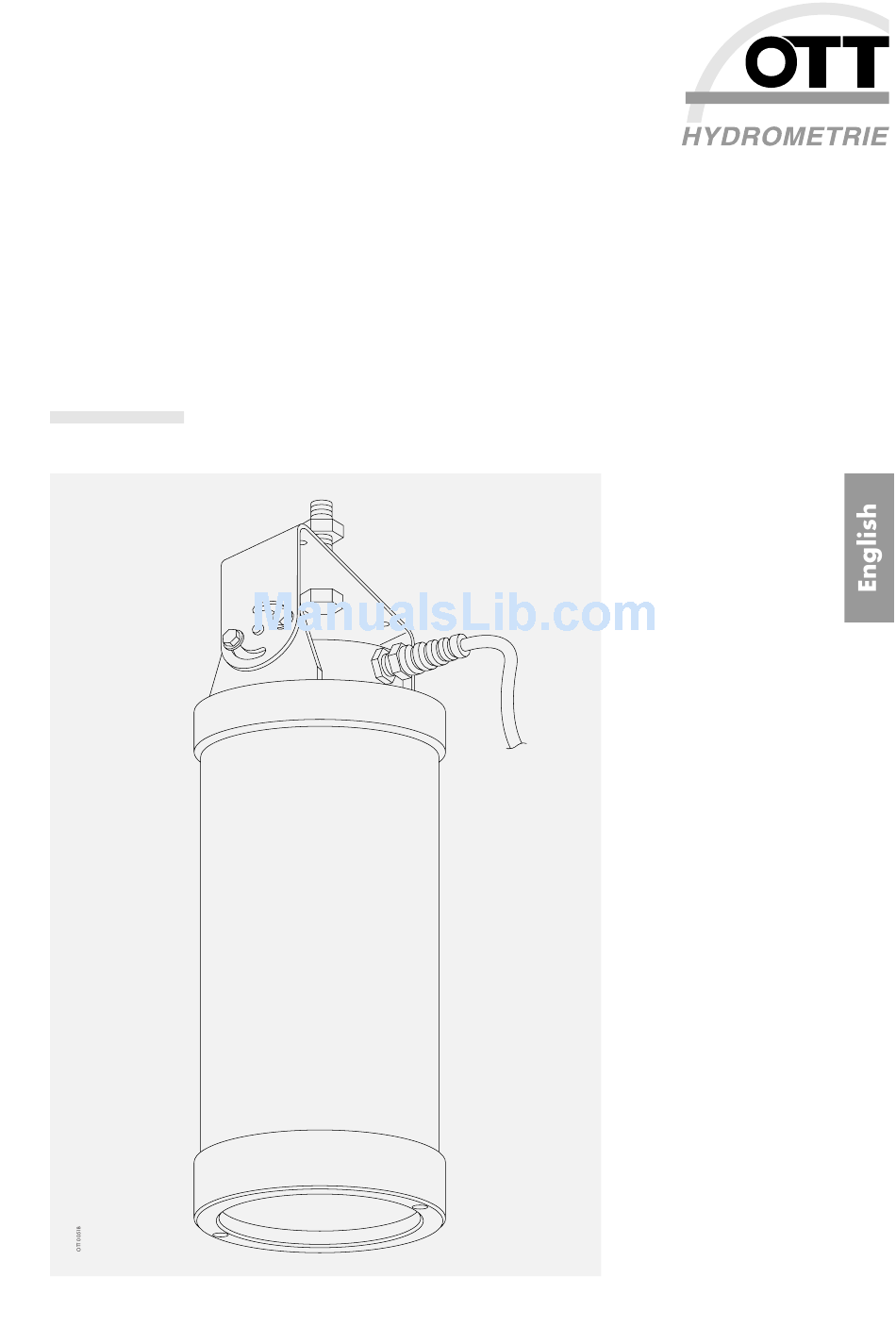

  • Page 1 Operating Instructions Radar Sensor Kalesto...

  • Page 2: Connection Diagram

    Technical Data (use commercially-available distributor socket) Twisted pair cable up to max. 1,000 m OTT-LOG connection diagram Kalesto input card 1 RS 485 A 1 2 3 4 5 6 2 RS 485 B 3 n.c. 4 n.c.
  • Page 3 Opening the connection section on the Kalesto radar sensor (captive screws). Connecting the twisted pair cable to the radar sensor. Ground RS 485 A RS 485 B +12 V DC...
  • Page 4 = Sets the decimal point position within the measured value POINT POS The Kalesto radar sensor measures the distance from the bottom of its housing* to the water surface: the maximum measured value is 30.00 m. The measurement result for distance or level measurement is scaled by entering a value in the 0 % and 100 % boxes in field 15 of the OTT-LOG operating matrix.
  • Page 5 16 and 18. – For a resolution in 0.01 ft: Use 98.43 instead of 30.00 (30 m = 98.43 ft) * For distance measurements: possible using OTT-LOG version V2.16 and later versions (100 % value, 0 % value: max. ±29.999 m)
  • Page 6 Special input card for OTT-LOG necessary: 55.505.138.3.2 Min. surface velocity v = 1 m/s The actual velocity of the river is larger than the measured velocity of the KALESTO: v = v / cos a Kalesto For this reason it is necessary to enter a correction value in the 100 % field of the matrix.
  • Page 7 Angle 100 % value (field 10) approx. approx. 30 ° 34.64 1.00 m 10.5 m 35 ° 36.62 1.10 m 12.0 m 40 ° 39.16 1.25 m 13.5 m 45 ° 42.43 1.40 m 15.0 m 50 ° 46.67 1.50 m 16.0 m 55 °...

  • Page 8: Technical Data

    Temperature range –40 to +85 °C under reference conditions A separate voltage supply is required for the Kalesto radar sensor if cables exceed a certain length (voltage reduction in twisted pair cable): Wire cross-section Max. cable length for voltage supply...
