Jabra Go 6470 Quick Start Manual

Connect with my aastra open phone 63 or 65
Hide thumbs Also See for Go 6470:
1
2
3

Advertisement

Table of Contents

24/04/2021 11:15
How do I connect my headset with my Aastra Open Phone 63
or 65?

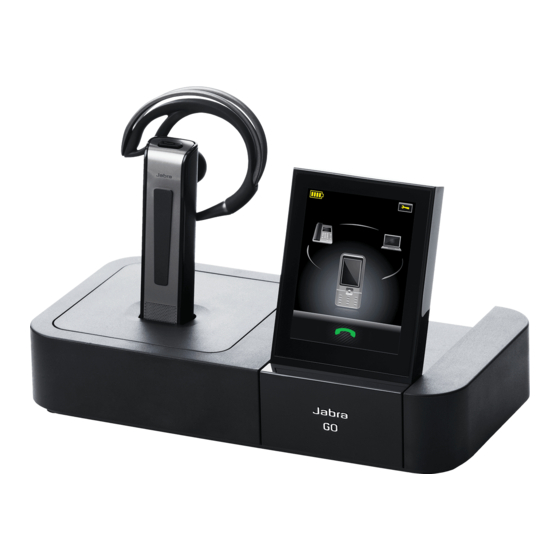

Jabra Go 6470

Requirements:

Jabra 8800-00-93
AZ adapter (from Aastra/DeTeWe)
DeTeWe Open Phone 63 or 65
OpenCom 100 from software 5.2
OpenCom 1000 from software 3.2

To connect the headset please follow these steps:

1. Plug one end of the RJ10 to RJ10 4-pin cable to the socket marked with
the phone symbol on the Jabra device base.
2. Plug the other end of that cable into the headset port of the AZ
adapter.
3. Plug one end of the 8-pin RJ45 connector of the Jabra 8800-00-93 to
the AUX port on the Jabra device base.
4. Plug the hollow socket connector to the socket marked with the bell
symbol on the AZ adapter.
5. Plug the 6-pin western connector into the second receiver socket on the
AZ adapter.
6. Follow the instructions on the Jabra device touchscreen:
7. Select Phone setting.
8. Select Connect to a desk phone.
9. Select Manual.
/supportpages/jabra-go-6470/6470-15-207-505/faq/0fa487fe-1a9e-469d-9af4-
Page 1 of 3
071f5c9997c6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Go 6470 and is the answer not in the manual?

Questions and answers

Related Manuals for Jabra Go 6470

Summary of Contents for Jabra Go 6470

  • Page 1 2. Plug the other end of that cable into the headset port of the AZ adapter. 3. Plug one end of the 8-pin RJ45 connector of the Jabra 8800-00-93 to the AUX port on the Jabra device base. 4. Plug the hollow socket connector to the socket marked with the bell symbol on the AZ adapter.
  • Page 2 12. We recommend setting the microphone volume to 7 out of 13. Guided setup: As a part of the installation, you can dial into your local Jabra Setup server which will configure the audio path. Please follow the instructions shown on the display.
  • Page 3 24/04/2021 11:15 Activate the “Remote Headset” function on your Open Phone device. Enter the following key combination on your Open Phone 63/65: Menu>Settings>Peripherals>Additional device selection>Remote Headset. /supportpages/jabra-go-6470/6470-15-207-505/faq/0fa487fe-1a9e-469d-9af4- Page 3 of 3 071f5c9997c6...
